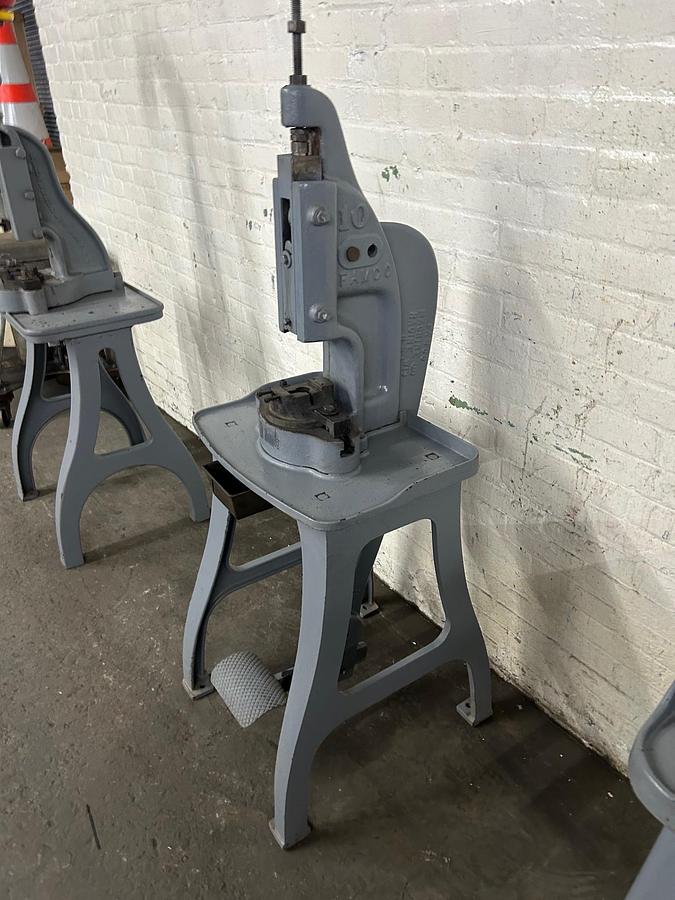

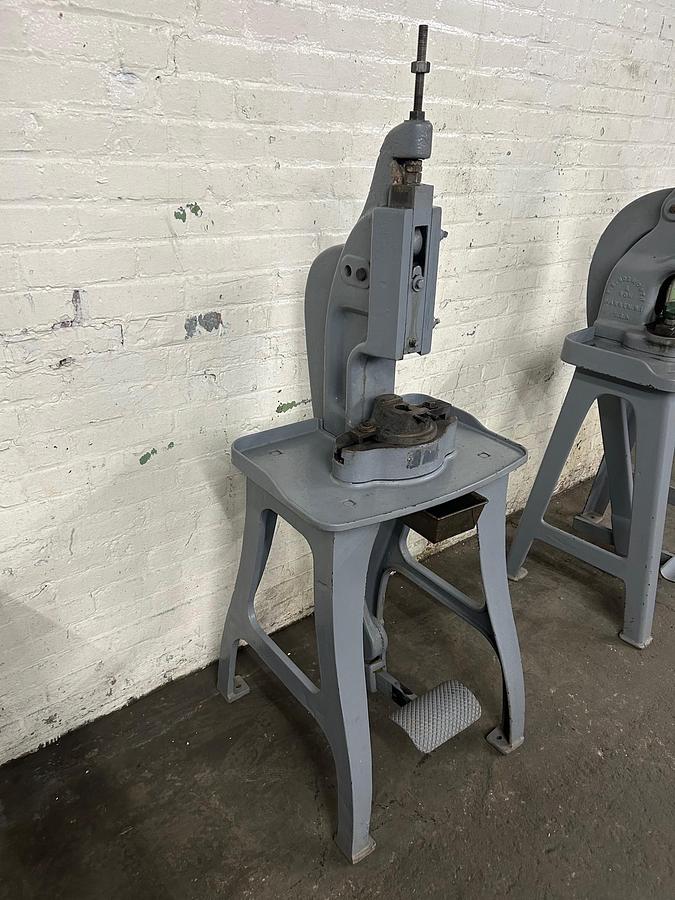

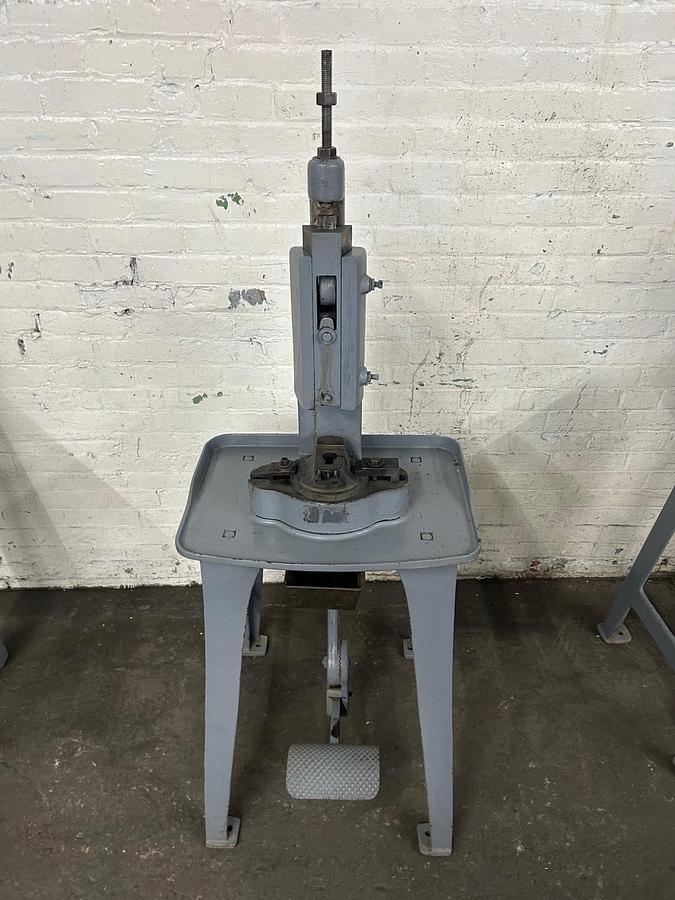

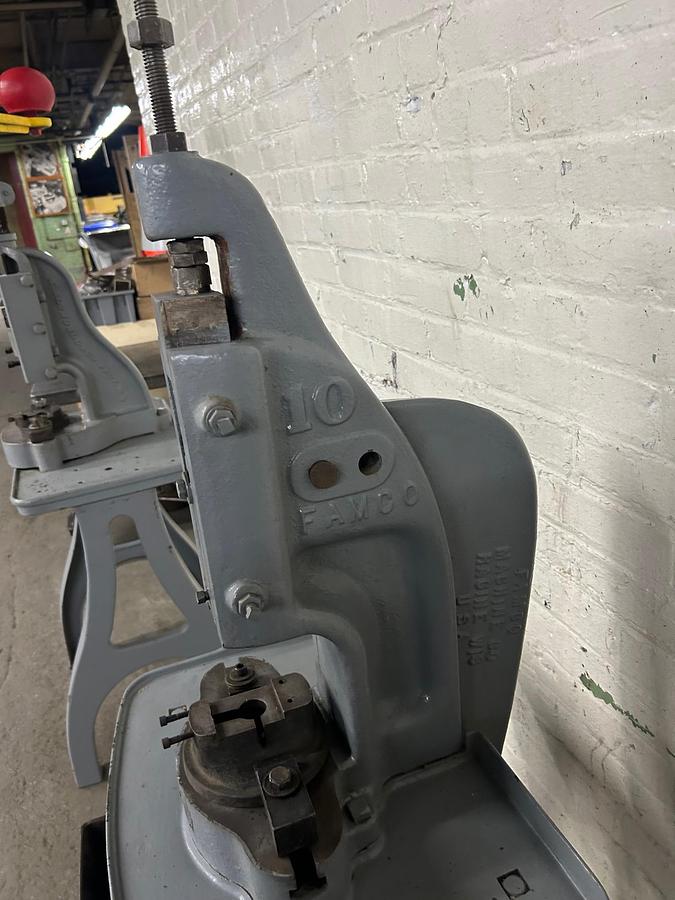

Famco #10 Metalworking, Forming & Stamping 2.5 Ton Punch Press

Famco #10 Metalworking, Forming & Stamping 2.5 Ton Punch Press
Location:Pawtucket, RI
Description
Equipped With:
- Adjustable stroke
- Cast Iron Base
- Foot operated Pedal
- Estimated weight 450 Lbs
About the section ~ Famco bought out Royersford Excelsior, current day manufacturer. The machine is capable of many custom applications with the correct die / punch / trimming set including stamping, trimming, custom Mechanical Metalworking fabrication applications for the tool room . blacksmith, Jeweler and artisan home shop.
Recently taken from service out of a local tool and die shop Providence R.I. Now located at Gold Machinery 136 Newell ave Pawtucket 02860. The machine has been inspected / tested here at our facility and is offered in excellent condition!
Tooling, Die dish and Shank holders are available at additional cost please enquire with your specific needs
Including 5/8”Shank holder Priced @ $100 each
½” shank Shank holder Priced @ $100 each
3/8” shank Shank holder Priced @ $100 each
Die dish Priced @ $150 each
We will palatalize and strap and cover Priced @ $100.
Shipping is additional or on your shipping account.
Specifications
| Manufacturer | Famco |
| Model | #10 |
| Condition | Used |
| Stock Number | 779504 |
| Depth of throat from center of ram | 3" |
| Distance ram to base | 6" |
| Maximum stroke | 2" |
| Bore in ram | 13/16" diameter |
| Size of table | 22" x 16" |
| Capacity | 1/2" |
| Approximate pressure | 2-1/2 tons |
| Overall dimensions | 22" x 24" x 60" high |
| Estimated weight | 360 lbs. |
