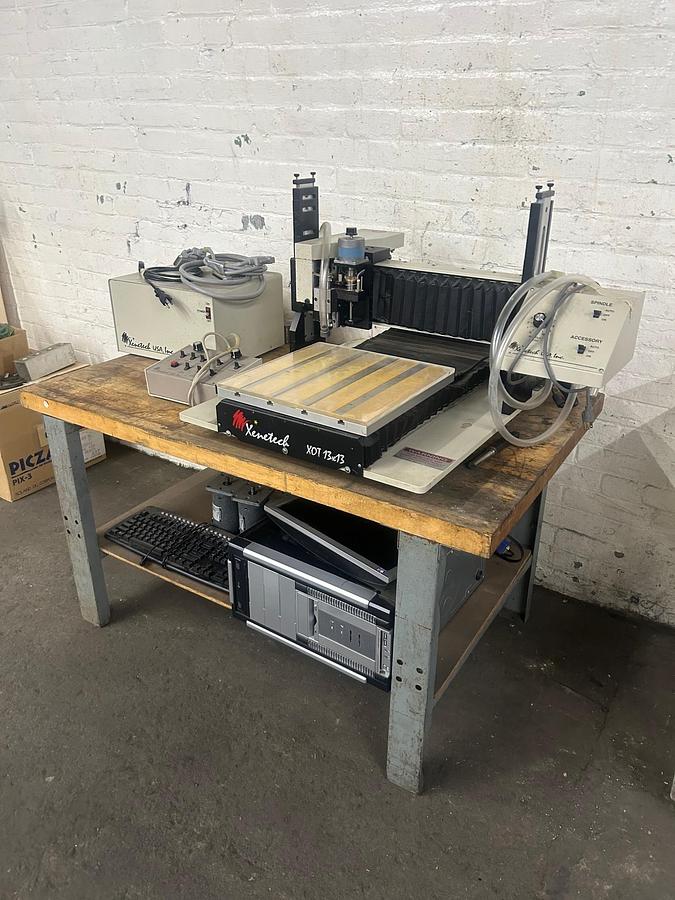

Xenetech Rotary Engraving System 16" x 25" Engraving Area, Complete

• XENETECH ROTARY ENGRAVING SYSTEM 16" X 25" ENGRAVING AREA
• CLEARANCE 7.188" UP TO 10 IPS ENGRAVING SPEED LEAD SCREW PITCH (X+Y) 1/2" LEAD SCREW PITCH (Z) 1/2" SERIAL NUMBER 1602028712VOLTAGE 110 VAC,
• WITH ATTACHED GROSCHOPP SERVO MOTOR PM8014 P/N 911-60-1620-3 90VDC 2.54 AMP 185 WATT 5000 RPM S/N 321652 UL FILE E 74627,

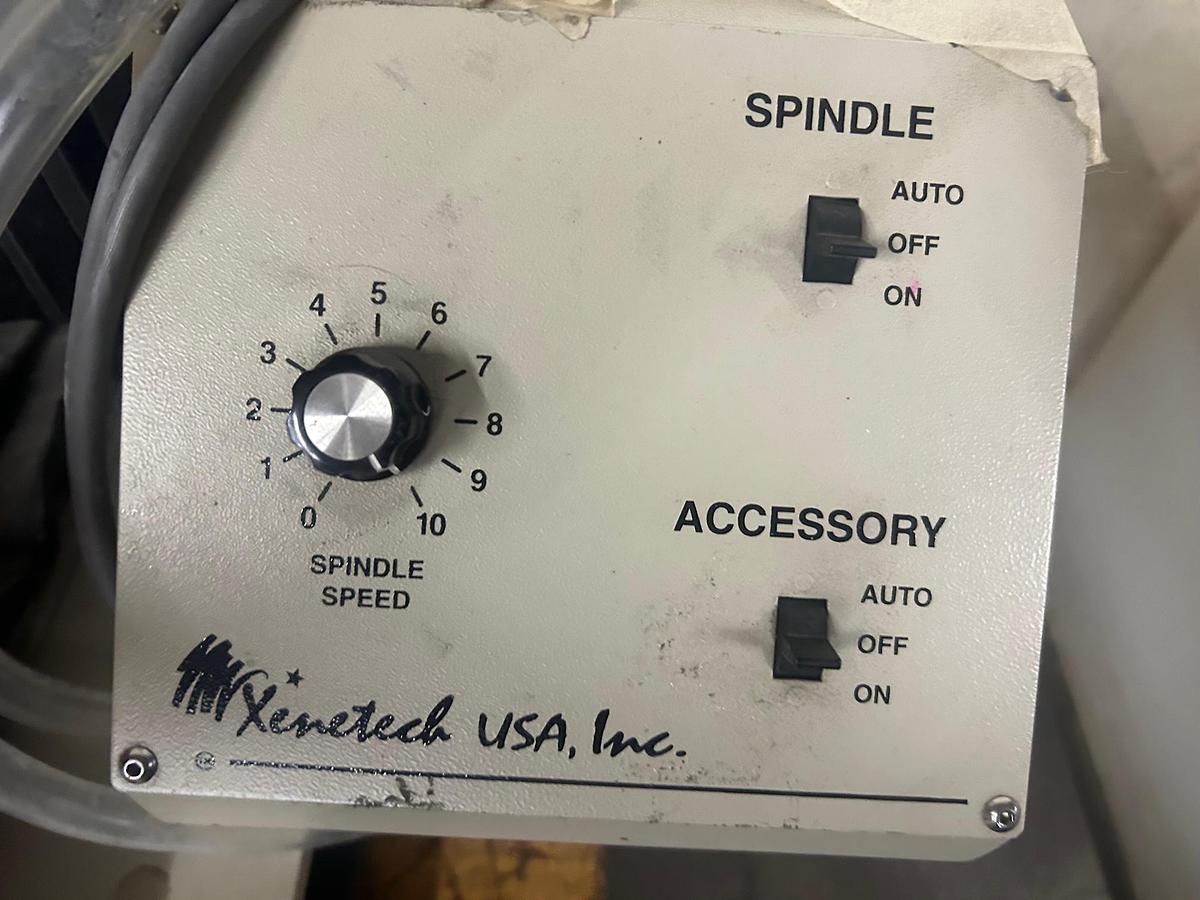

• ATTACHED PART XENETECH SPINDLE MOTOR SPEED CONTROL FANUC BOARD MSC0230S-12C SERIAL XT100,

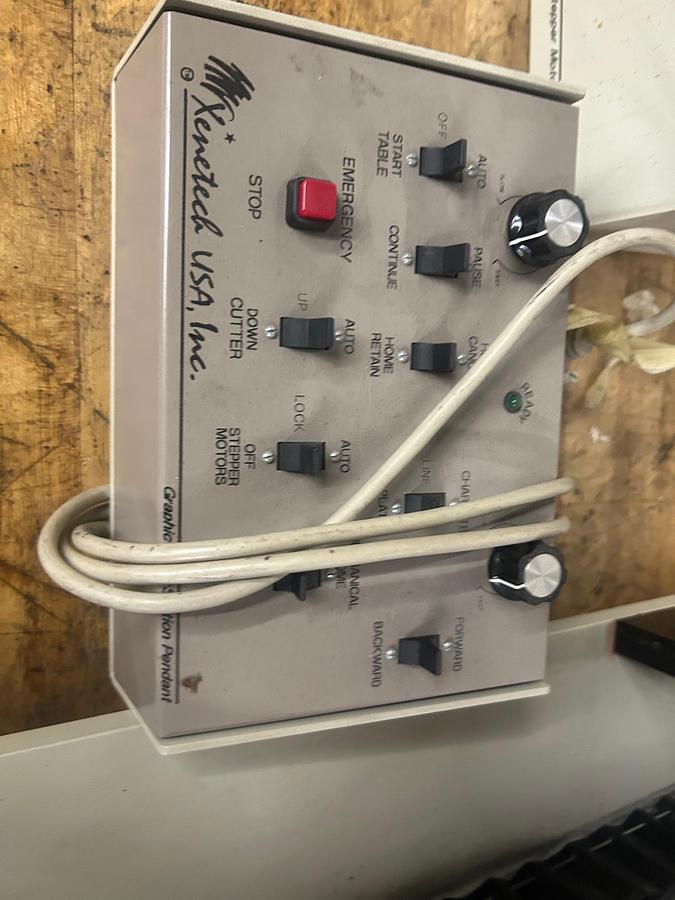

• ATTACHED PART GRAPHIC WORKSTATION PENDANT 2-02766-12 XT100,

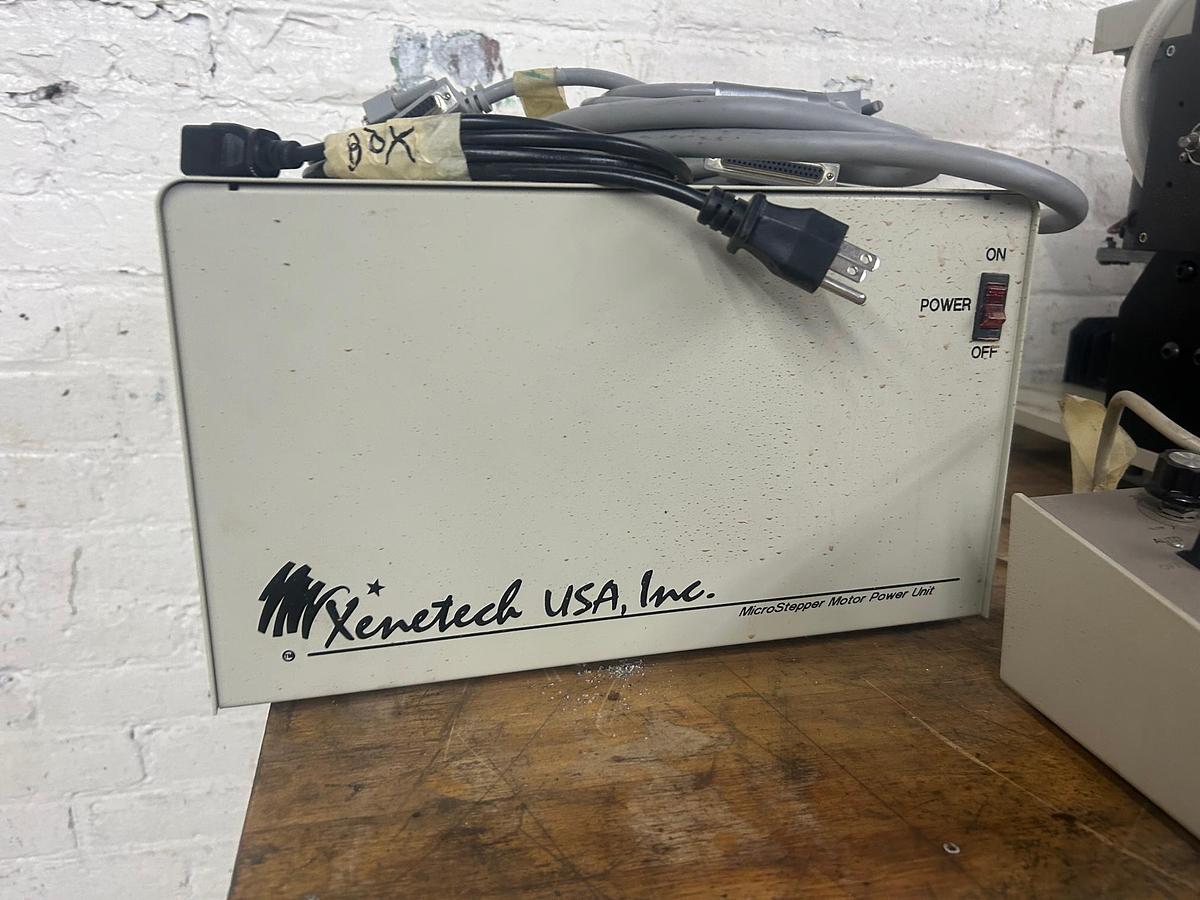

• ATTACHED PART MICRO STEPPER MOTOR POWER UNIT 7-02766-12 XT100 WITH 110-240 VAC 50/60HZ 2.5A,
• WITH U.S. VALVE MOTOR SCB 030-1 (ENGR) SERIAL NUMBER KE115487 POWER INPUT 0.25 KW RPM 3485 VOLTAGE 115/208-220 AMPS 4.0/2.0

Equipped With:

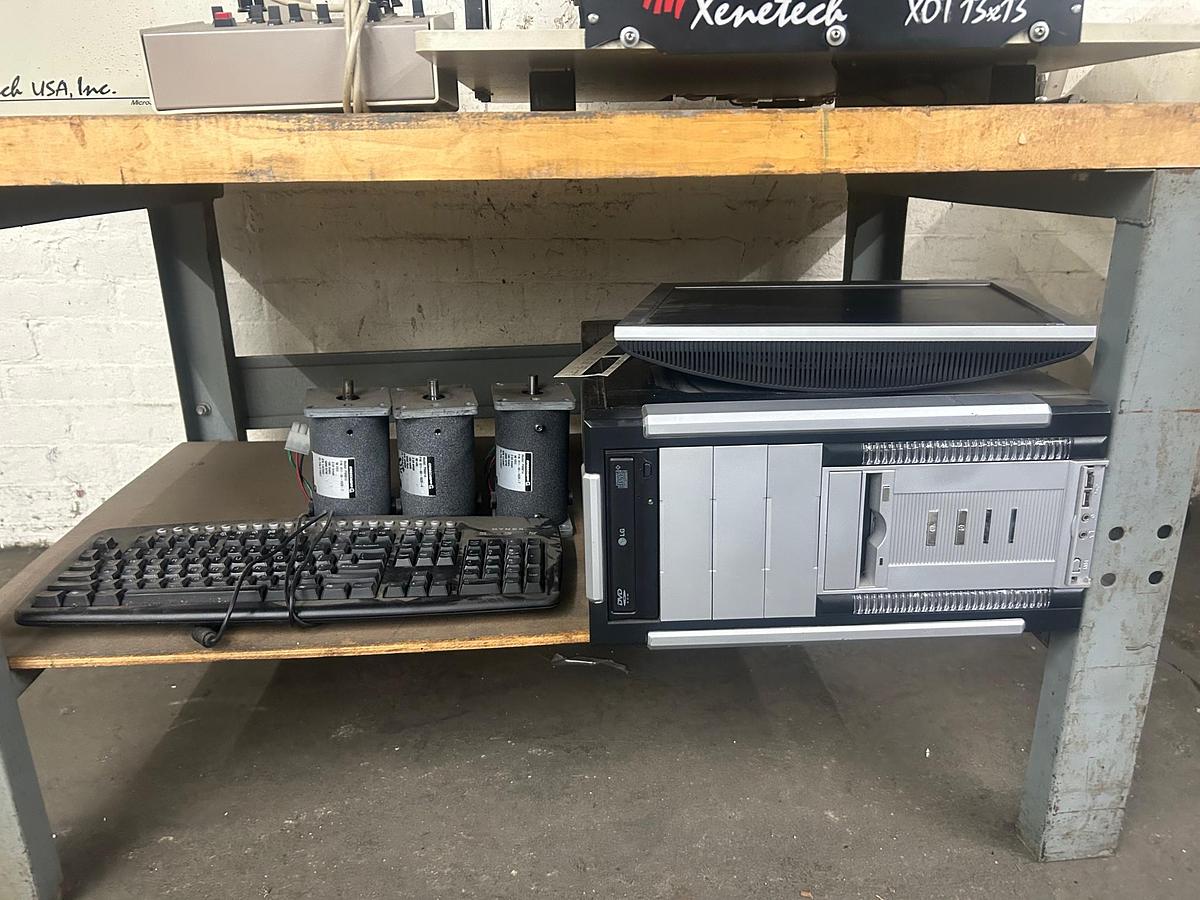

• 3 New Additional Motors
• CPU/Monitor/Keyboard

About section:

The Xenetech XOT 1625 rotary engraving system has a 16" x 25" (406.4mm x 635mm) engraving area, according to Boggs Equipment. This area is suitable for engraving various materials including metals, plastics, wood, and glass. The system also boasts a high precision and rigidity, with a maximum material clearance of 7.188" (182.5mm). It includes Xenetech's professional engraving software, XGW-32, and 40 engraving fonts.

Note Table can be included at additional cost please inquire
