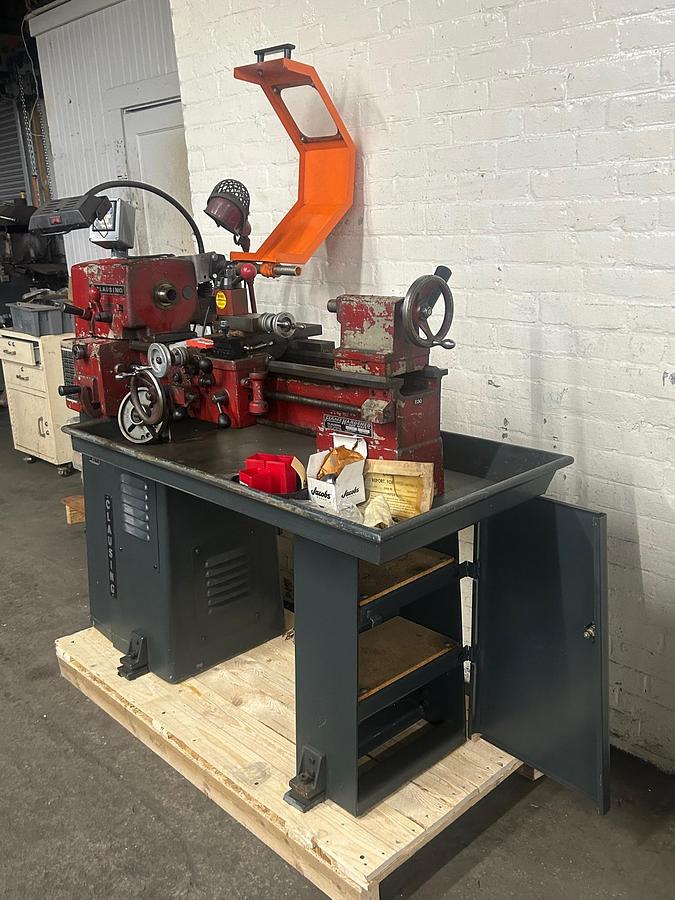

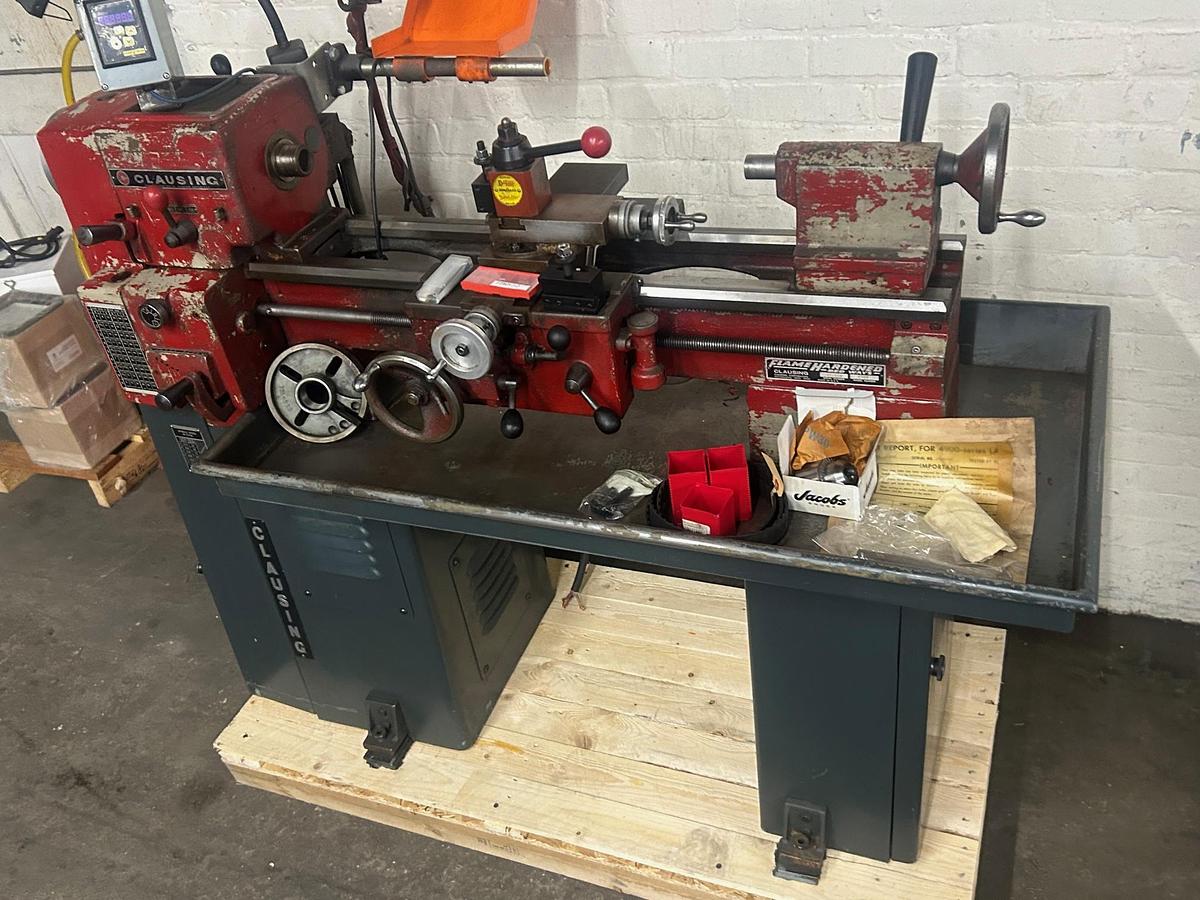

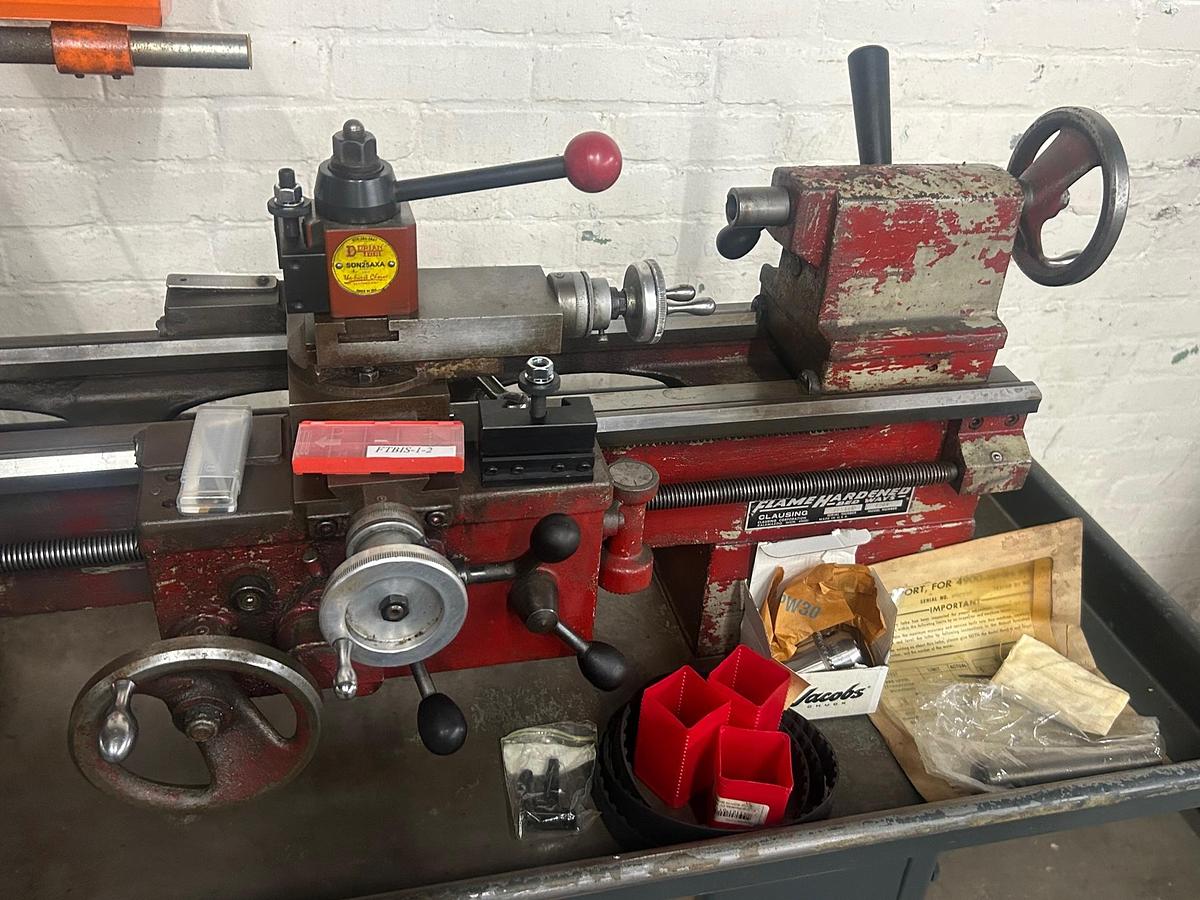

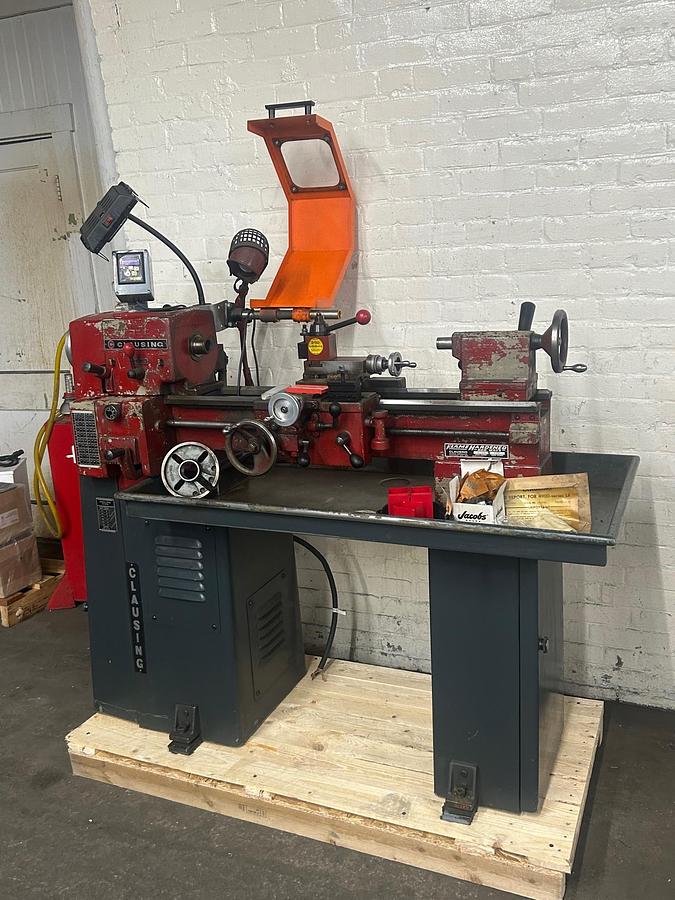

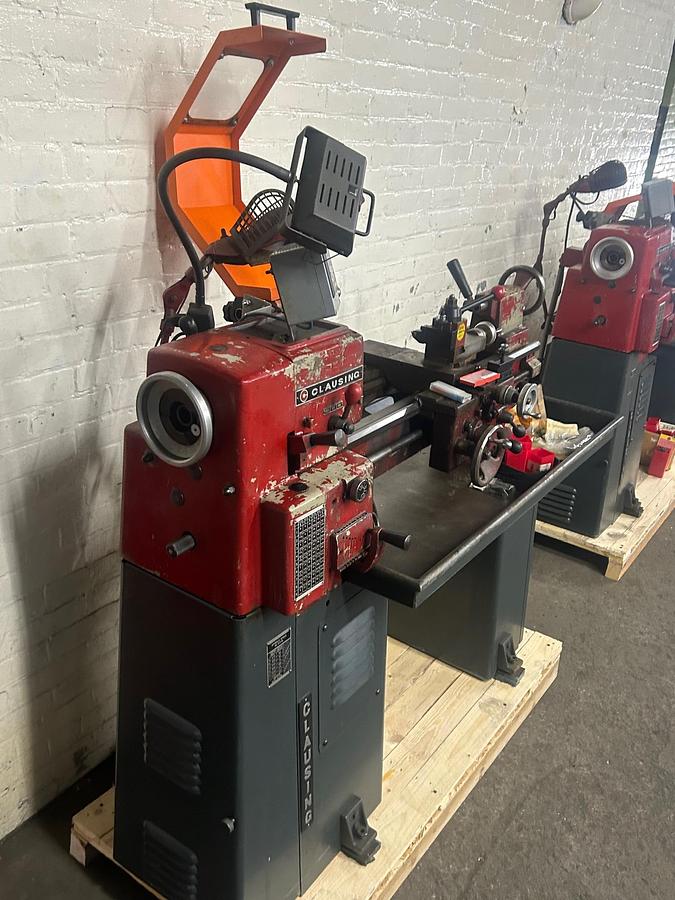

Clausing Model 4904 10" x 24" Precision Toolroom Lathe with Cabinet Stand
Clausing Model 4904 10" x 24" Precision Toolroom Lathe with Cabinet Stand
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description
EQUIPPED WITH:
- Face Plate

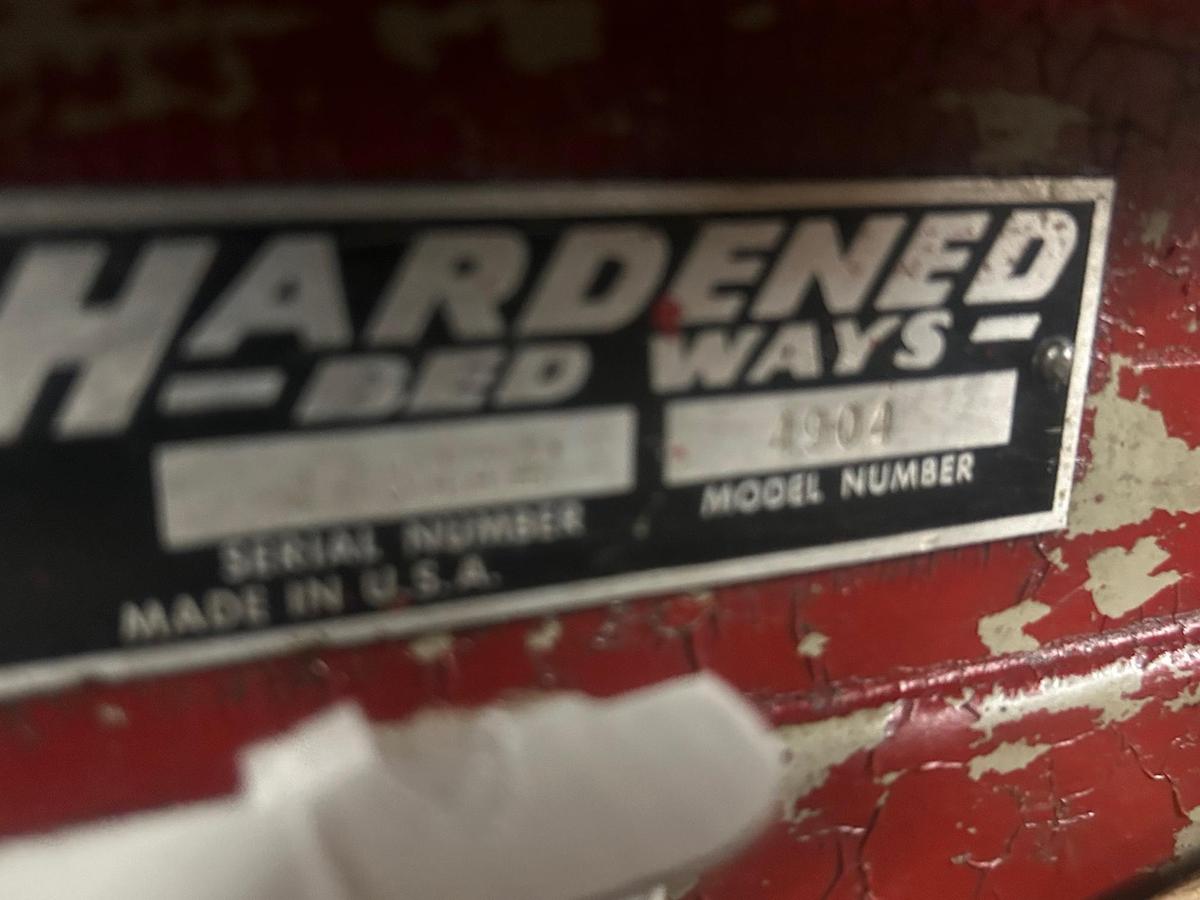

- Flame hardened bed

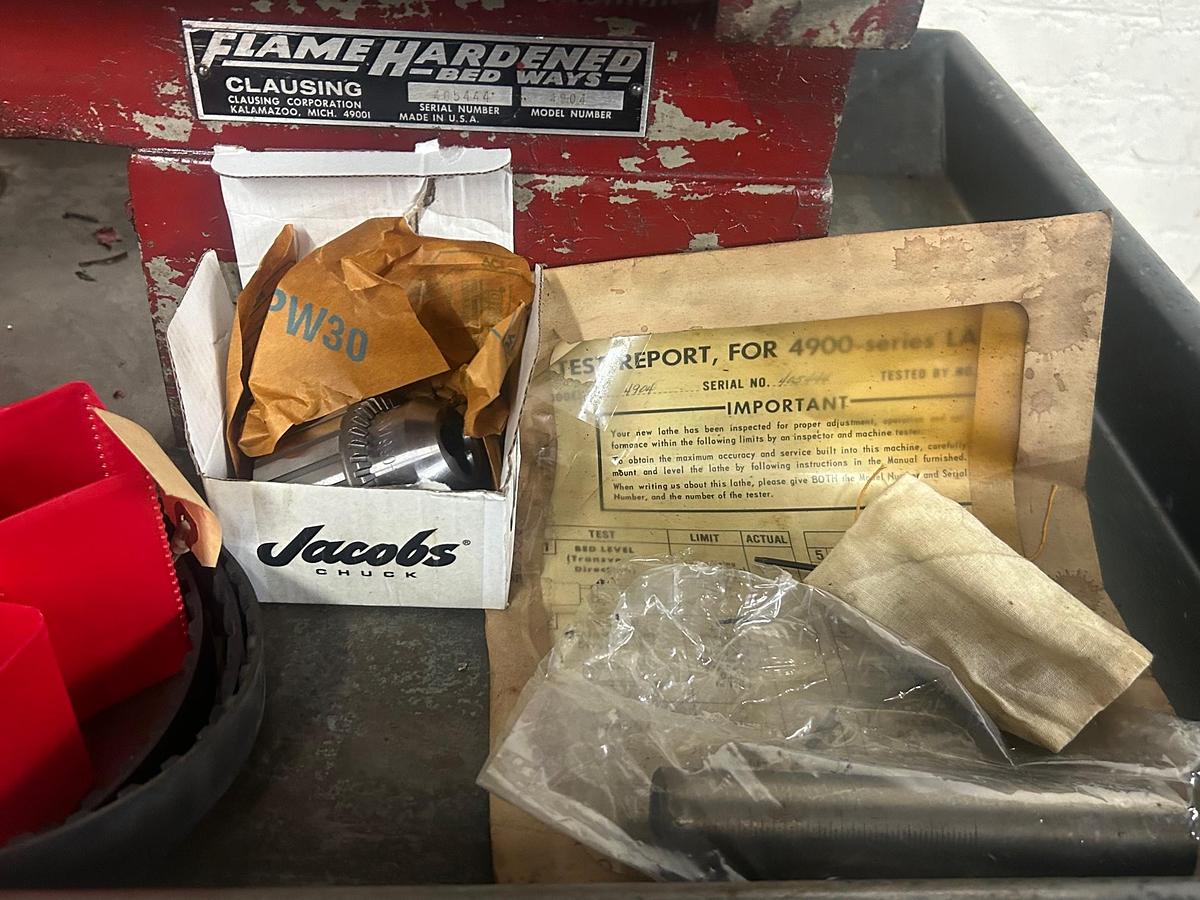

- Jacobs drill chuck

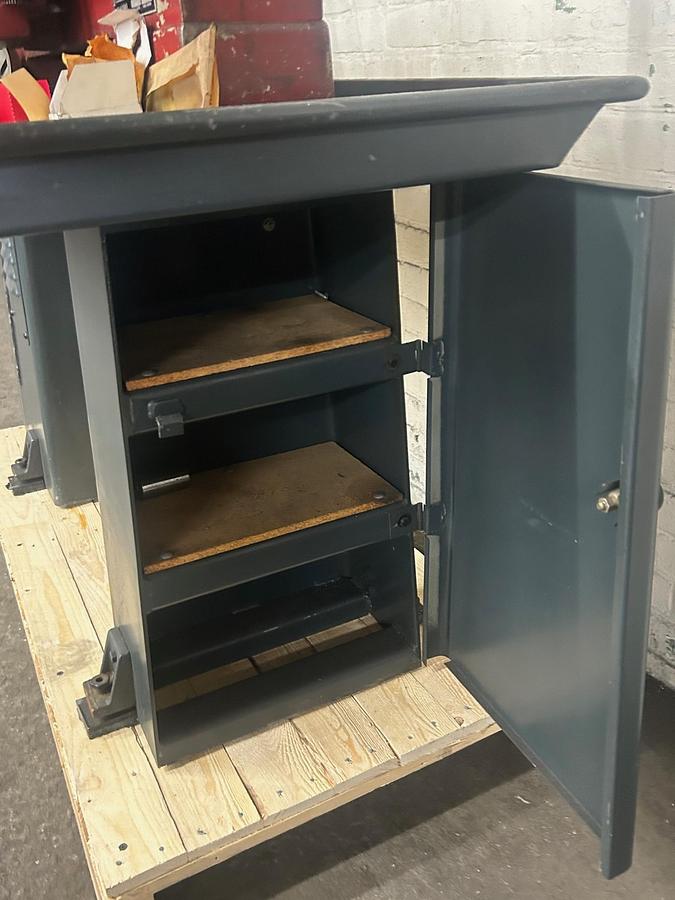

- Cabinet stand

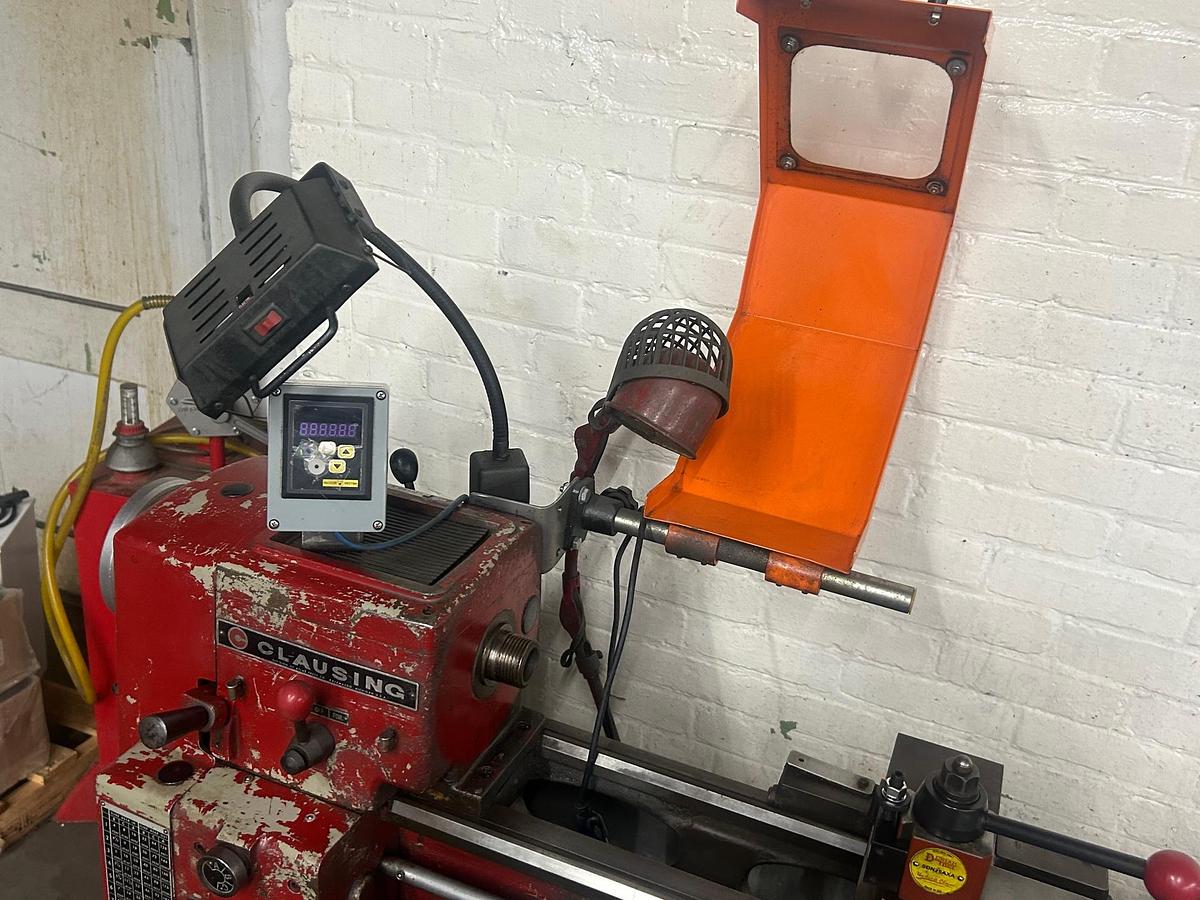

- DRO
- Swing down guard
- Worklight
Specifications
| Manufacturer | Clausing |
| Model | 4904 |
| Condition | Used |
| Stock Number | 779587 |
| Voltage | 220V/3PH/60HZ |
| Swing over bed and saddle wings | 10-/18" |
| Swing over cross slide | 5-1/2" |
| Hole through spindle | 1-1/16" |
| Collet capacity | 3/4" |
| Distance between centers | 24" |
| (12) spindle speeds | 52, 62, 75, 125, 174, 237, 370, 450, 540, 900, 1250, 1700 RPM |

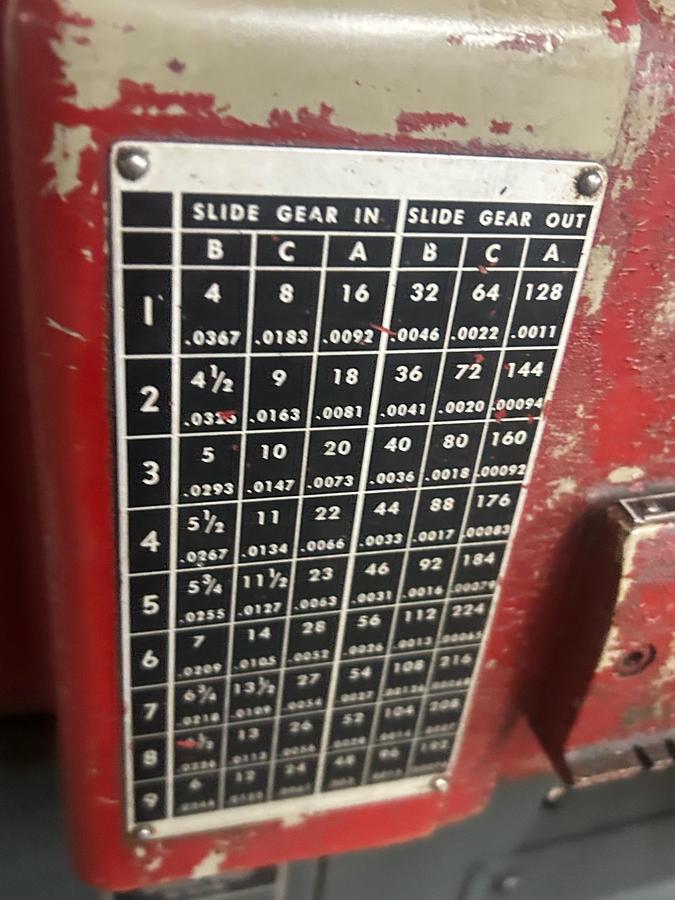

| Threads | 4 - 224 TPI |
| Longitudinal feed range | .00065" - .0367" (54) |
| Cross feed range | .00016" - .00917" (54) |
| Lead screw | 3/4" dia. 8 ACNE TPI |
| Spindle nose | 1-3/4" - 8 |
| Spindle nose internal taper | # 4NT |
| Spindle center | #2MT |
| Tail stock center | #2MT |
| Motor | 2HP |
| Overall dimensions | 60" x 28-1/2" x 46" high |
| Estimated weight | 860 Lbs |
