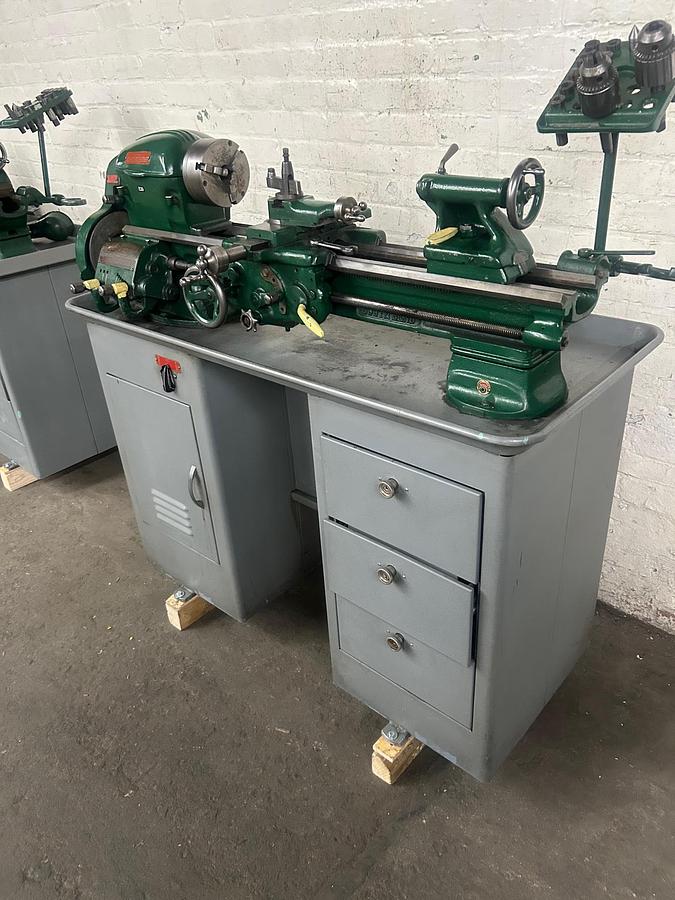

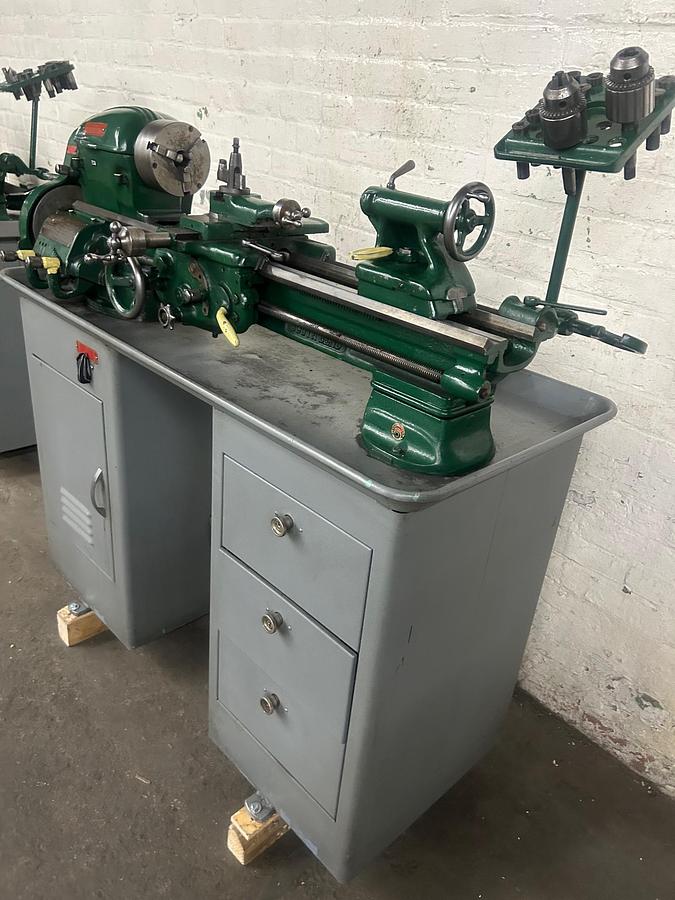

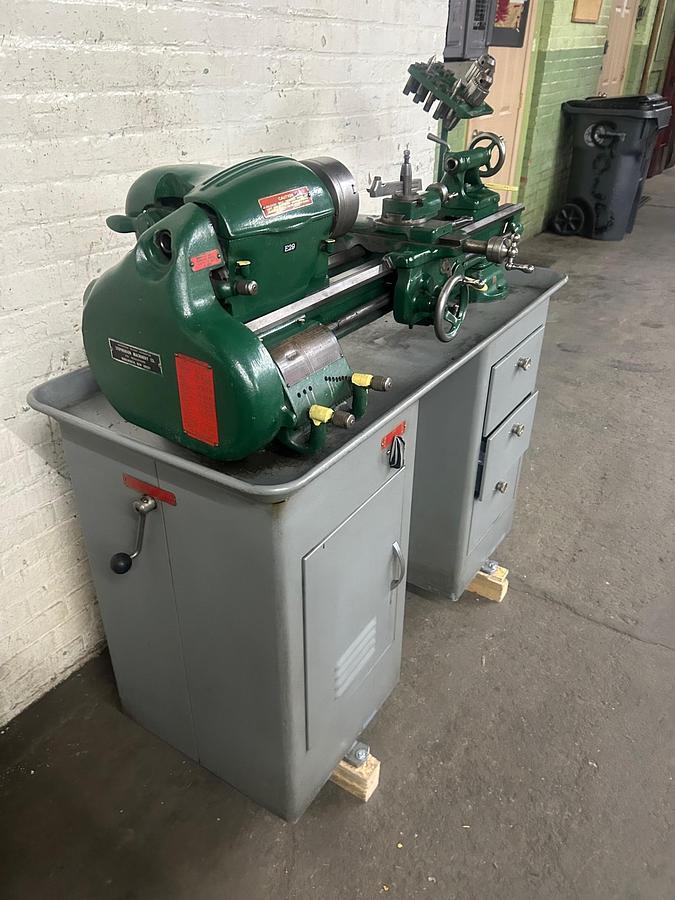

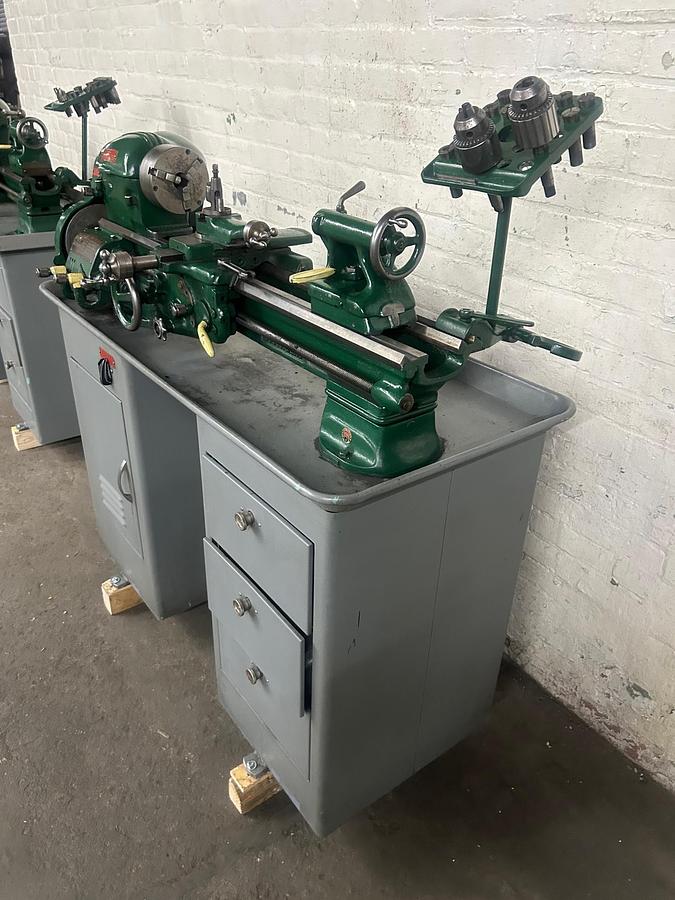

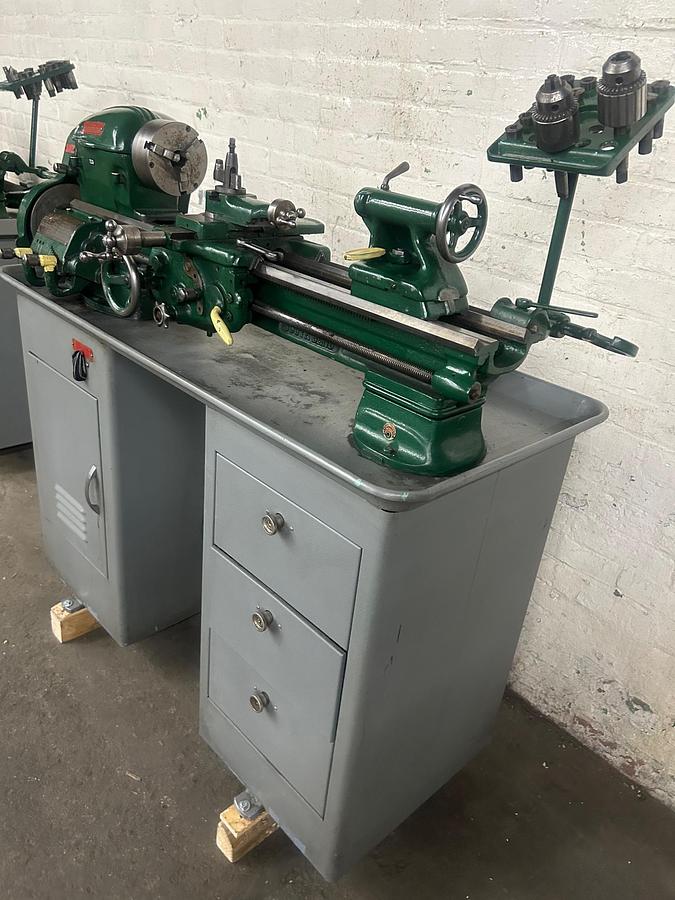

South Bend 10" x 22" 10K Precision Metal Cabinet Lathe, Model CL370ZD
South Bend 10" x 22" 10K Precision Metal Cabinet Lathe, Model CL370ZD
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description

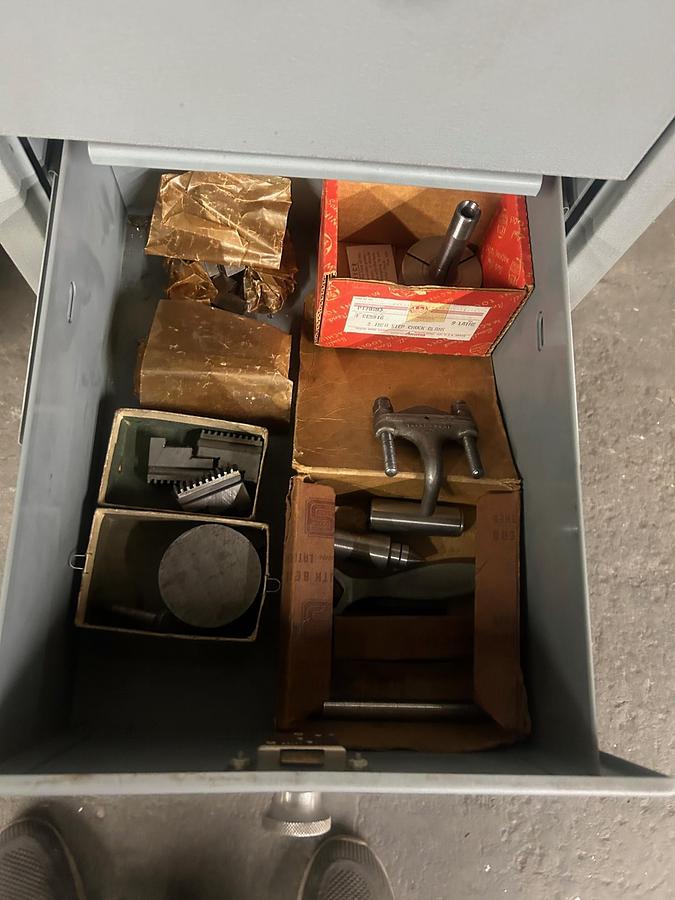

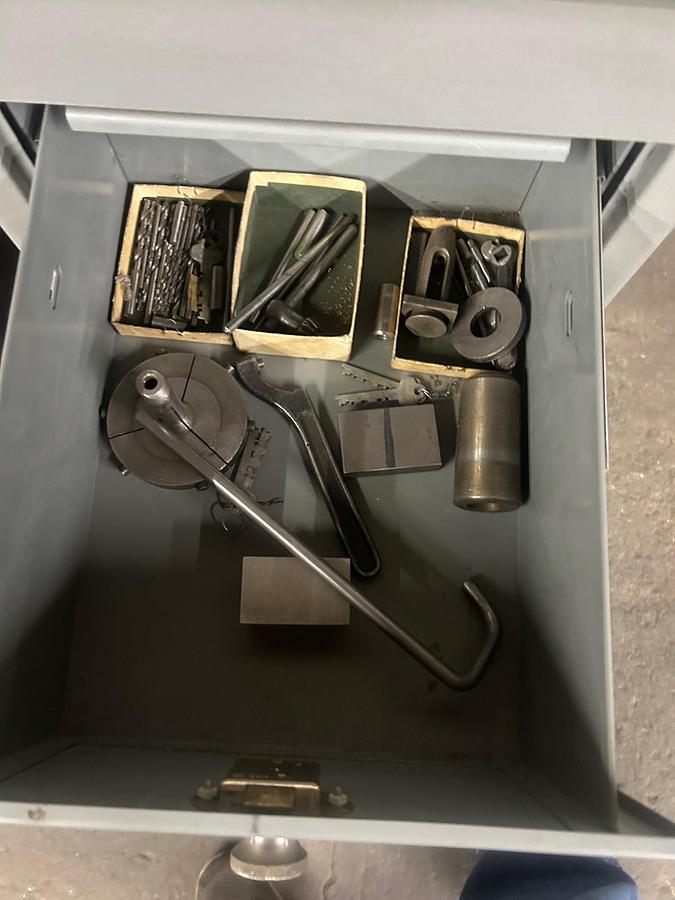

EQUIPPED WITH:
- Cabinet stand

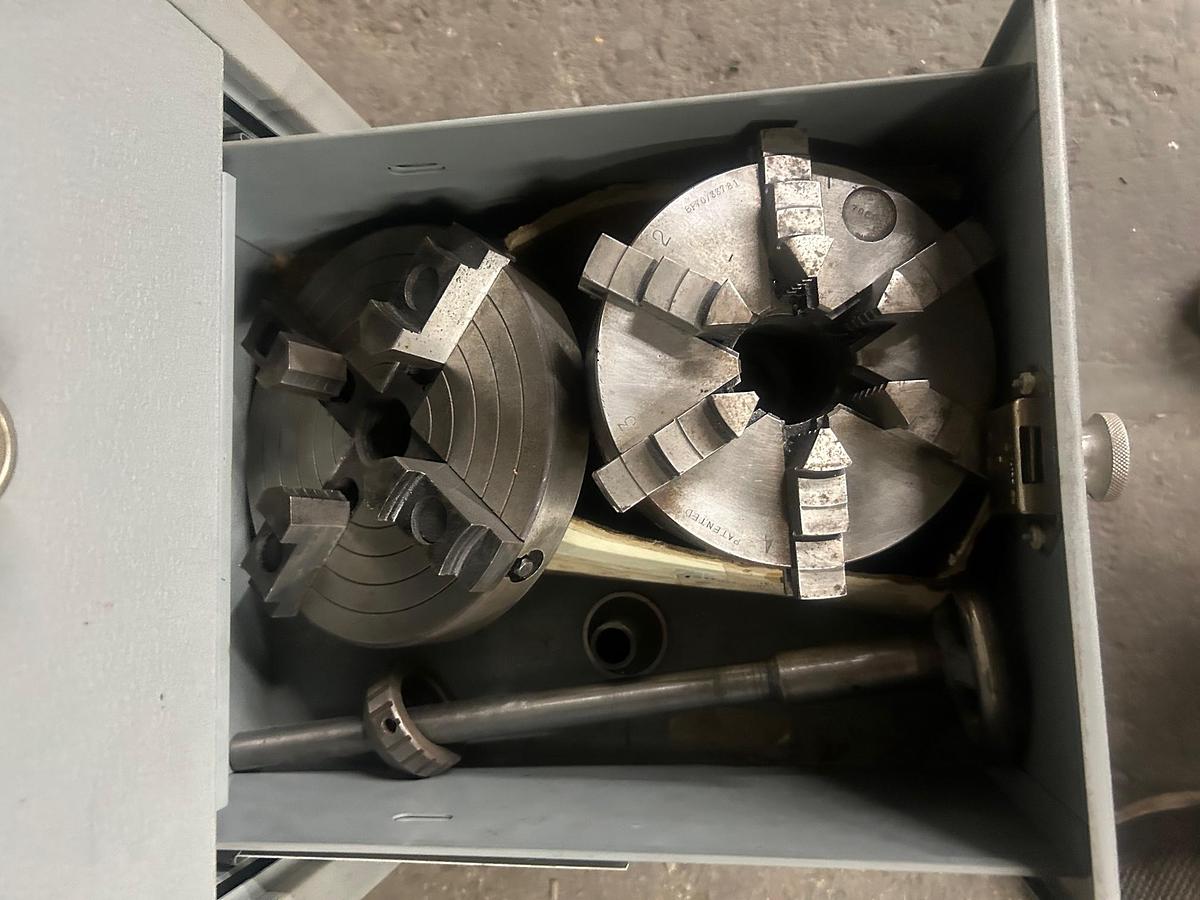

- 3-jaw chuck
- 6 -jaw chuck
- Assorted Collet
- Tool Post Ring and Rocker
- Collet Rack
- 5C Nose cone
- Draw Bar
- assorted cutting tools
- Jacobs drill chucks
- Dead centers
Specifications
| Manufacturer | South Bend |
| Model | CL370ZD |
| Condition | Used |
| Stock Number | 779586 |
| Voltage | 220V / 3PH / 60HZ |
| Swing over bed | 10" |
| Swing over saddle wings | 9-15/16" |
| Swing over cross slide | 6-1/4" |
| Headstock/tailstock centers | #2 MT |
| Distance between centers | 22" |
| Cross slide travel | 5-7/8" |
| Spindle speeds | 78.50 - 1365 RPM(12) |
| Hole through spindle | 27/32" |
| Maximum collet capacity | 5/8" |
| Spindle nose | 1-1/2" - 8 TPI |

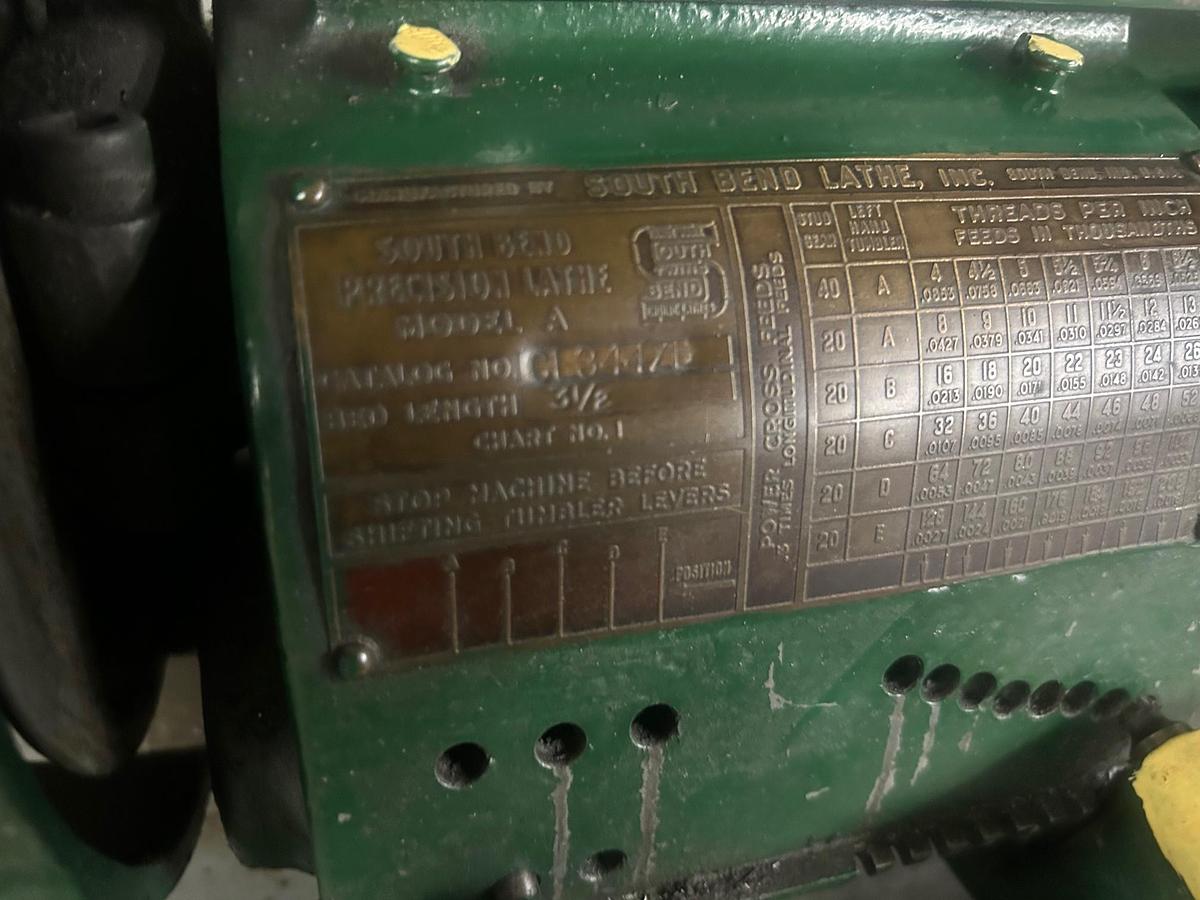

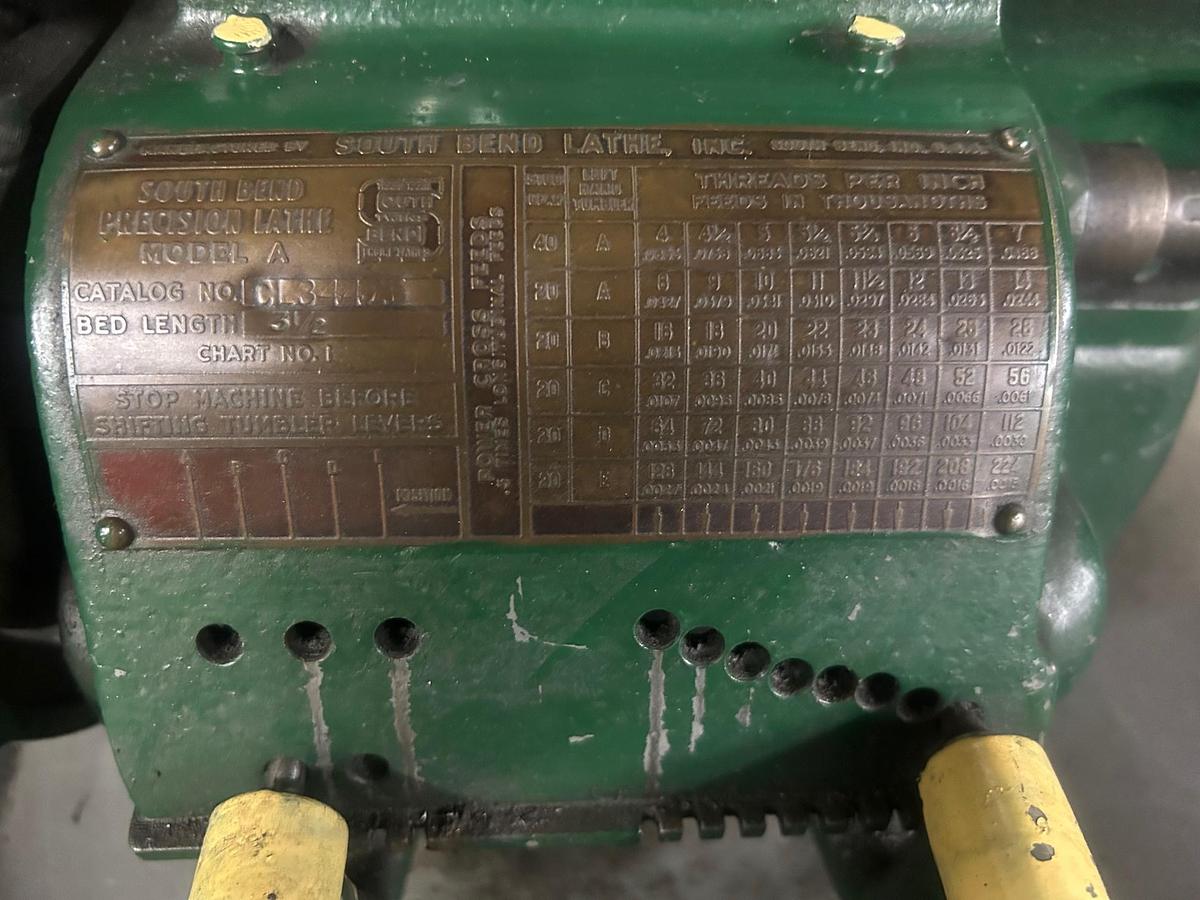

| Thread cutting range | 4 to 224 TPI (48) |
| Longitudinal feeds | .0015" to .0853" IPR(48) |
| Cross feeds | .0004" to .0255" IPR (48) |
| Motor | 2HP |
| Overall dimensions | 49" x 21.5" x 45" high |
| Estimated weight | 700 lbs. |
