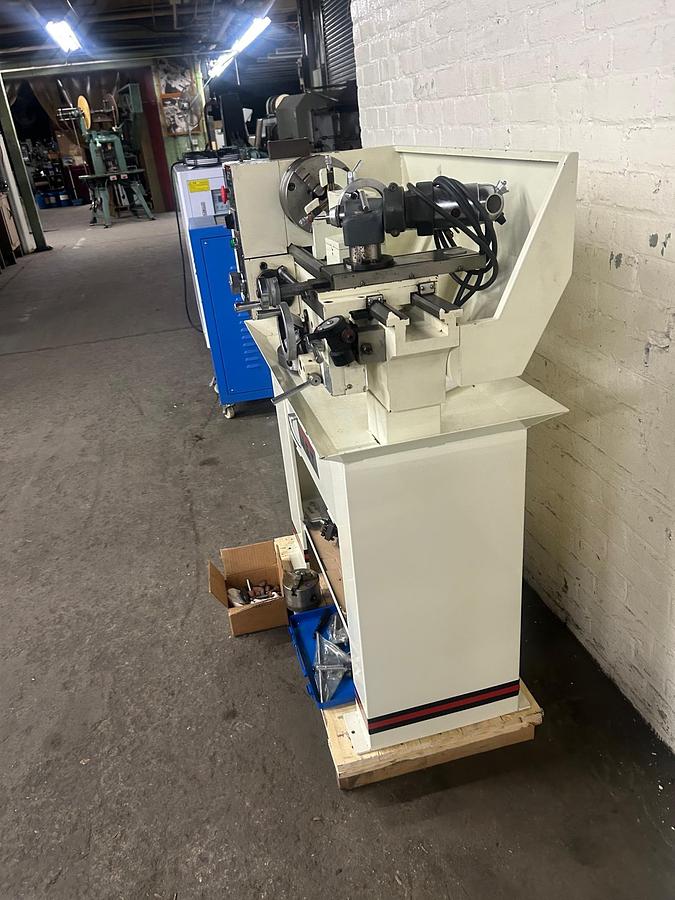

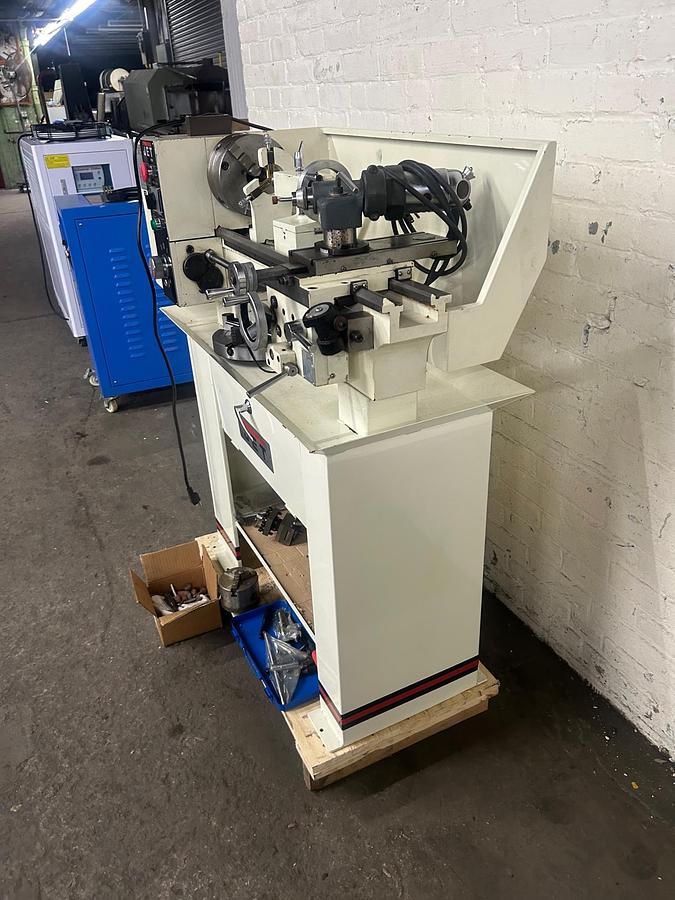

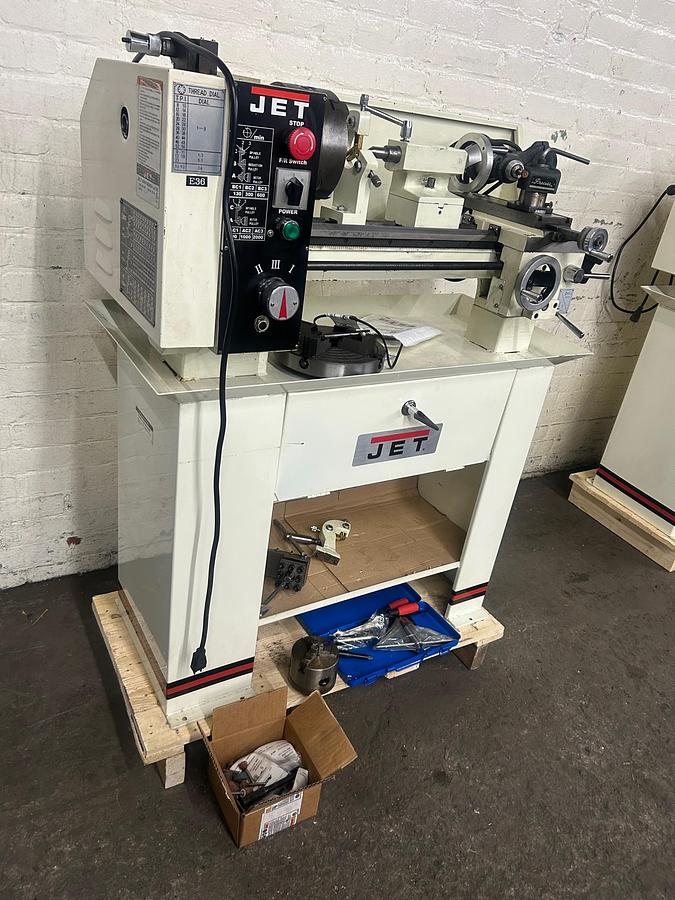

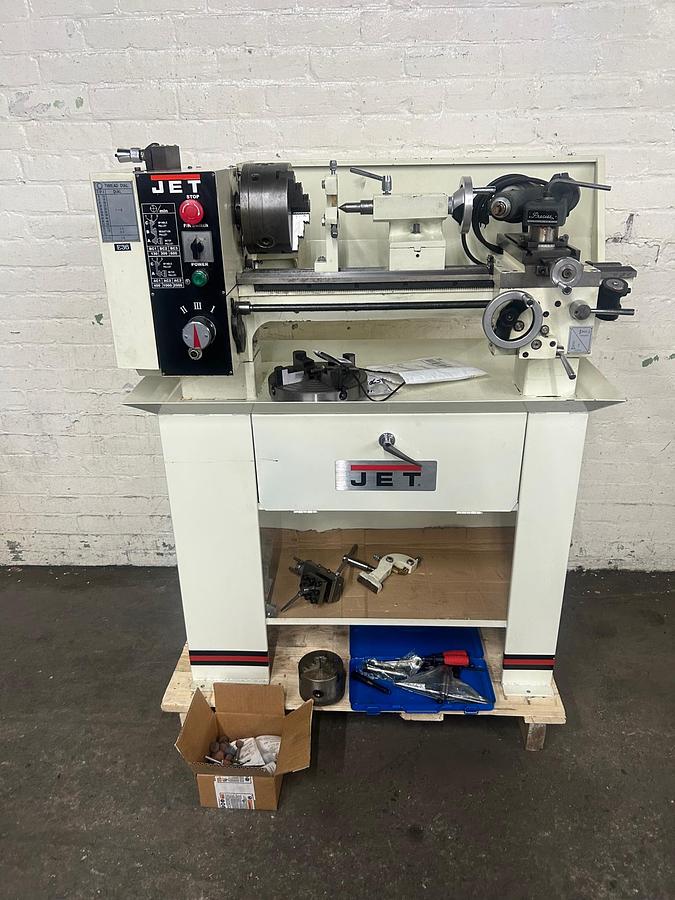

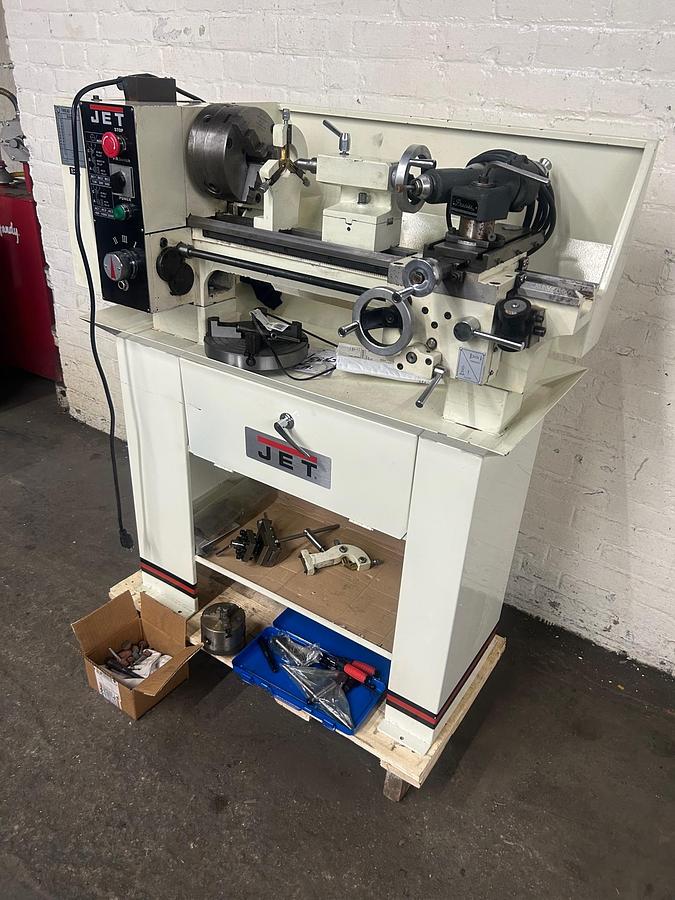

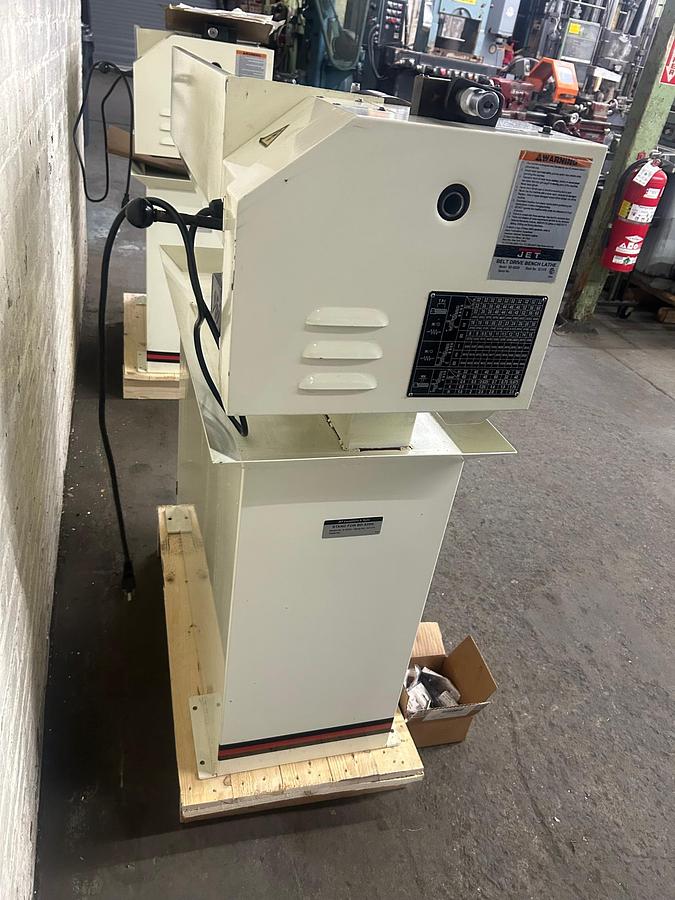

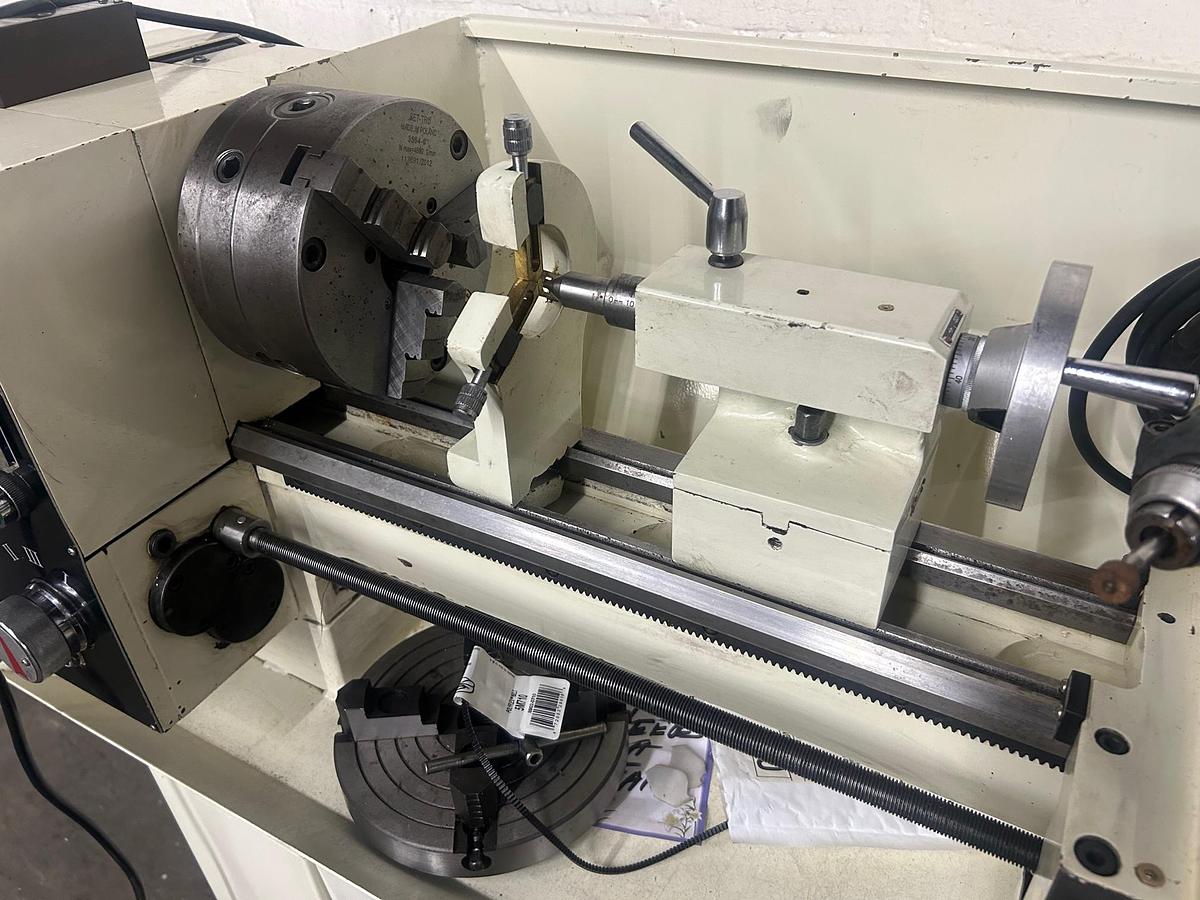

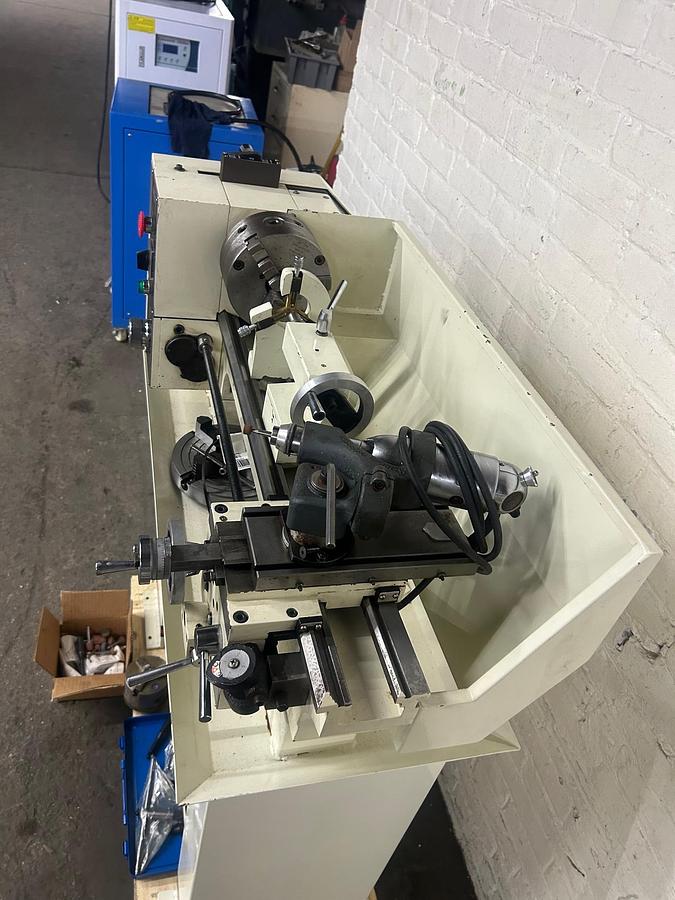

Jet BD-920W 9" x 20" Belt Drive Bench Lathe, Inch/Metric / Well Tooled

Jet BD-920W 9" x 20" Belt Drive Bench Lathe, Inch/Metric / Well Tooled

Location:Pawtucket, RI

or
Call 1-800-619-GOLD

Description

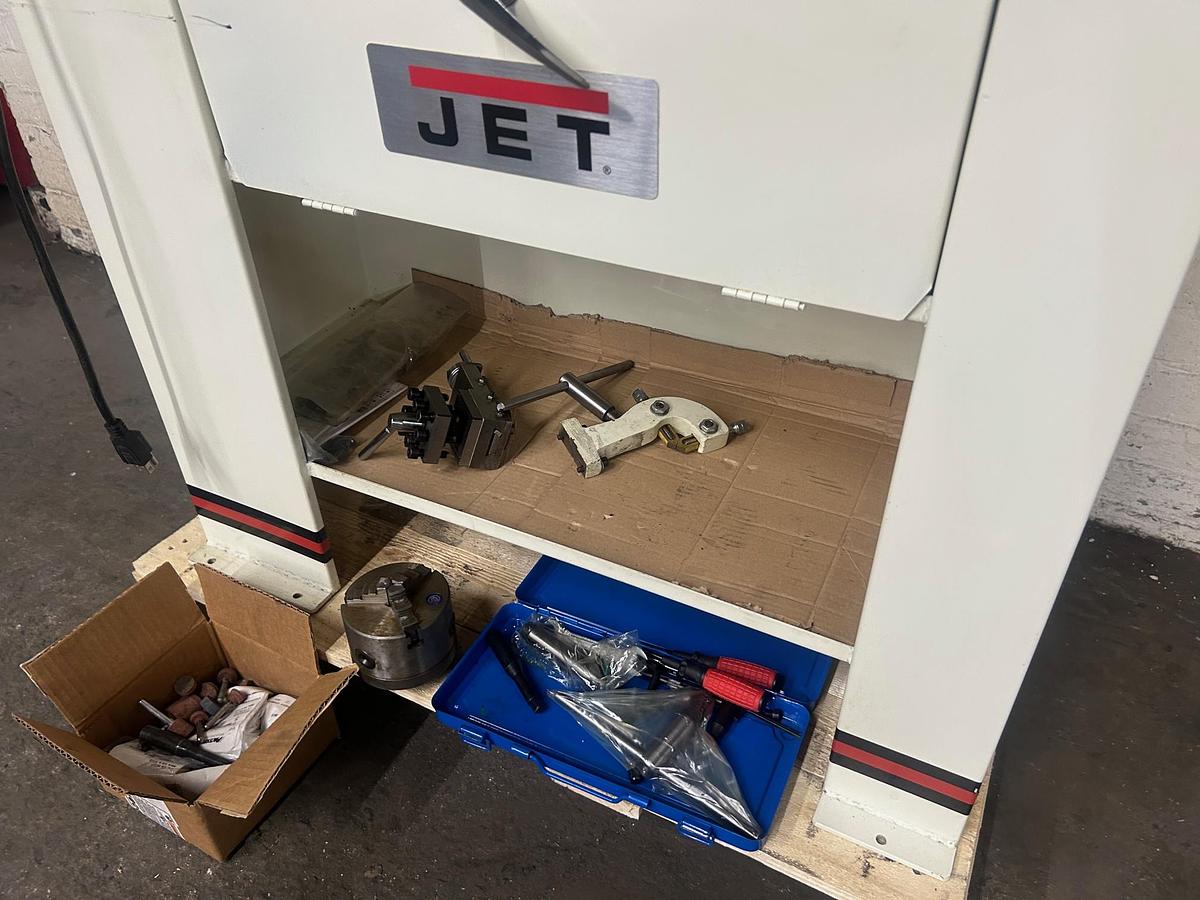

Equipped With:

  • 6 1/2" 3 Jaw chuck
  • 8" 4 Jaw chuck
  • Tool post
  • 4" 3 Jaw chuck
  • Face plates
  • Dead center
  • steady and follow rests
  • Precise grinder and attachments
  • Tail Stock
  • Travadial

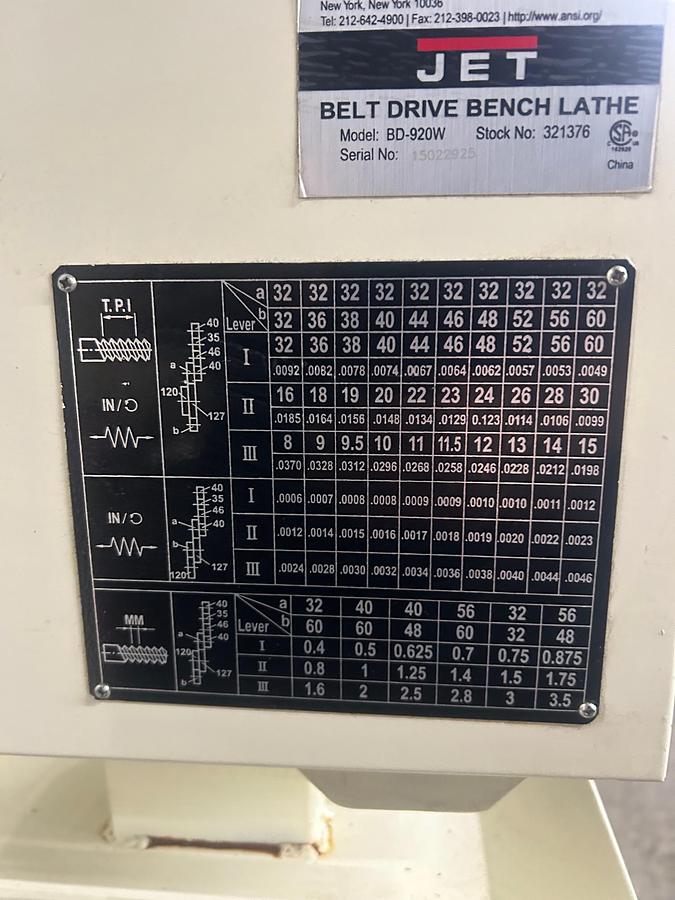

Spindle supported by precision tapered roller bearings. Quick-change gear box provides wide range of inch and metric threads.

Show All

Specifications

ManufacturerJet
ModelBD-920W
ConditionUsed
Stock Number779583
Voltage115V
Motor3/4 HP
Width of Bed4-7/8"
Follow Rest Capacity1-7/8"
Steady Rest Capacity1-7/8"
Taper in Tailstock SpindleMT-2
Tailstock Spindle Travel1-9/16"
Carriage Travel16"
Cross Slide Travel5"
Compound Slide Travel1-7/8"
Range of Metric Threads.5 - .3
Number of Metric Threads11
Range of Inch Threads (TPI)8 - 56
Number of Inch Threads27
Range of Longitudinal Feeds (IPR).005 - .011
Number of Longitudinal and Cross Feed Rates27
Range of Spindle Speeds (RPM)130 - 2,000
Number of Spindle speeds6
Spindle Taper W/ SleeveMT-3
Spindle Mount1-1/2 x 8
Spindle Bore25/32"
Distance Between Centers20"
Swing Through Gap20"
Swing over Cross Slide5-1/4"
Swing over Bed8-3/4"
Overall dimensions37.5" x 20" x 45"
Estimated weight325 Lbs
