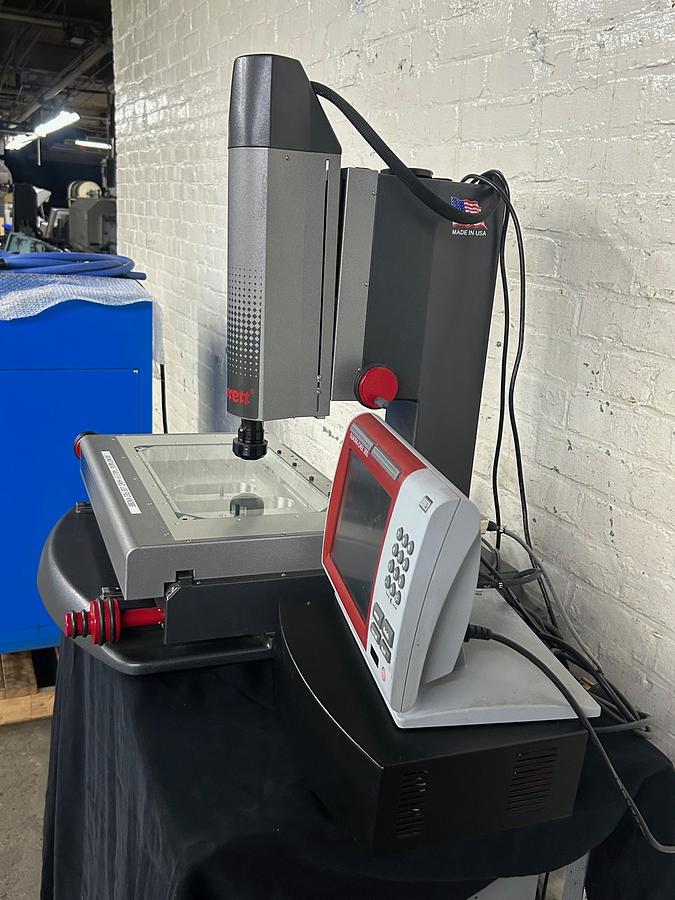

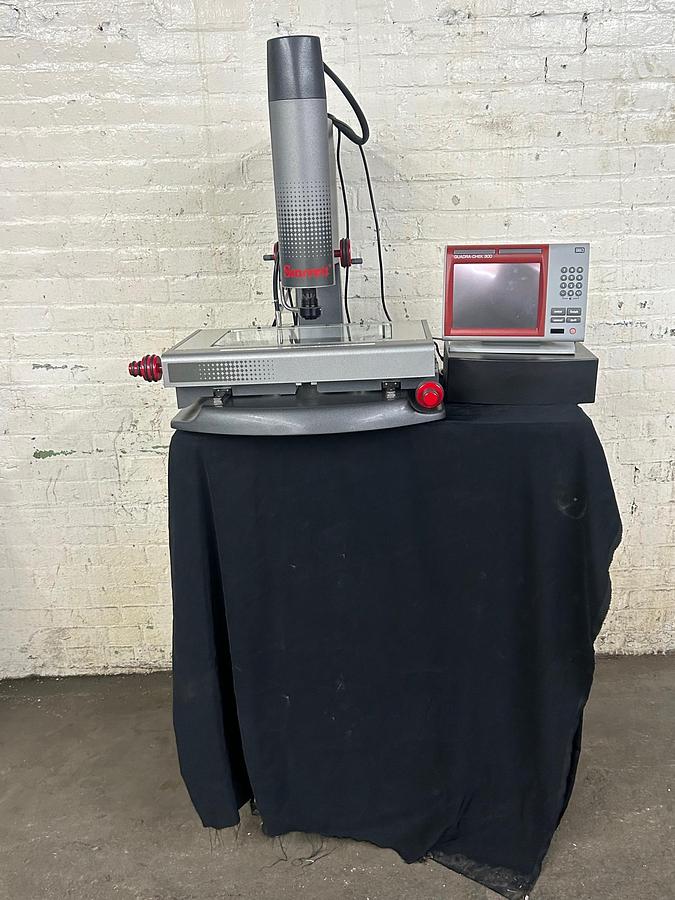

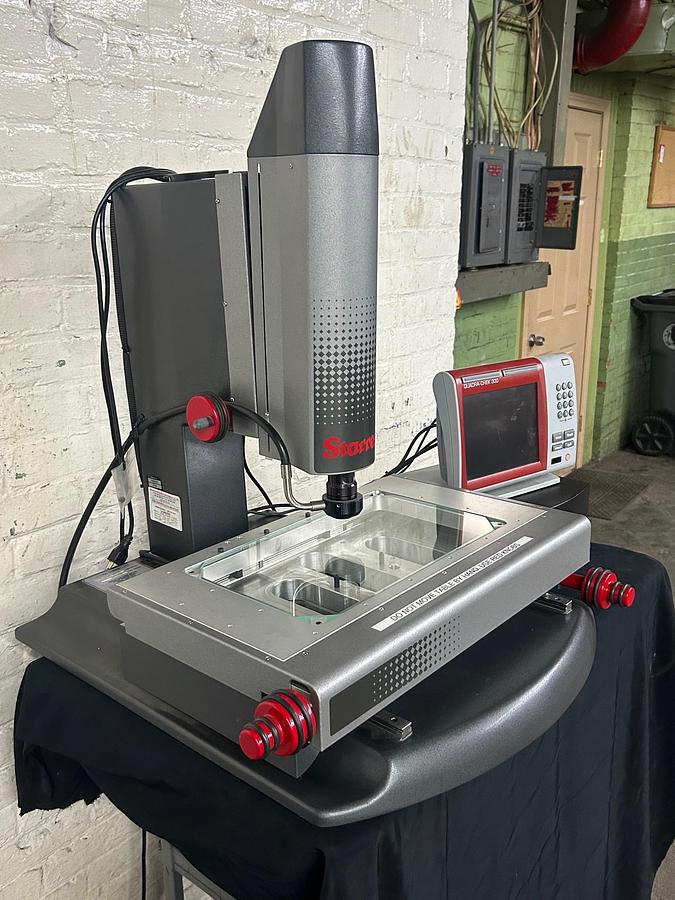

Starrett Galileo EZ Vision System with Quadra-Chek QC300 Precision 2D Optical/Video Measurement System

Quadra-Chek QC300:

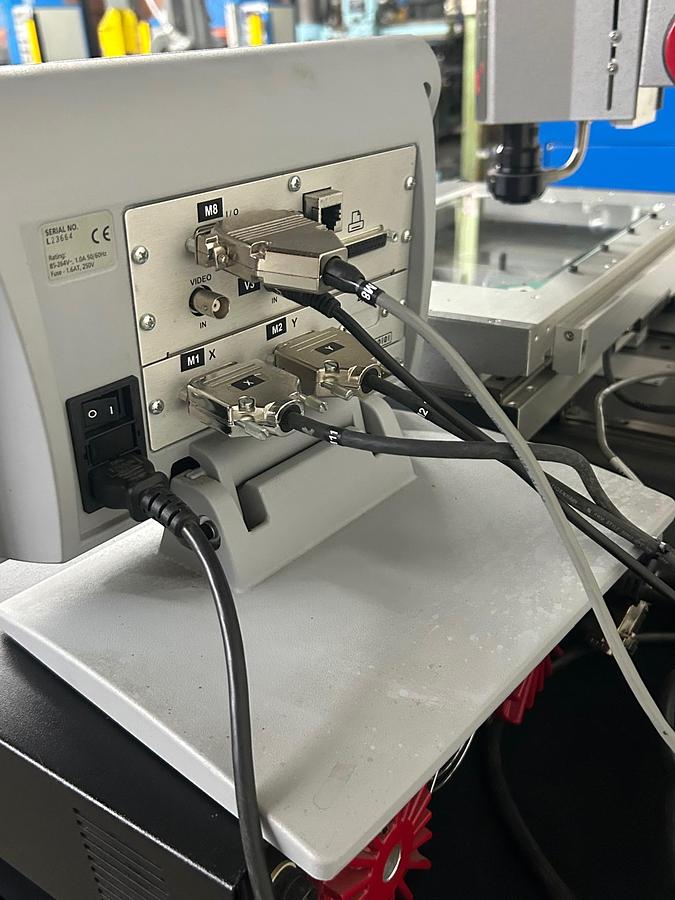

System Overview Display Unit: Quadra-Chek 300 digital readout with an 8.4" SVGA color touch screen. Core Tech: Patented Measure Magic software for automated 2D geometric feature measurements. Connectivity: Equipped with USB ports, RS232C serial ports, and parallel ports for printers and networks. Axis Inputs: Supports up to 4 axes of measurement input.

Operational Features: Video Edge Detection (VED): Built-in live video display with automated edge detection capabilities. Resolution: High precision down to .000004" (.0001 mm). Data Management: Image capture, archiving, and tolerance displays for quality control.
