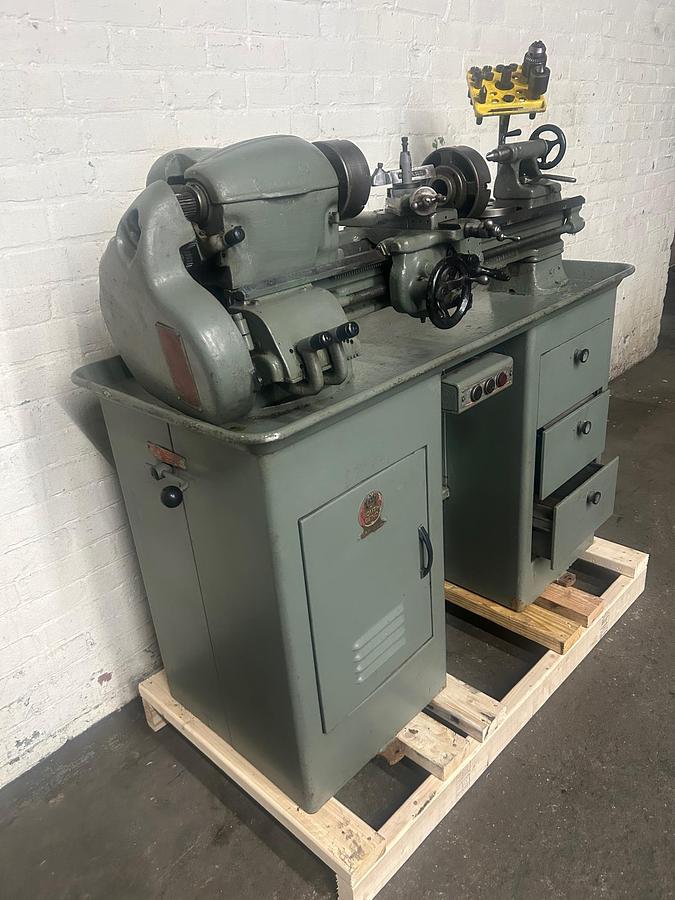

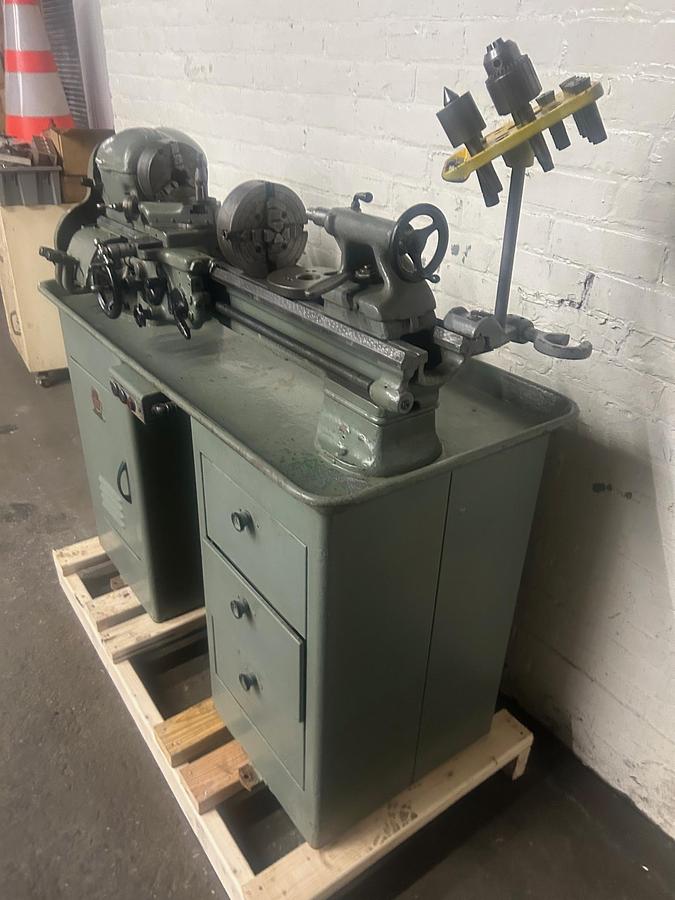

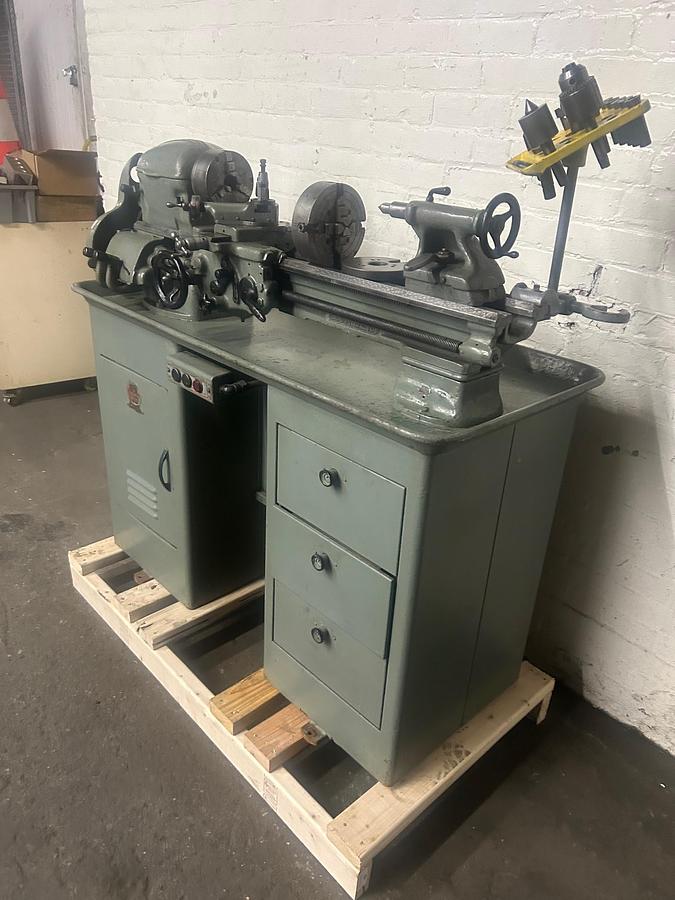

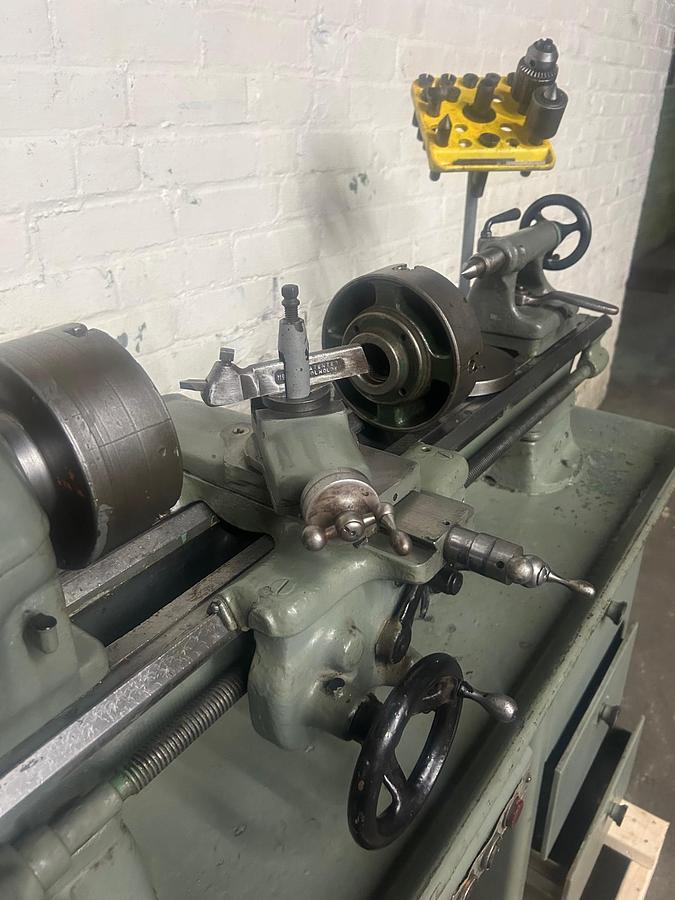

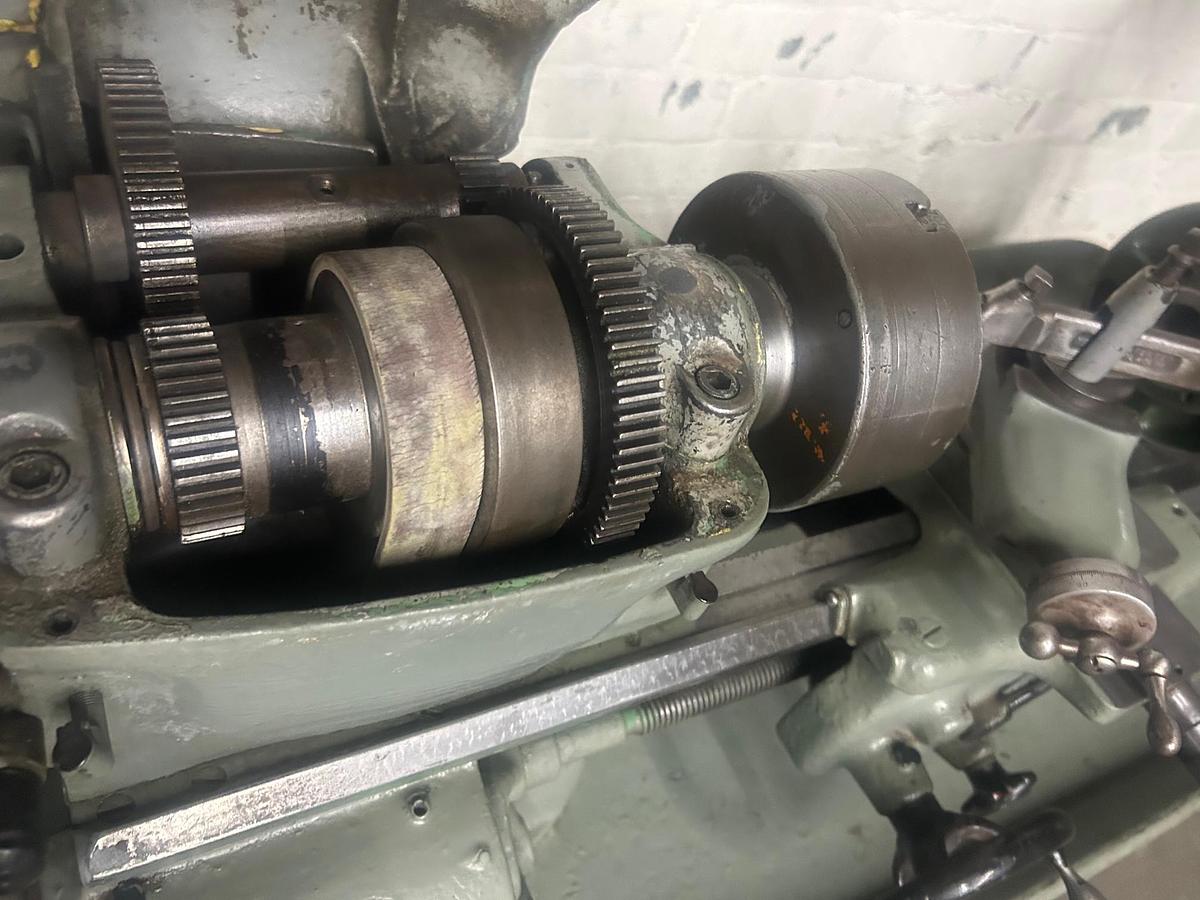

South Bend 9″ x 24″ Precision Belt Driven Lathe, Cabinet Stand

South Bend 9″ x 24″ Precision Belt Driven Lathe, Cabinet Stand

Location:Pawtucket, RI

or
Call 1-800-619-GOLD

Description

Equiped with

  • Cabnet stand

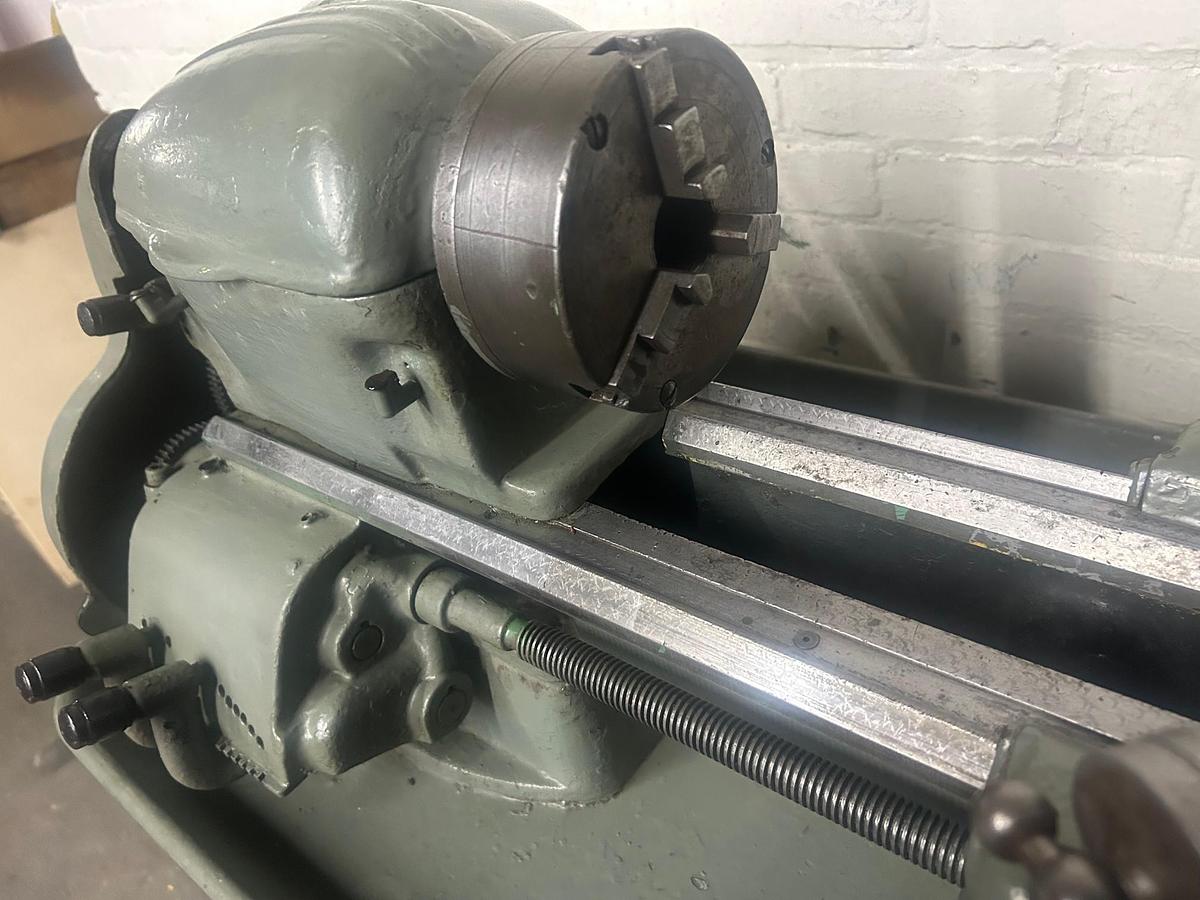

  • 3 jaw chuck

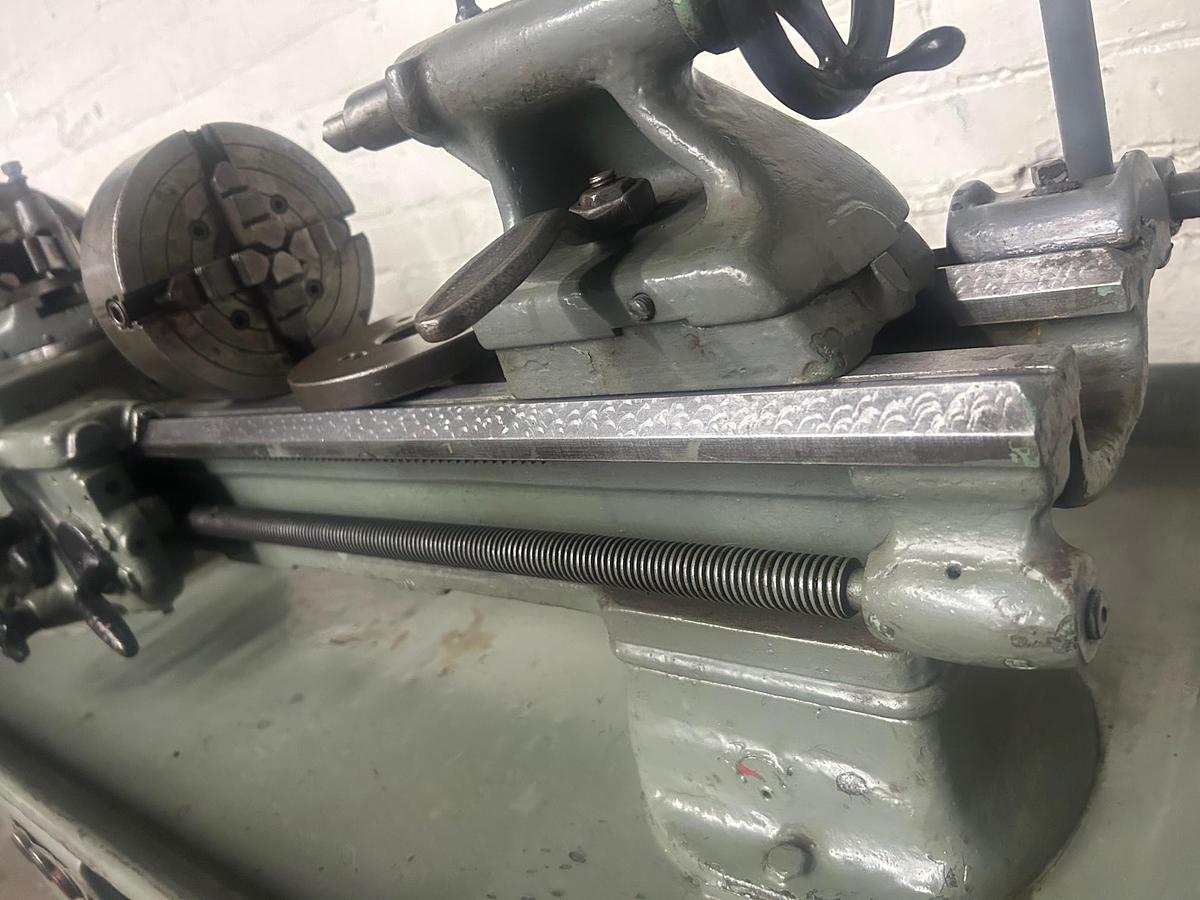

  • 4 jaw chuck
  • Dead center
  • Assorted collets
  • 5" Face plate
  • Tool post ring and rocker
Show All

Specifications

ManufacturerSouth Bend
ConditionUsed
Stock Number779573
Swing Over Bed & Saddle9-1/4"
Swing Over Cross Slide5"
Tailstock / Headstock Centers#2MT
Compound Rest, Cross Slide Travel5-58"
Tailstock Spindle Travel2-1/8"
Spindle Speeds50-1270 RPM (12)
Hole Through Spindle3/4"
Max. Collet Capacity1/2"
Spindle Nose1-1/2" - 8"
Threading4 to 224 TPI (48 Pitches)
Longitudinal Feeds.0015" to .0853" Per Revolution (48)
Cross Feeds.004" to .0255" Per Revolution (48)
Motor1/2 HP
Overall Dimensions47" x 25" x 52" H
Approximate Weight750 Lbs
