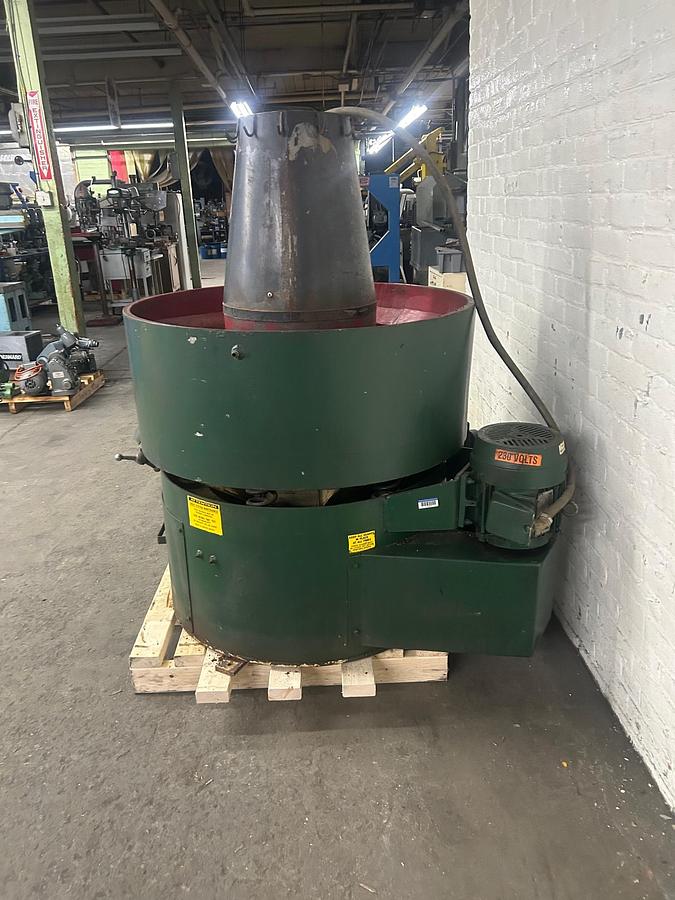

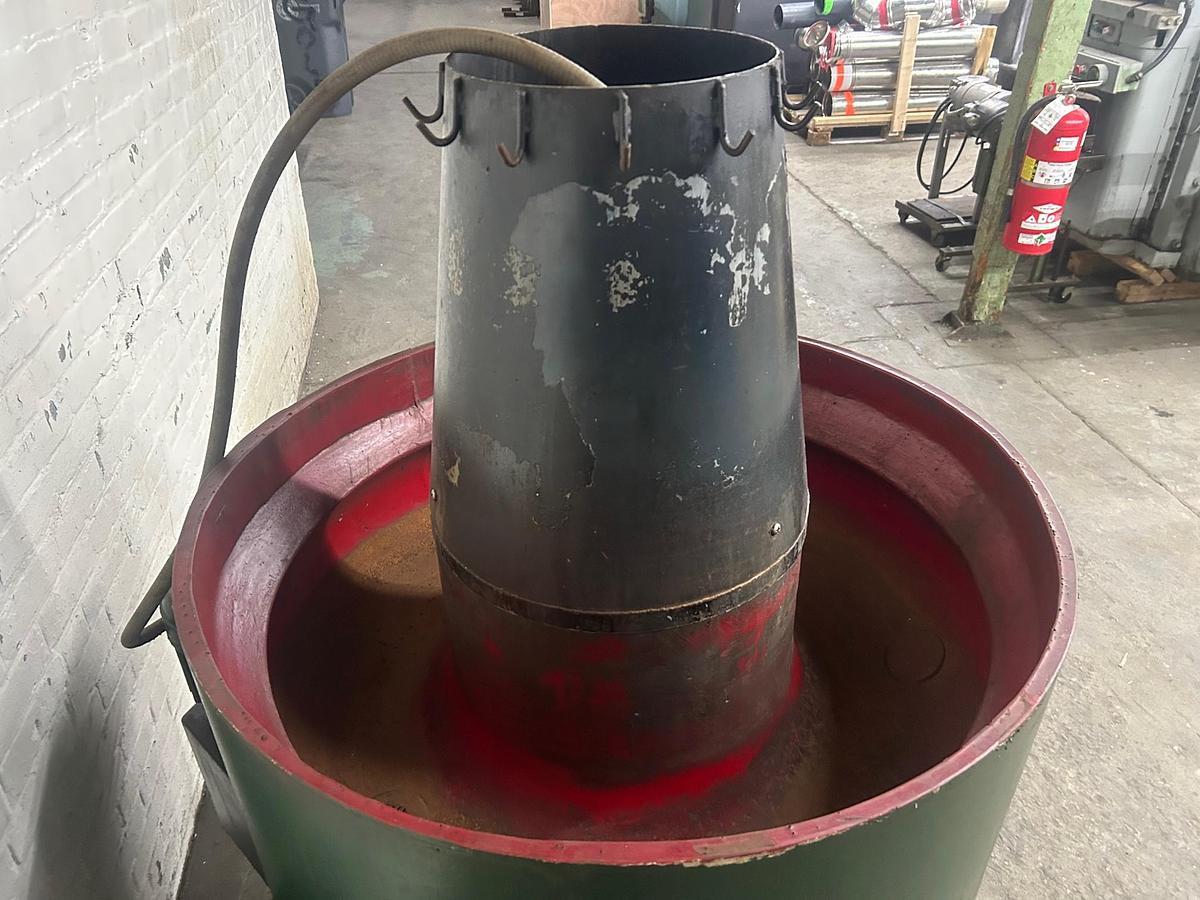

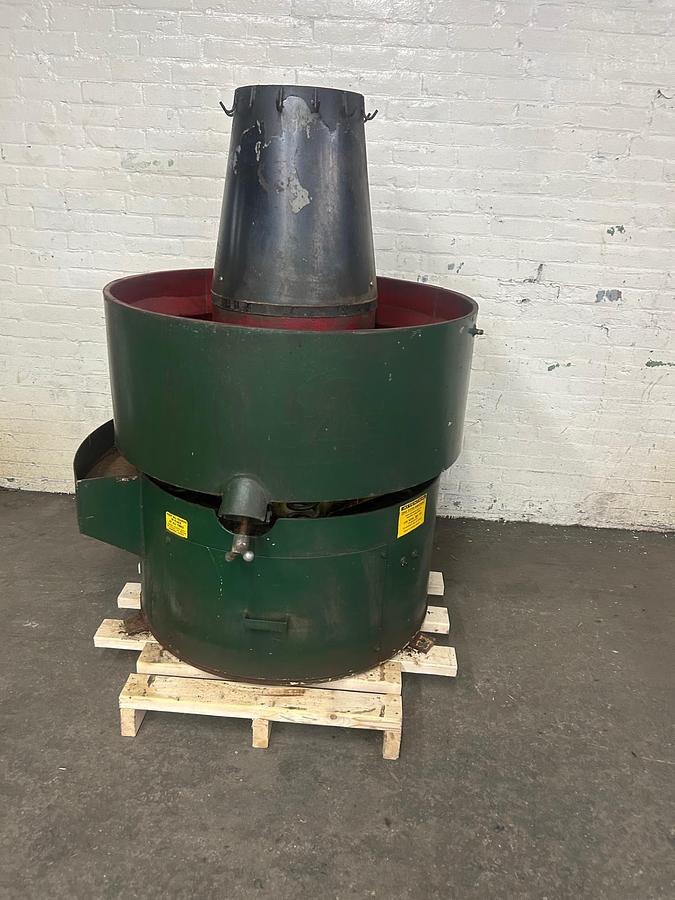

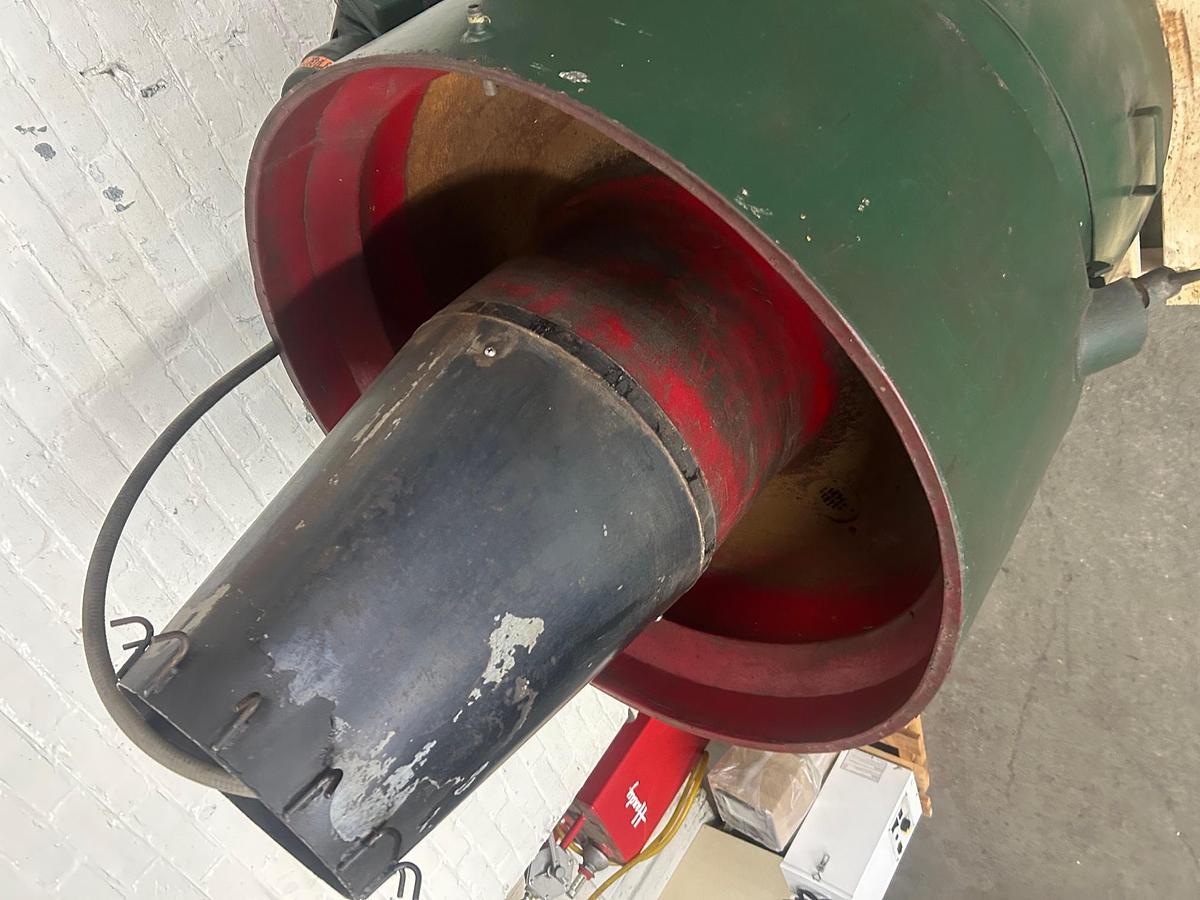

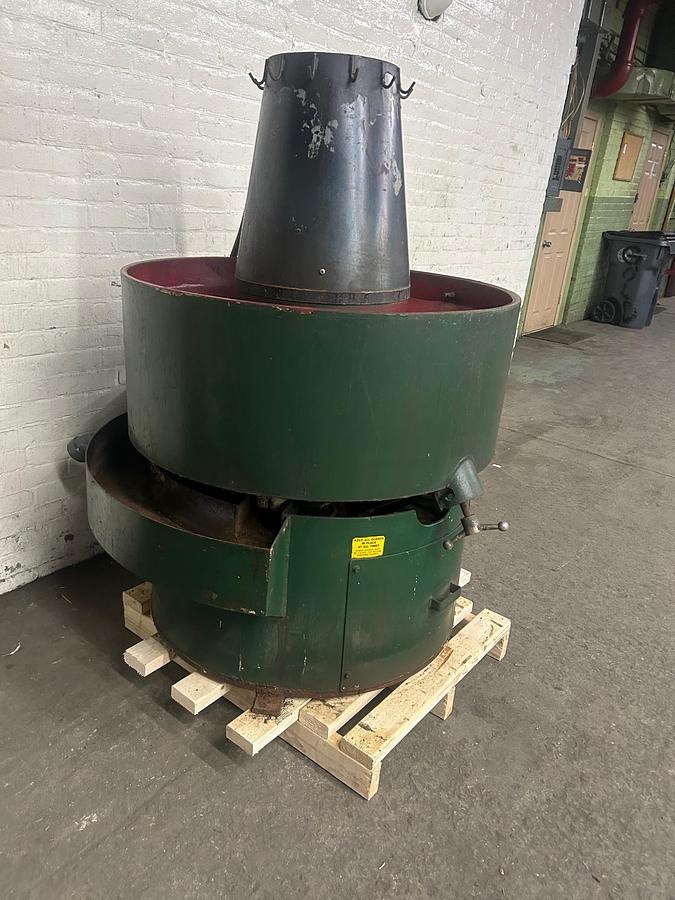

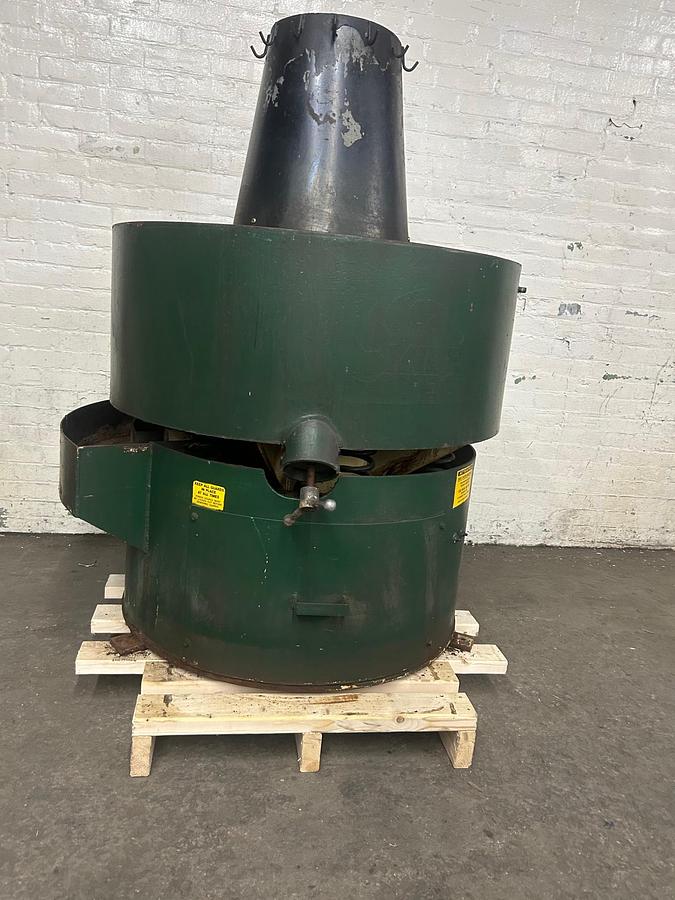

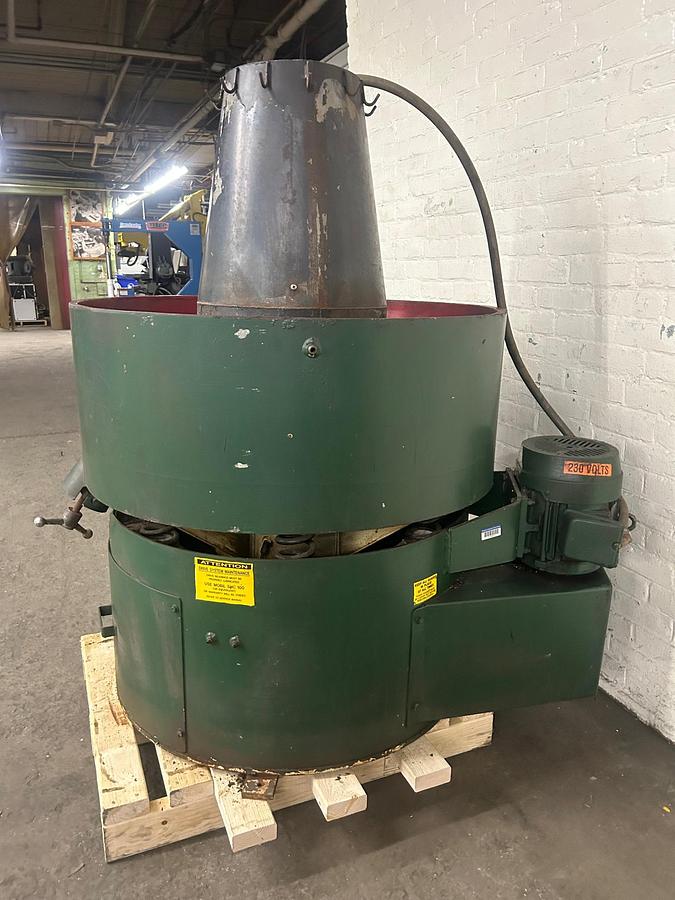

Vibe Tech Model VT 3816F Vibratory Finishing Machine
Vibe Tech Model VT 3816F Vibratory Finishing Machine
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Specifications
| Manufacturer | Vibe Tech |
| Model | VT 3816F |
| Condition | Used |
| Stock Number | 779570 |
| Voltage | 230 / 460 Volt, 3 PH, 60 CY (wired 230v) |
| Capacity | 4 cubic feet working capacity |
| Construction | 3/16” Outer Wall, 1/4” Center Wall, 5/8” Top and Bottom Bearing Mounting Plate |
| Bowl Width | 38" |
| Machine Height | 58" |
| Process Channel Width | 9" |
| Lining Grade | 80-Durometer Premium Cast Polyurethane |
| Lining Thickness | 3/4" |
| Channel Cross Section Profile | Curved outer wall |
| Horizontal Profile | Flat bottom / batch style |

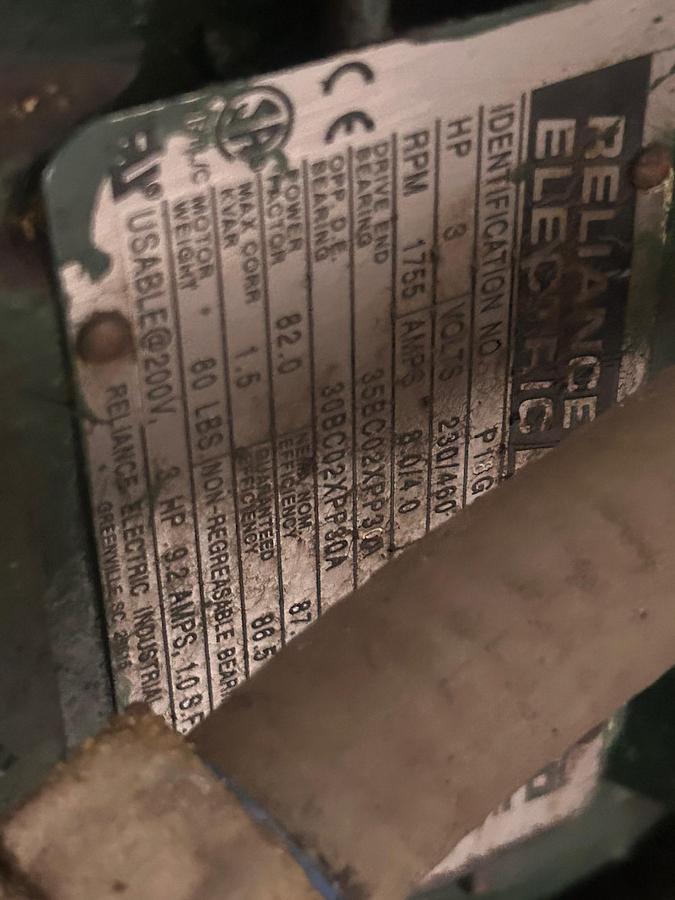

| Motor | 3 HP |
| Bearing Type | (2) Double Row Spherical Bearings with extra clearance for vibe application |
| Bearing Assembly | Cast-steel, piloted housing, flange bearing |
| Lubrication Type | Manual grease lubricated |
| Drains | (2) 3.3” Push-In Style Urethane Drains |
| Processing Capability | Conventional or steel ball burnishing |
| Eccentric Weights | Slip-on style weight segments and a moveable top master weight allow for easy adjustment. |
| Media Unload Plug | A 4” diameter plug for media removal is included. |
