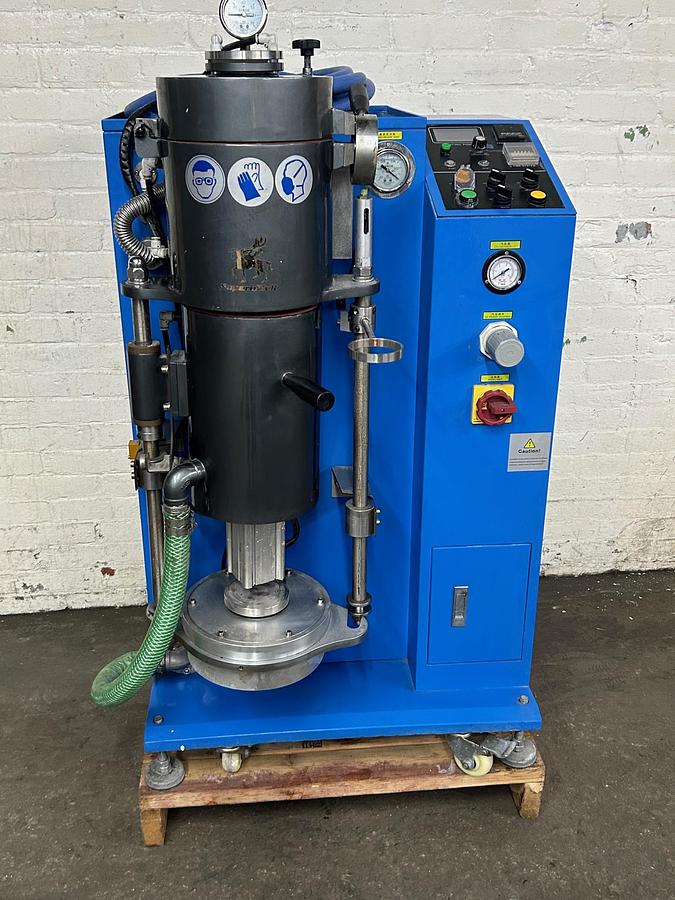

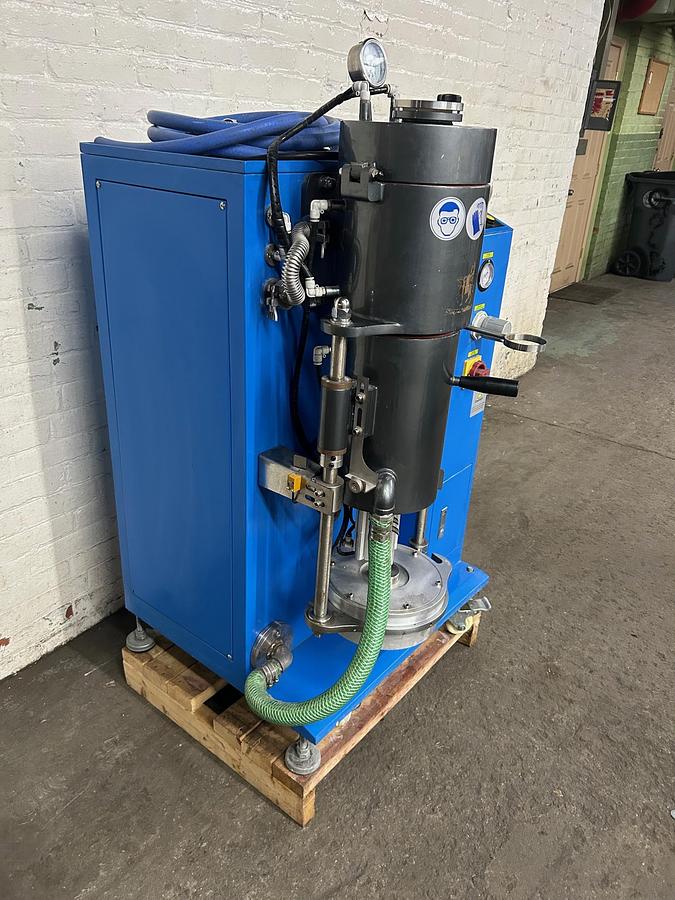

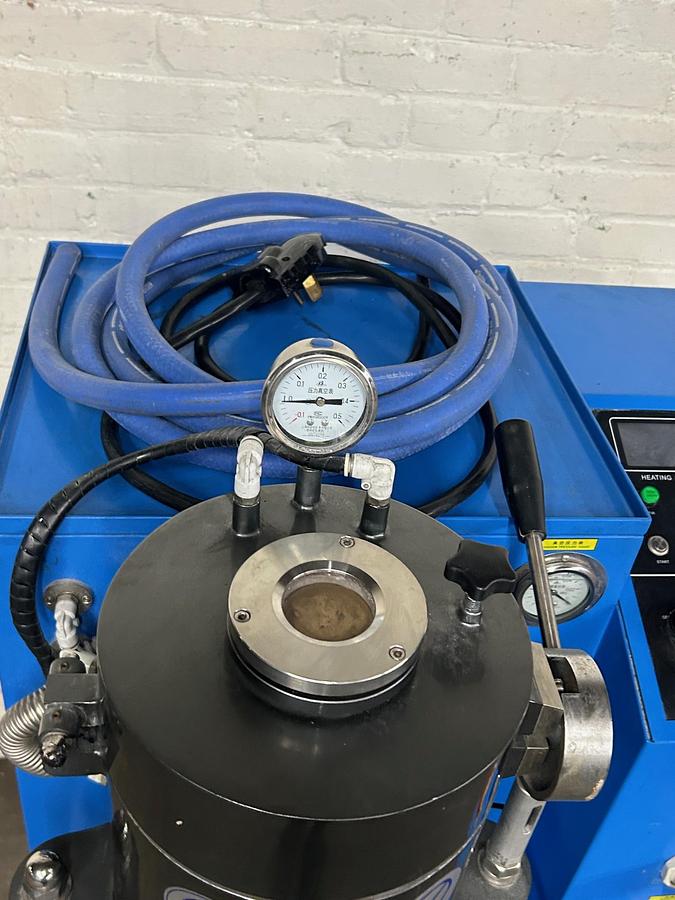

SuperbMelt Model SPB-DM Vacuum Casting Jewelry Making Machine
SuperbMelt Model SPB-DM Vacuum Casting Jewelry Making Machine
Location:Pawtucket, RI
Description
SuperbMelt jewelry casting machine (SPB-DM), also known as an automatic casting machine for jewelry, can be used for casting any precious metal in the weight range of 1-6kg. Precious metals such as gold, copper, and silver, or any other metal artwork, can be processed with this product. The vacuum jewelry making machine is the ideal choice when it comes to an automatic casting machine for jewelry. It offers exceptional speed and energy efficiency.
SuperbMelt jewelry casting machine (SPB-DM) ensures that you’ll never have to bother about density, shrinkage or air hole in your final piece. The casting machine comes with gas chamber which releases pressurized inert gases. This completely eliminates any of form of porosity or shrinkage. Thereby giving your final piece an impeccable appearance and a touch of class.
Strong induction stirring makes the gold alloy more uniform
Specifications

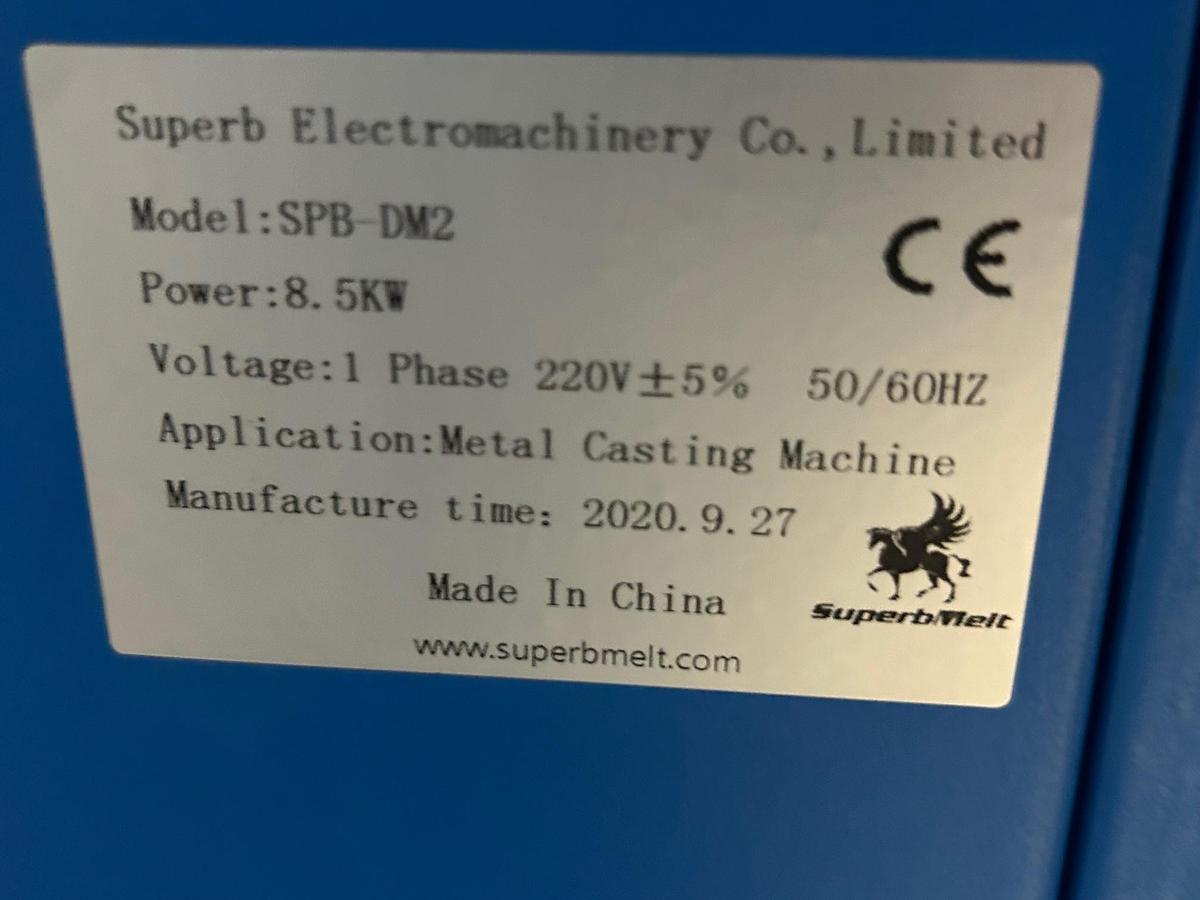

| Manufacturer | SuperbMelt |
| Model | SPB-DM |
| Year | 2020 |
| Condition | Used |
| Stock Number | 779565 |
| Voltage | 220V/Single phase 50/60Hz |
| Power | 8.5 kw |
| Casting system | Vacuum pressure casting system |
| Applicable metal | Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Melting time | 3-5 min |
| The Max capacity | 24K Gold: 2.0 kg, 18K Gold: 1.5kg, 925 Silver: 1.0 kg |
| Max temperature control R-type | 1600℃ |
| Max. temp control k-type | 1100℃ |
| Dimension | 720 x 700 x 1150 mm |
| Weight | 210 kg |

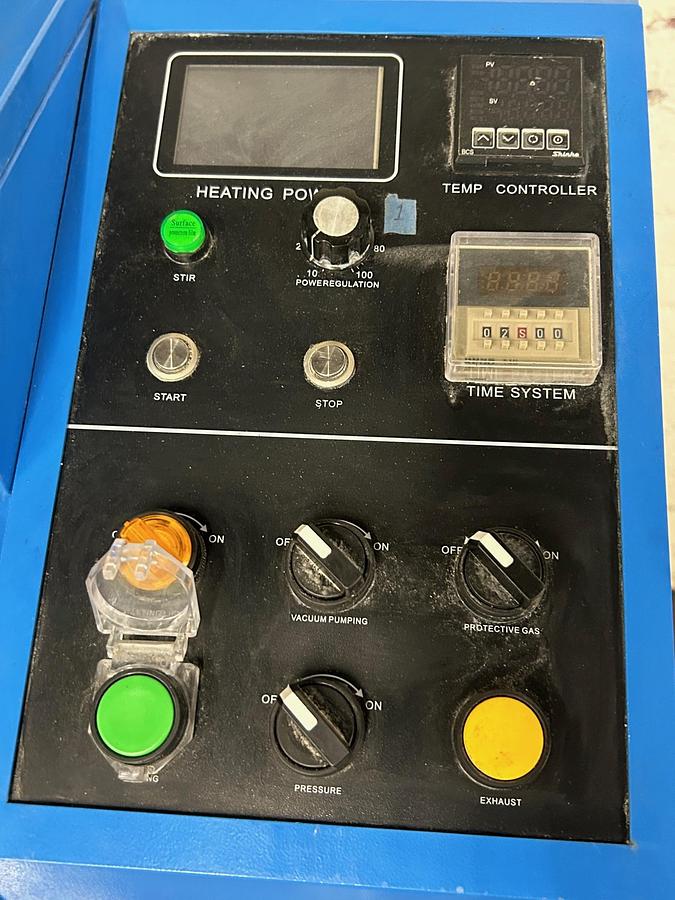

| Control of temperature | by PID |
| Pressure applied | Max. 0.25 Mpa |
| Protective gas | Nitrogen or Argon |
| Vacuum pump | 63 m³/hour |
| Oscillation | Induction heating |
| Max flask size | D101 x H254 mm |
| Ultimate vacuum | 10hPa |
| Accuracy of temperature | ±2 degrees Celsius |
| Vacuum filter | Yes |
| Vacuum leakage detector | Yes |
| Flask check before casting | Yes |
| Flask and chamber lift | Yes |
