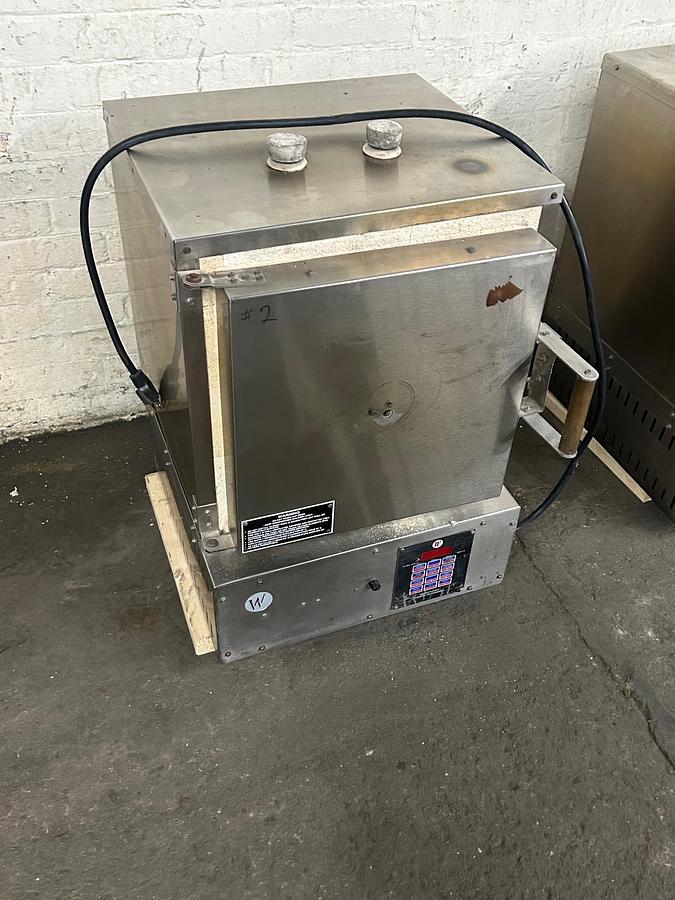

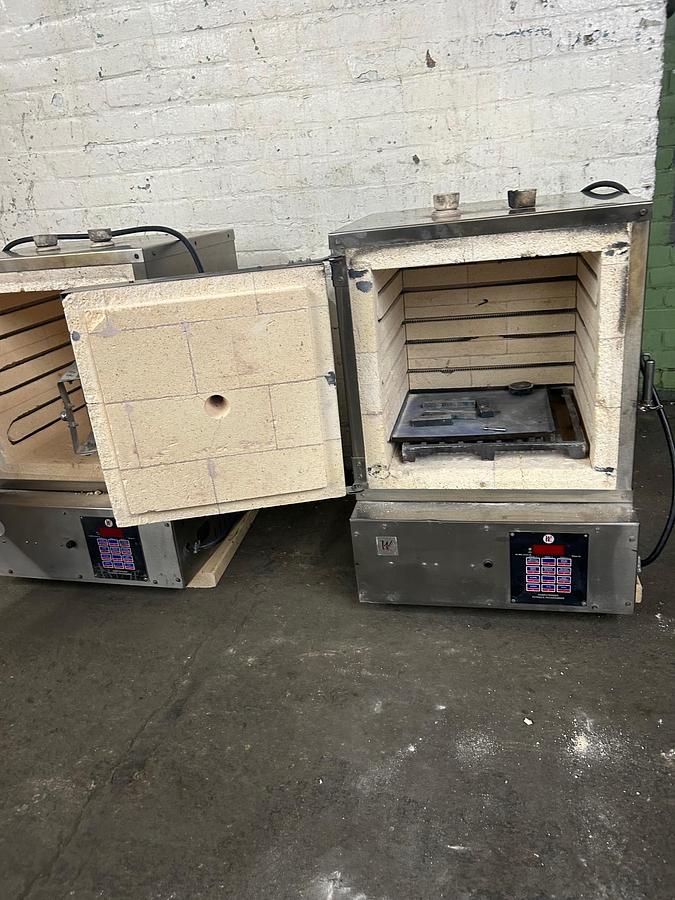

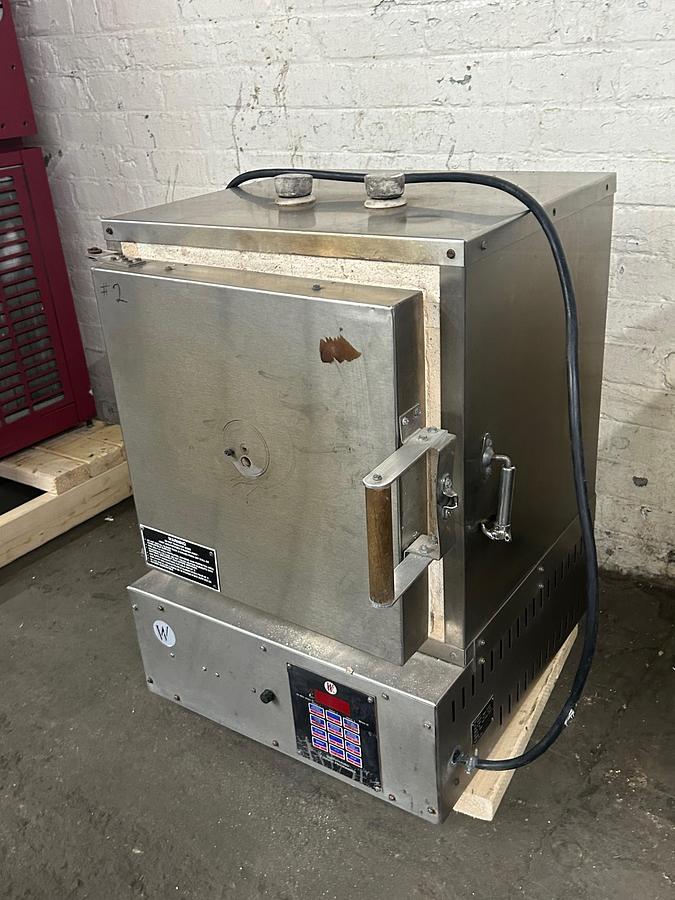

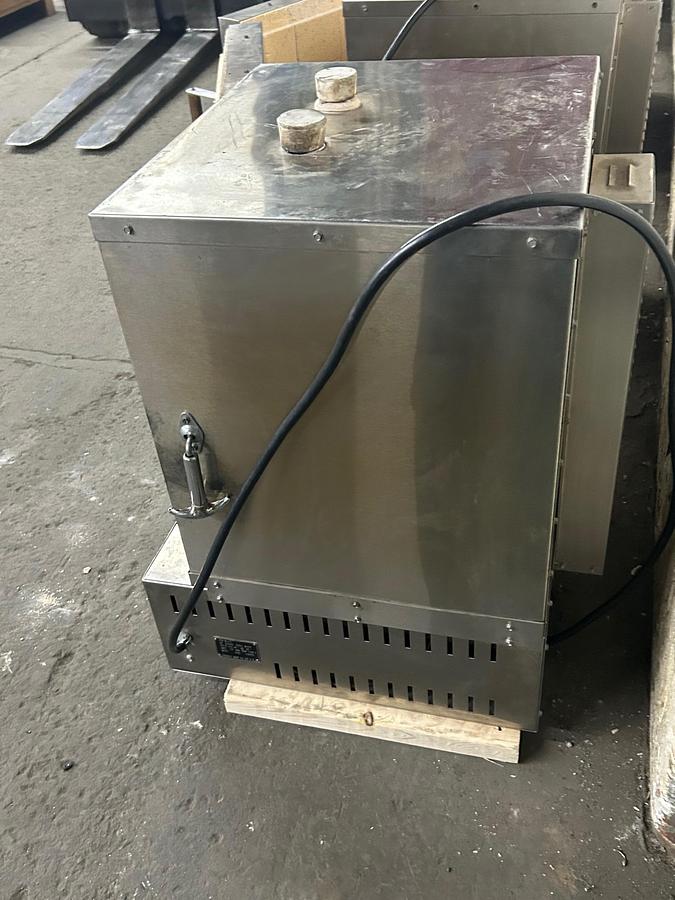

Paragon Industries Digital Jewelry Kiln Model W14-2 Laboratory Furnace

Digital Jewelry Kiln

Designed for glass fusing, ceramics, jewelry making, and metal clay firing.

The Paragon Industries W14-2 furnace's computerized programmer allows for simple push-button operation during burnout processes, offering pre-programmed burnout cycles and the ability to create custom programs with up to 20 segments.

Key Features of the W14-2 Furnace and Programmer:

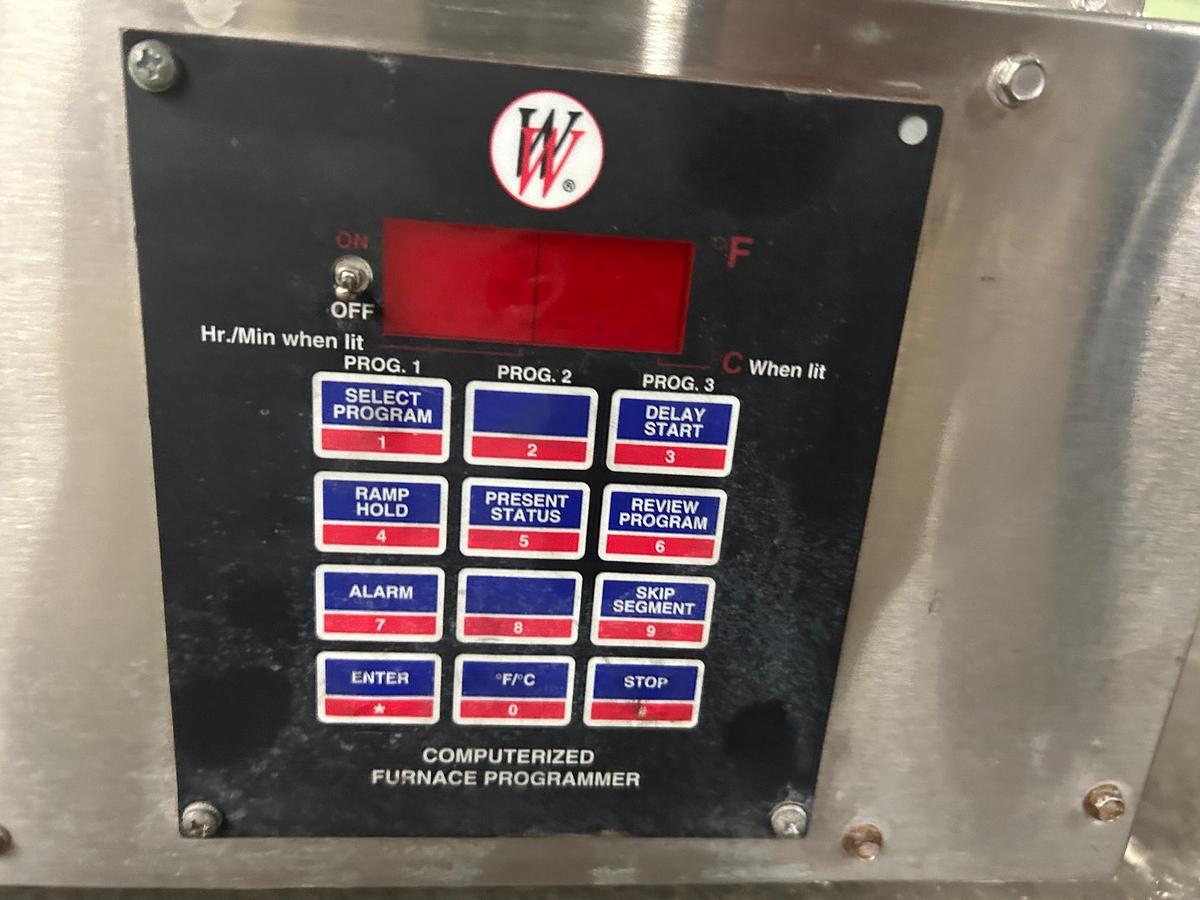

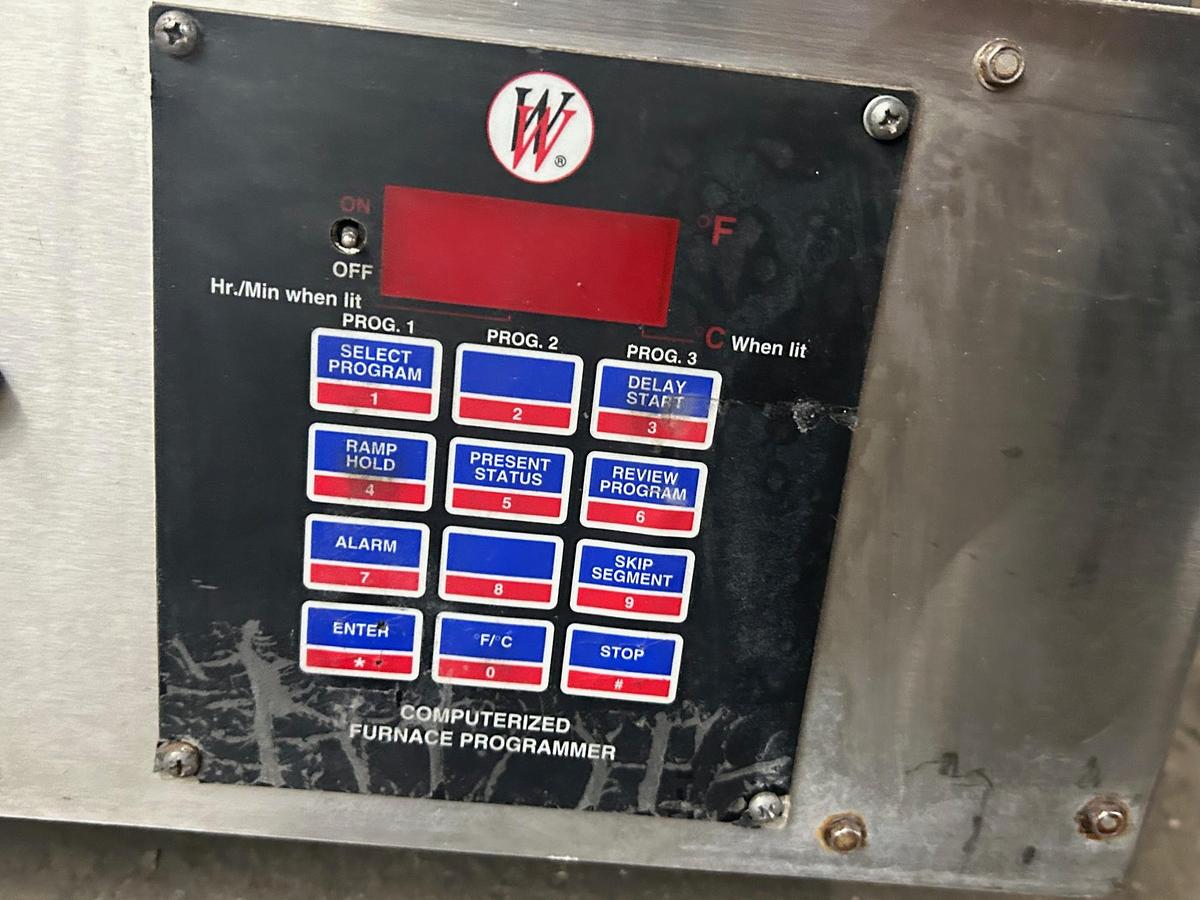

Computerized Programming:

The programmer allows for simple push-button operation during burnout processes.

Pre-programmed Burnout Cycles:

The programmer includes 3 built-in burnout programs that can be used immediately.

Customizable Programs:

You can create up to four custom programs.

Program Segments:

Program 1 allows for up to 20 segments or "RAMPS".

Programs 2, 3, and 4 allow for up to 10 segments.

Segment Areas:

Each segment or "RAMP" consists of:

Rate of heating/cooling.

Max Temperature setting 1700 °F

Hold time for the temperature.

Delay Function:

You can enter a delay to set the time the furnace starts the burnout program.

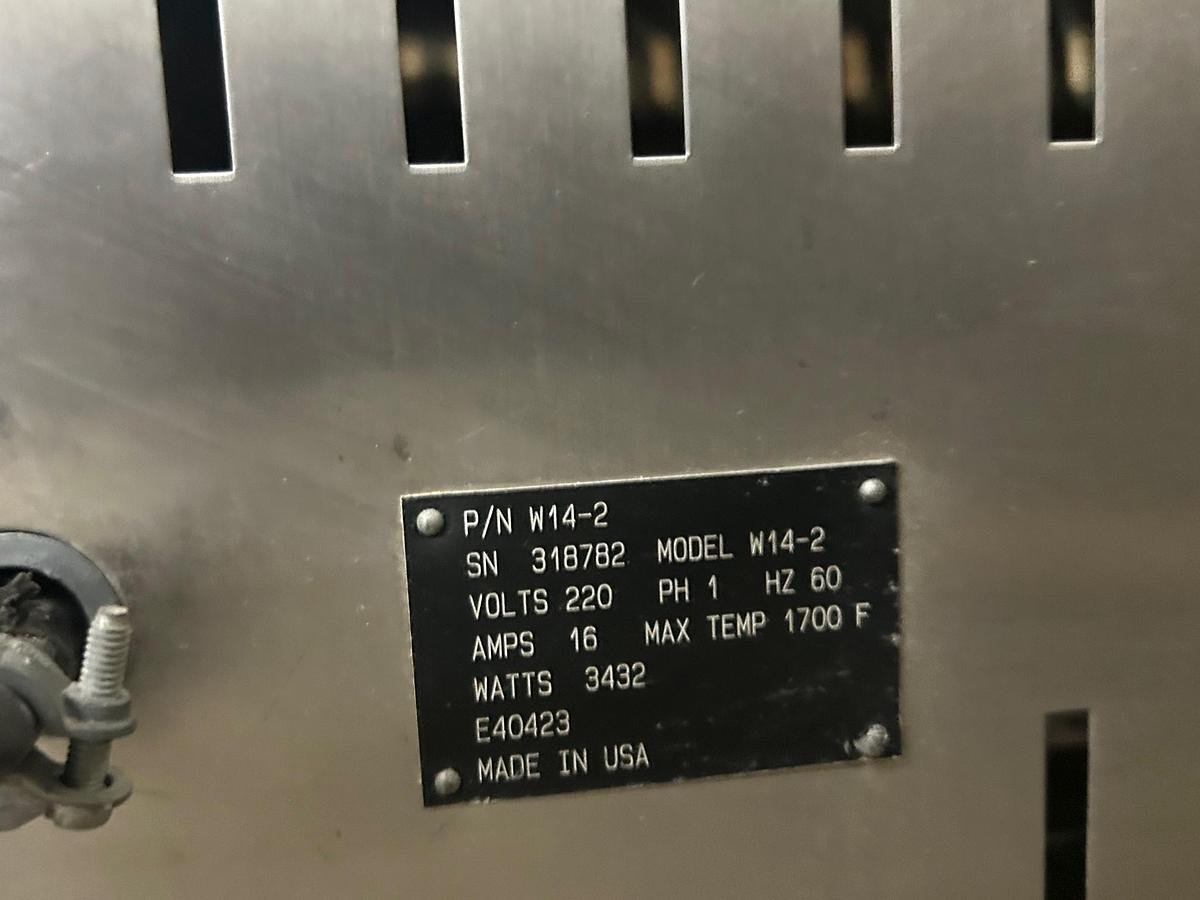

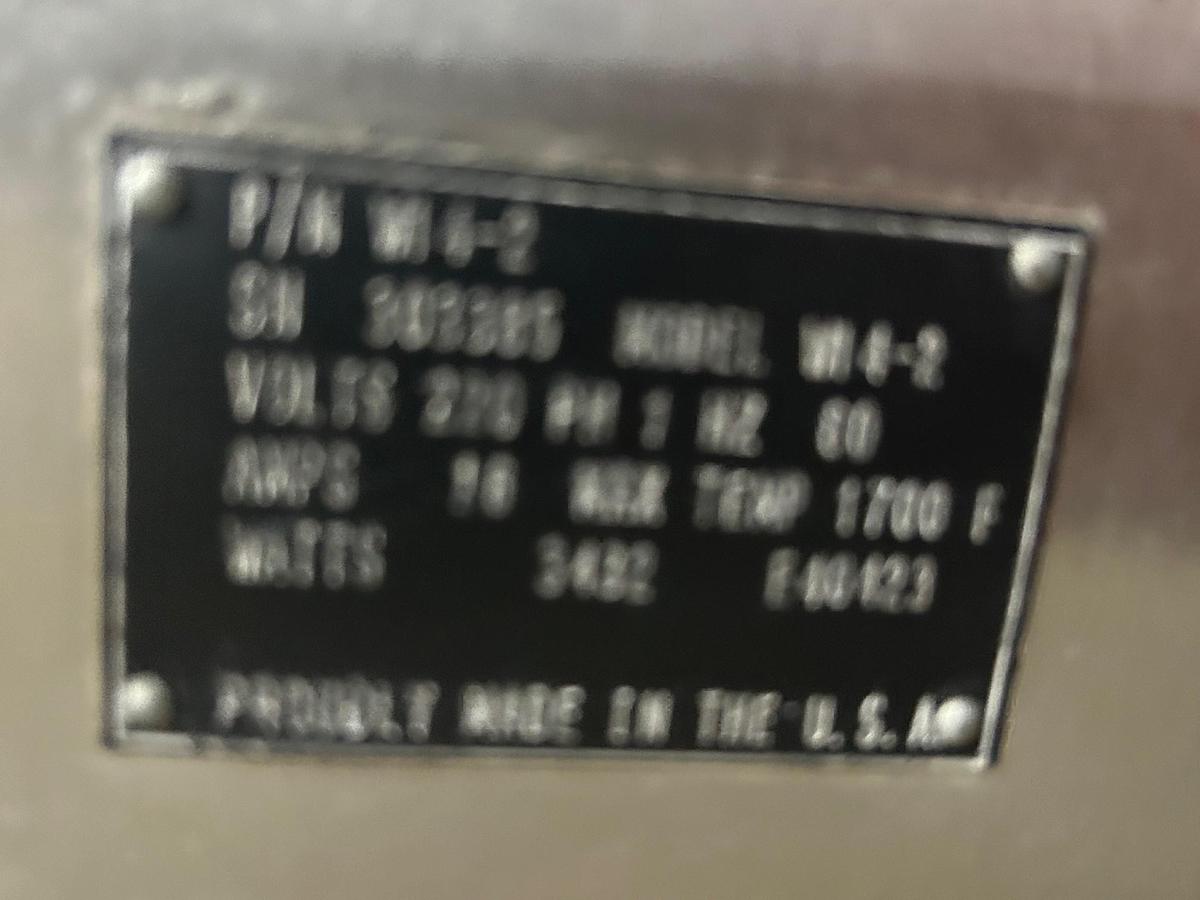

Power Requirements:

W13 and W14 furnaces require a 240V - 20 Amp dedicated power supply and a NEMA NO: 6-20 receptacle or direct wiring with a breaker box nearby.
