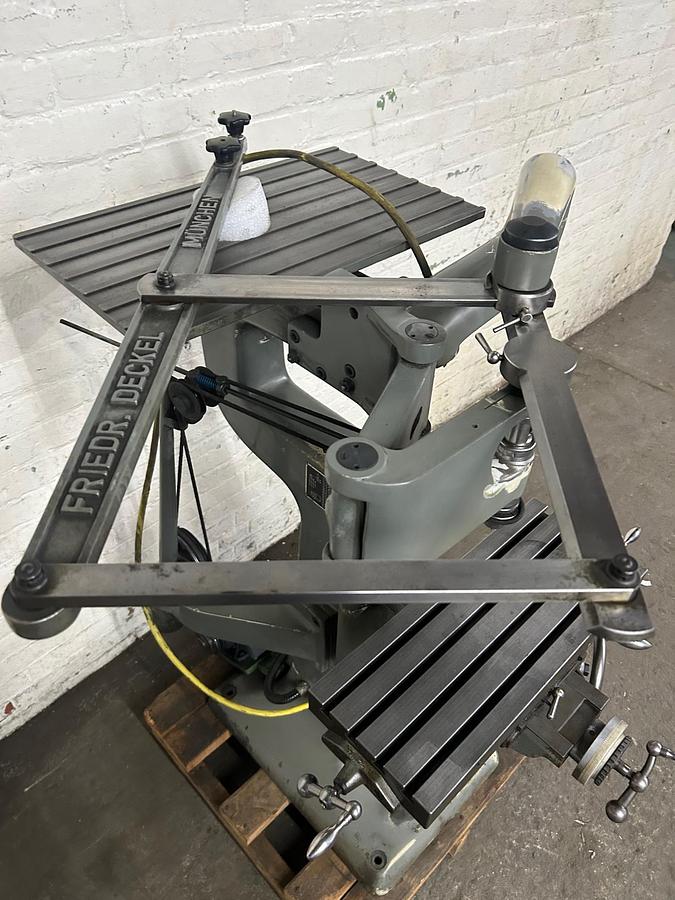

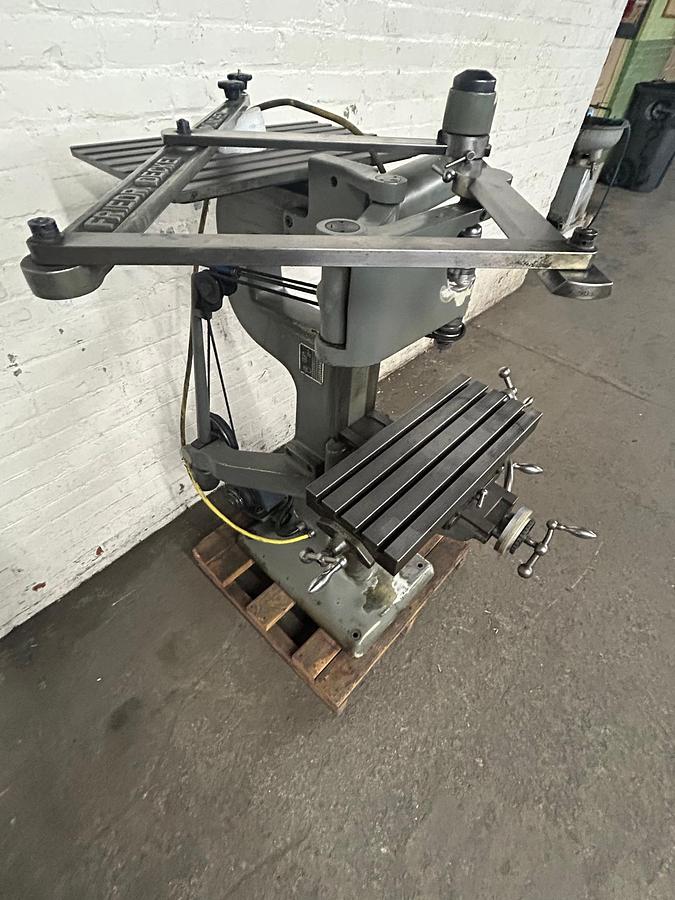

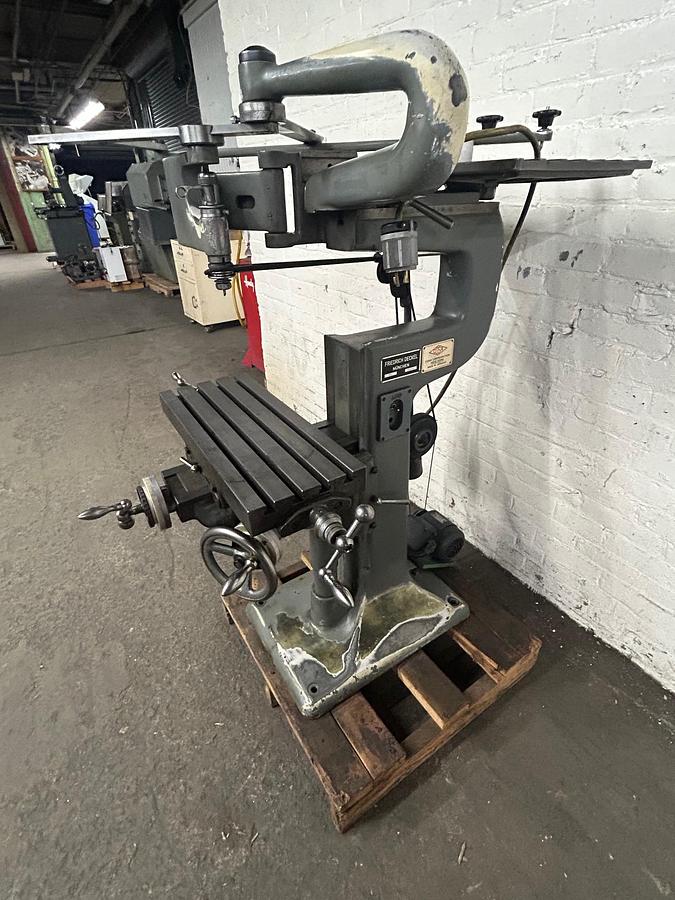

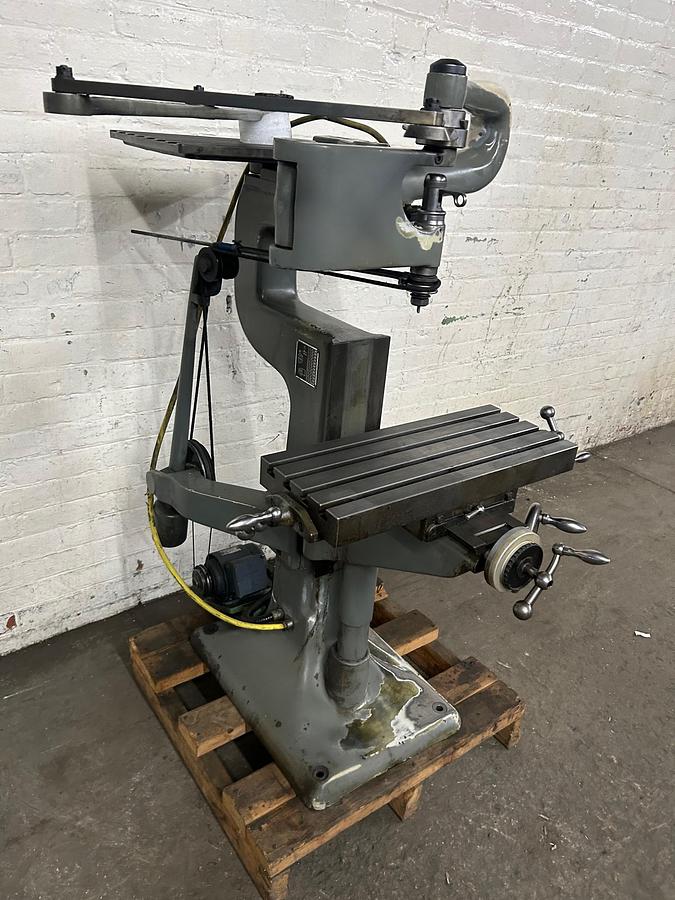

Dekel Type G1L (2 Dimensional Pantograph / Engraver, Floor Model
Dekel Type G1L (2 Dimensional Pantograph / Engraver, Floor Model
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Specifications
| Manufacturer | Dekel |
| Condition | Used |
| Stock Number | 779548 |
| Table Working Surface | 500 x 200 mm |
| Gr. Distance table to spindle | 300 mm |
| Transversal movement of the table | 160 mm |
| Longitudinal movement of the table | 300 mm |
| Stencil table | 550 x 324 mm |
| Rotatable | 360 Degrees |
| Distance from pantograph arm to table | 20 mm |
| Large bore of the collet | 6,0 mm |
| Adjustability of spindle vertical fine/coarse | 1/3 mm |

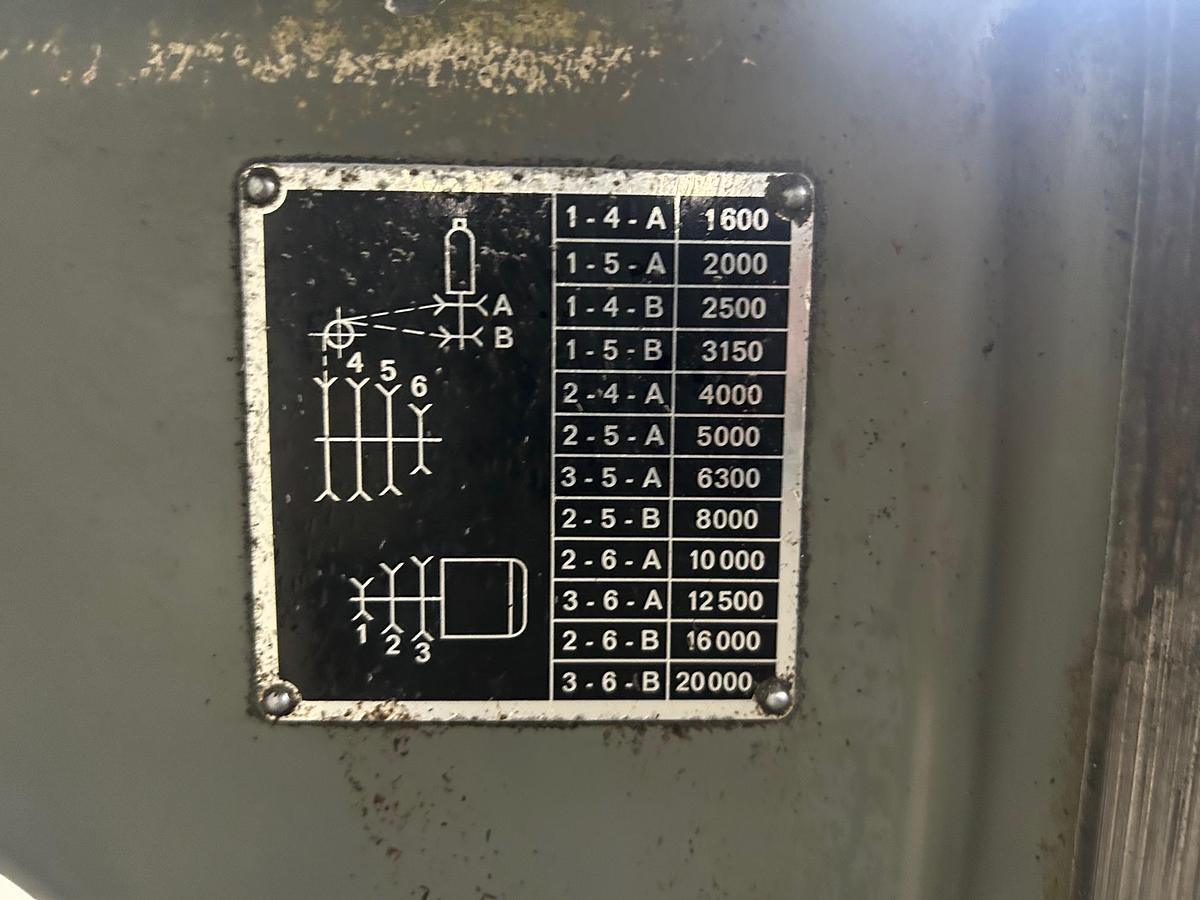

| Spindle Speeds | 1900 - 15000 RPM |
| Small / large transmission ratio | 1:1 / 1:50 |

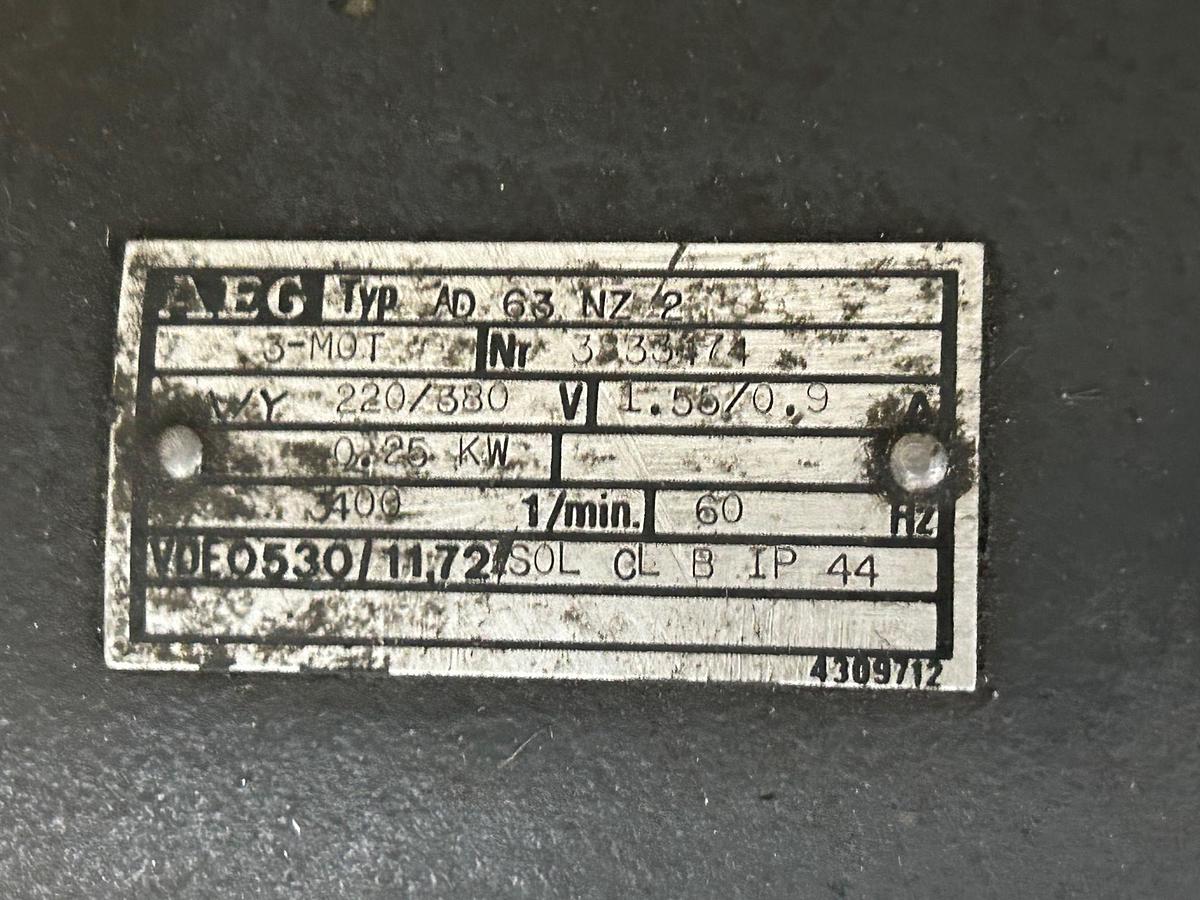

| Drive Power | 0,2 kW |
| Dimensions | 1235 x 1075 x 1240 mm |
| Approximate Weight | 250 kg |
