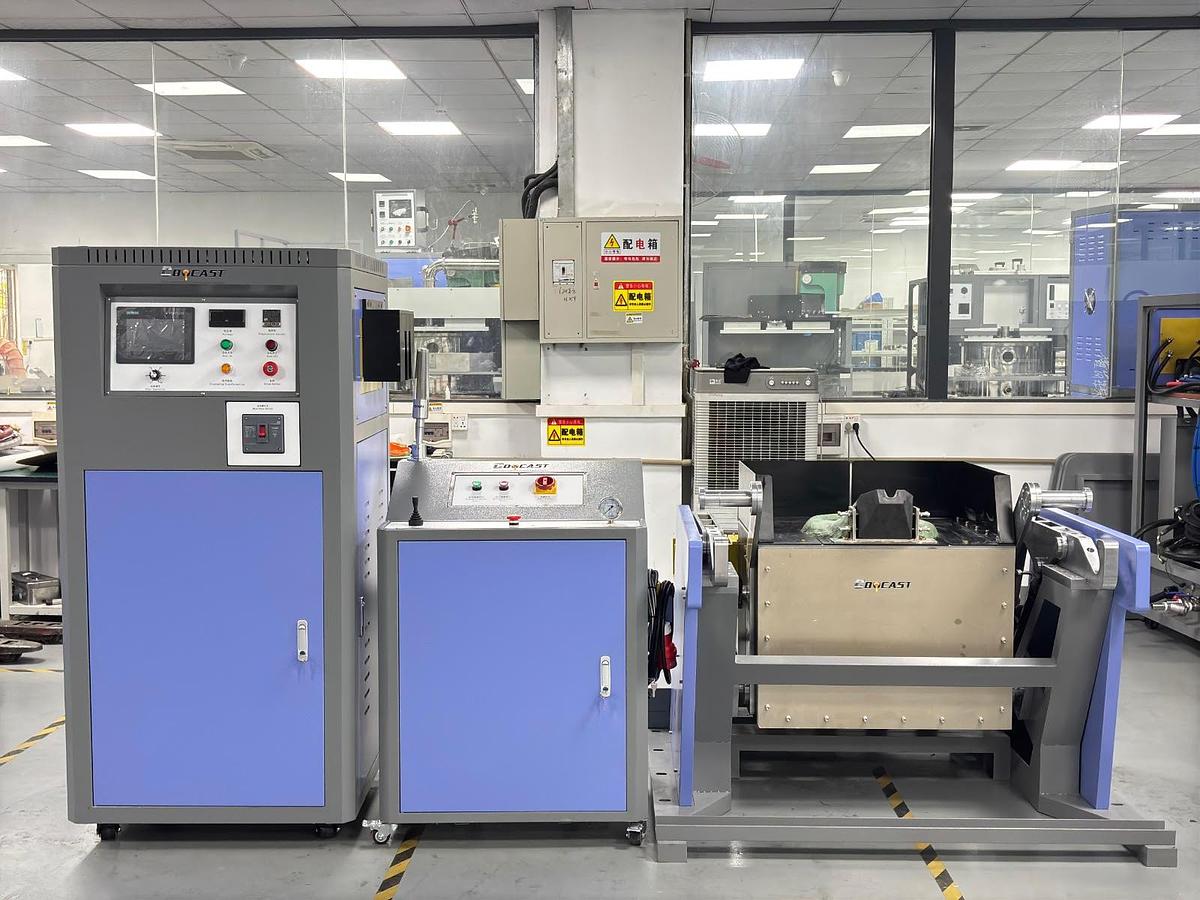

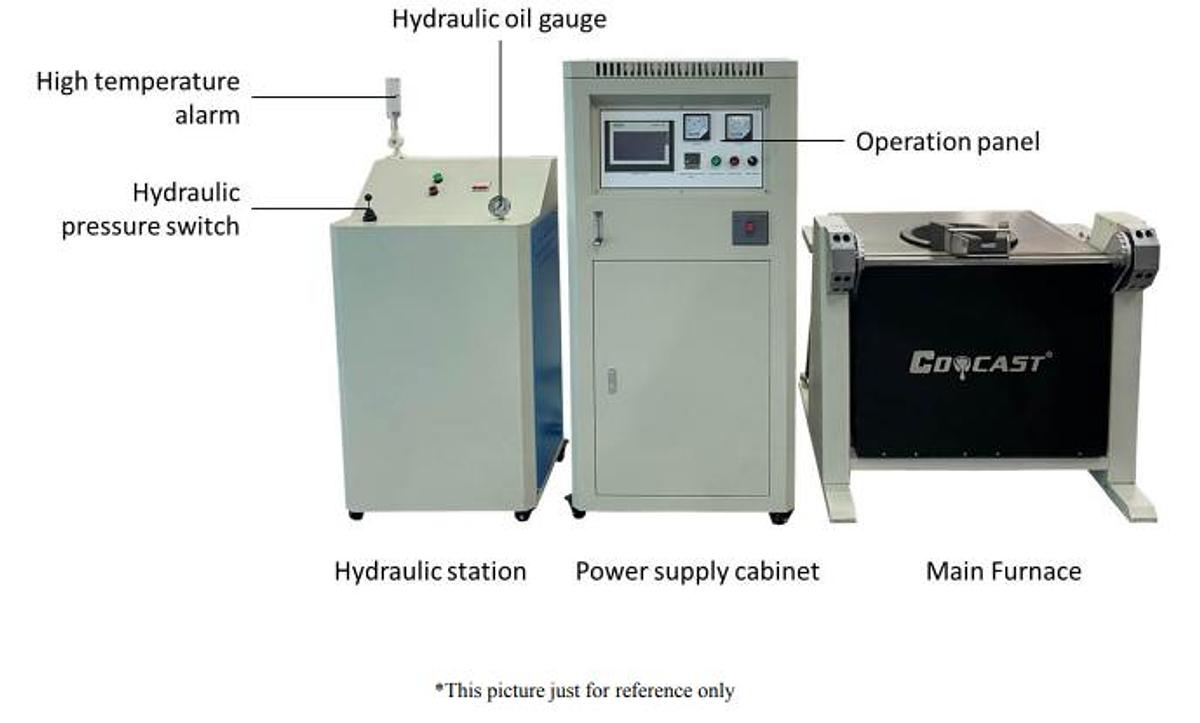

Silver Induction Melting Hydraulic Tilting Furnace - 3,000oz Ag Capacity

• With Thermocouple testing system
• Simens Touchscreen Control
• With Integrated power supply cabinet

Equipped with various safety alarm functions, over-current, over-pressure, water shortage, high temperature alarm, in case of emergency, the furnace can automatically stop running to guarantee the operation safety.

Crucible Size:

• Upper Outer Diameter: 340mm
• Upper Inner Diameter: 280mm
• Bottom Outer Diameter: 200mm
• Total Height: 365mm

Hydraulic Tilting Furnace Mechanism:

• Capacity Silver: 80KG
• Crucible Silicon Graphite Crucible
• Hydraulic tilting & steel frame furnace body
• Remote tilting control system
• Hydraulic power supply complete with valves, pump motor fluid, tanks
