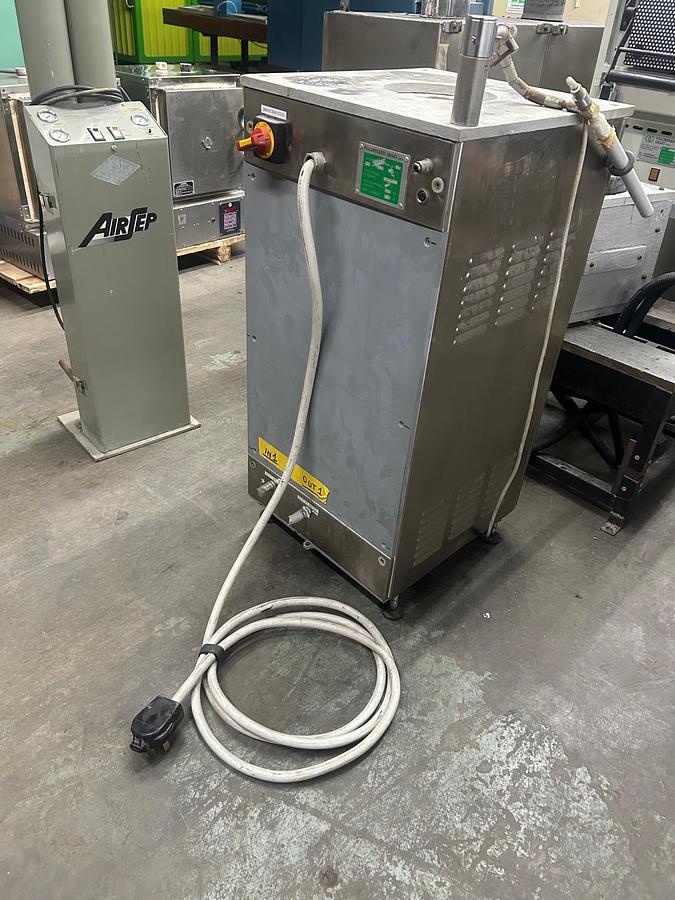

Italimpianti FIM/10NT Induction Melter / Melting Oven Furnace, New 2010
Italimpianti FIM/10NT Induction Melter / Melting Oven Furnace, New 2010
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Specifications

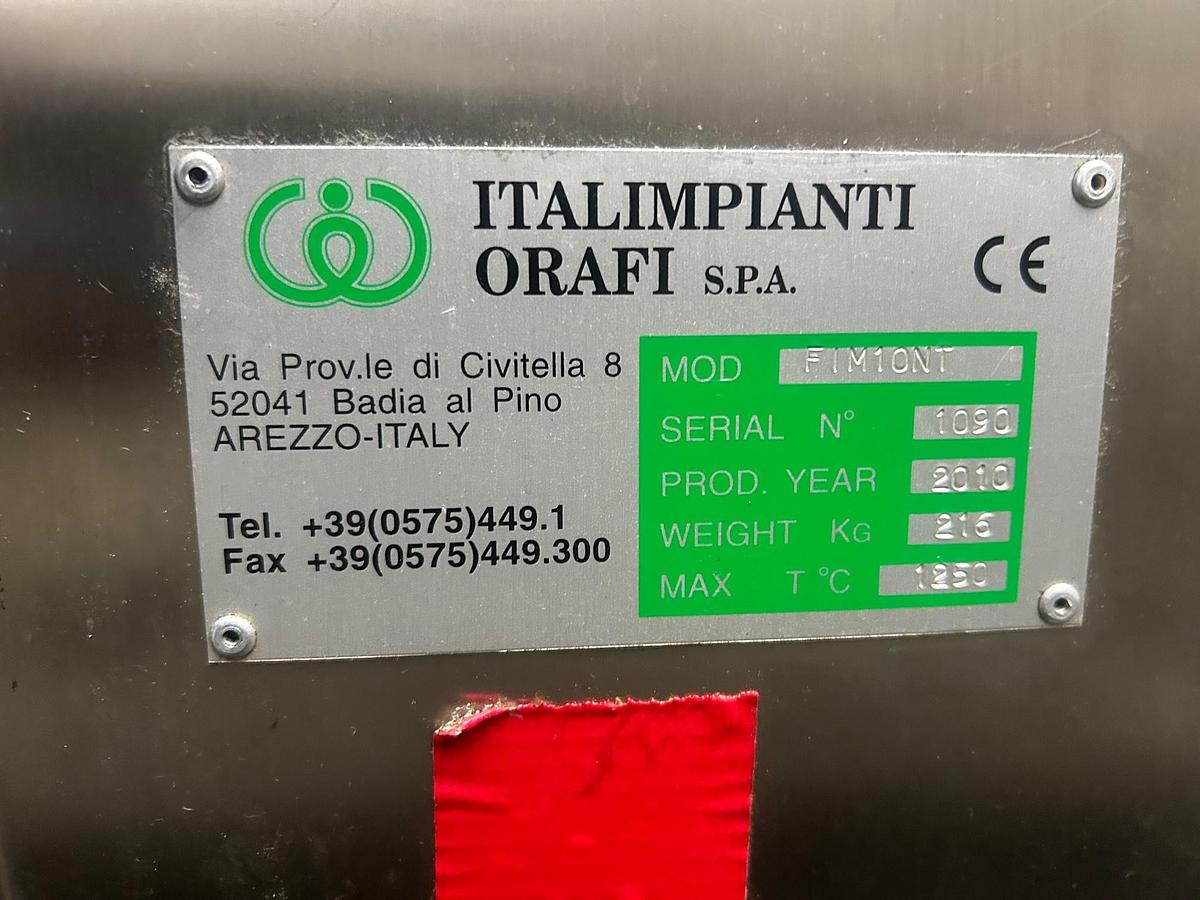

| Manufacturer | Italimpainti |
| Model | FIM/10NT |
| Year | 2010 |
| Condition | Used |
| Serial Number | 1090 |
| Stock Number | 779519 |

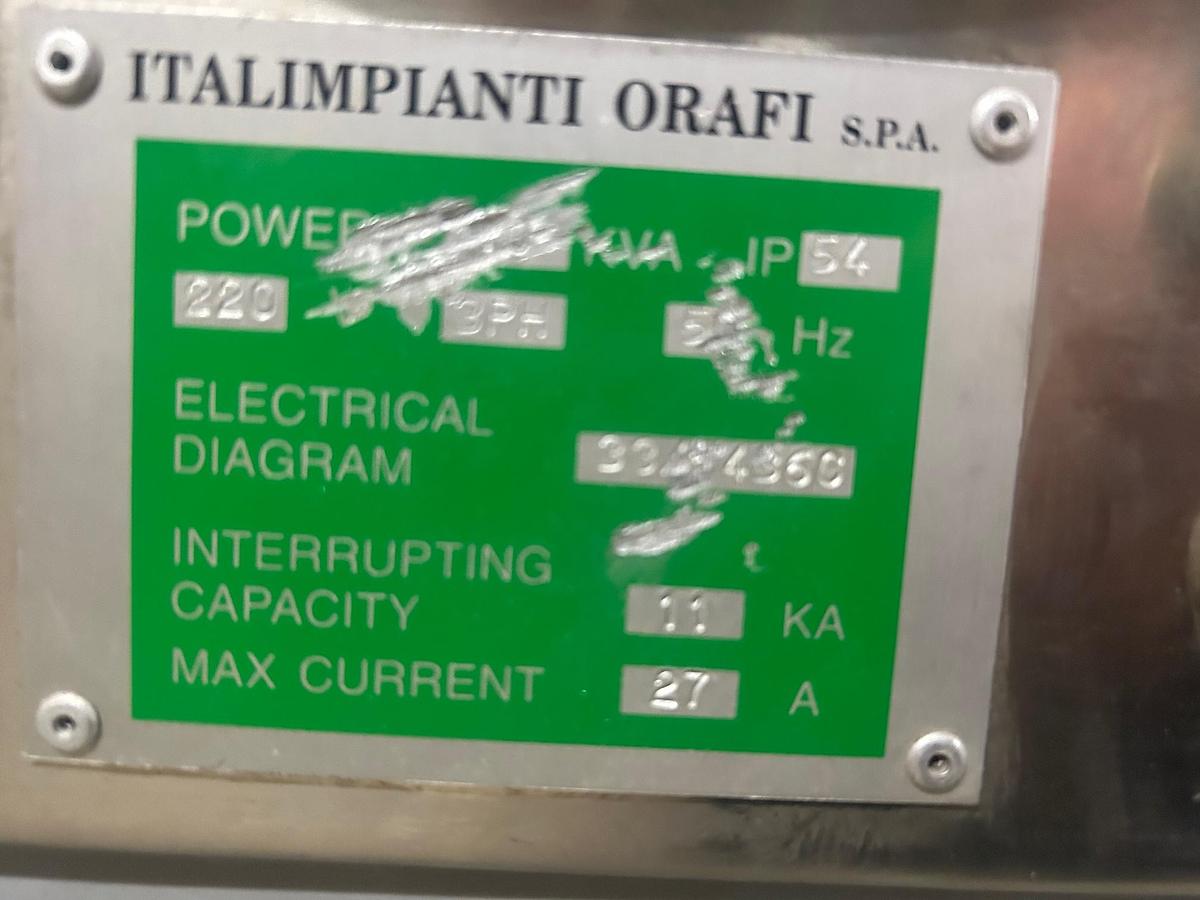

| Power supply | 220 Volt, 3 Phase |
| Absorbed power | 10 kW |
| Power output | 9.5 kW |

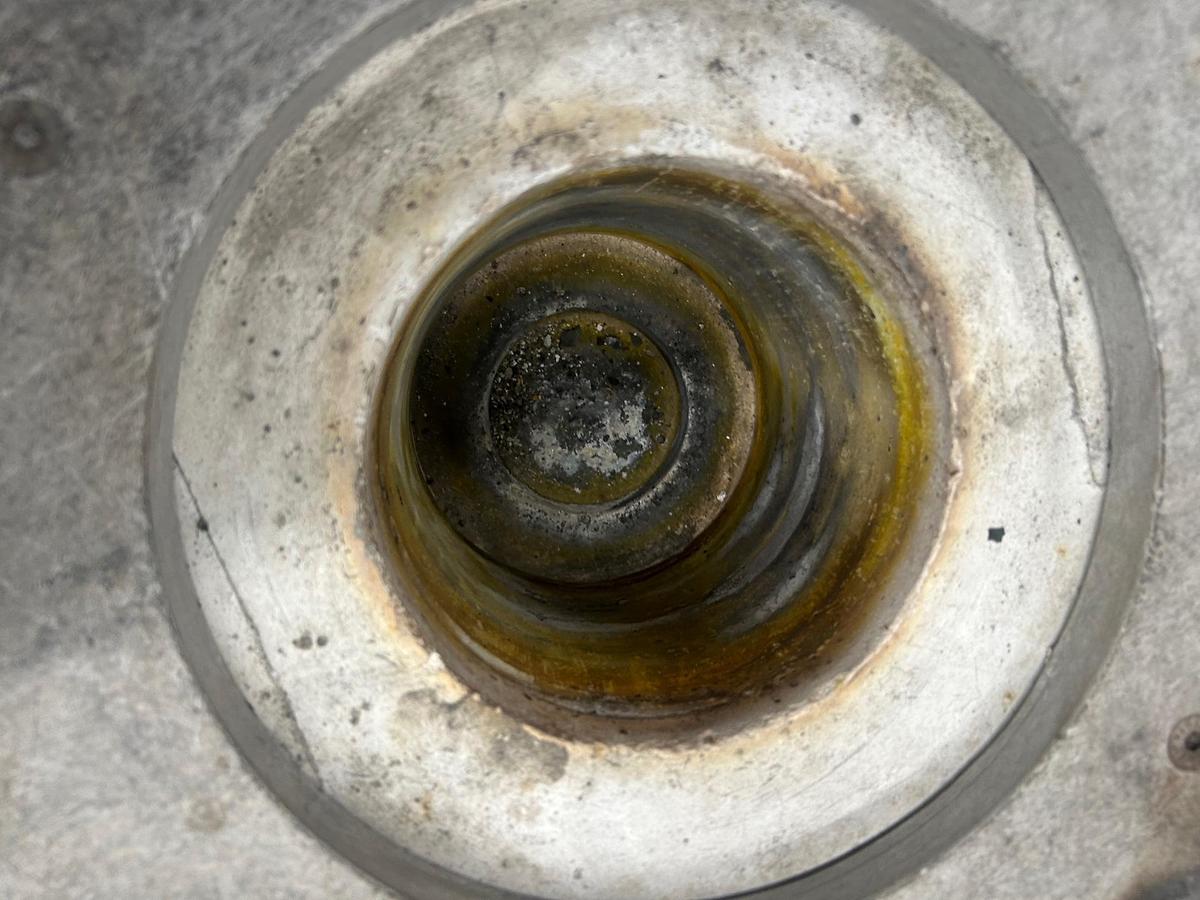

| Useful capacity - graphite crucible (kg Au 18 kt) | 10 |
| Useful capacity - silicon carbide crucible (kg Au 18 kt) | 10 |
| Melting time at max load (minutes) from cold | 15 |
| Temperature measurement | T/O |
| Required cooling power (frig/h) | 3800 |
| Chiller for 8 hours working | FRIGO 15 |
| Minimum flow rate @25 °C (l/min) | 20 |
| Overall Dimensions (mm) | 485 x 510 x 915 |
| Weight | 216 Kg |
