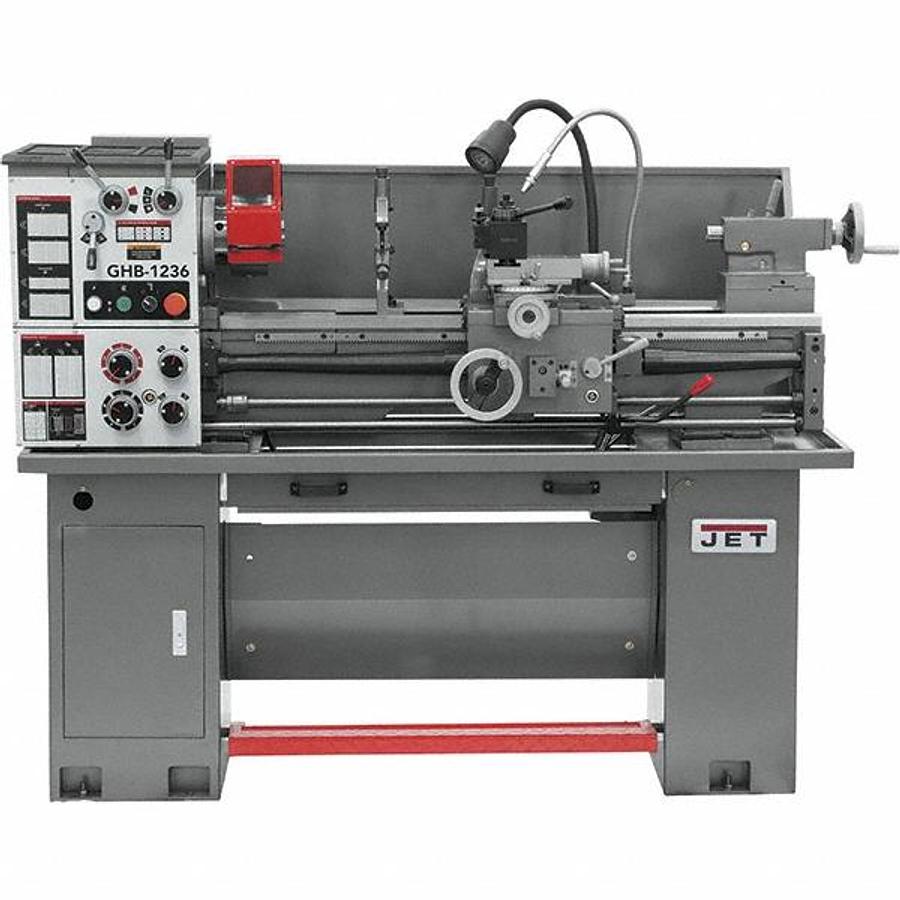

Jet GHB-1236 12" x 33" Bench Lathe with Geared Head, 2HP

Jet GHB-1236 12" x 33" Bench Lathe with Geared Head, 2HP

Location:Ex-Factory

or
Call 1-800-619-GOLD

Description

GEAR HEADED BENCH LATHES


The JET GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability.


JET Geared head bench lathes are designed with an enclosed gearbox for smooth, quiet operation. precision roller bearings that support the hardened and ground spindle resulting in tight tolerances.


Show All

Specifications

ManufacturerJet
ModelGHB-1236
Year2025
ConditionNew
Stock Number779513
PhaseSingle
Spindle Speed ControlGeared Head
Bed Width (Inch)7.1200
Bed Width7.12 in
Distance Between Centers (Inch)33
Spindle Bore Diameter (Inch)1-9/16
Cross Slide Travel (Inch)5-1/2
Gap Length (Decimal Inch)8.7500
Gap Length8.75 in
Swing (Inch)12
Minimum Spindle Speed75
Spindle Nose DesignationD1-4
Maximum Spindle Speed1400
Overall Height58 in
Overall Depth30 in
Minimum Metric Pitch (Decimal Inch)0.4000
Number of Inch Threads36
Minimum Metric Pitch0.4 in
Spindle Taper Size5MT
Tailstock Taper Size3MT
Tailstock Travel (Decimal Inch)3.5000
Tailstock Travel3.5 in
Maximum Threads Per Inch60
Min. Longitudinal Feed Per Rev. (Decimal Inch)0.0019
Overall Depth (Inch)30
Overall Length (Inch)66
Max. Longitudinal Feed Per Rev. (Decimal Inch)0.0472
Maximum Longitudinal Feed Per Revolution0.0472 in
Minimum Cross Feed Rate Per Revolution0.0014 in
Min. Cross Feed Rate Per Revolution (Decimal Inch)0.001400
Max. Cross Feed Rate Per Revolution (Decimal Inch)0.0116
Maximum Cross Feed Rate Per Revolution0.0116 in
Swing Over Cross Slide (Decimal Inch)7.5000
Swing Over Cross Slide (Inch)7-1/2
Swing Over Gap (Inch)18
Swing Over Gap (Decimal Inch)18.0000
Swing Over Gap18 in
