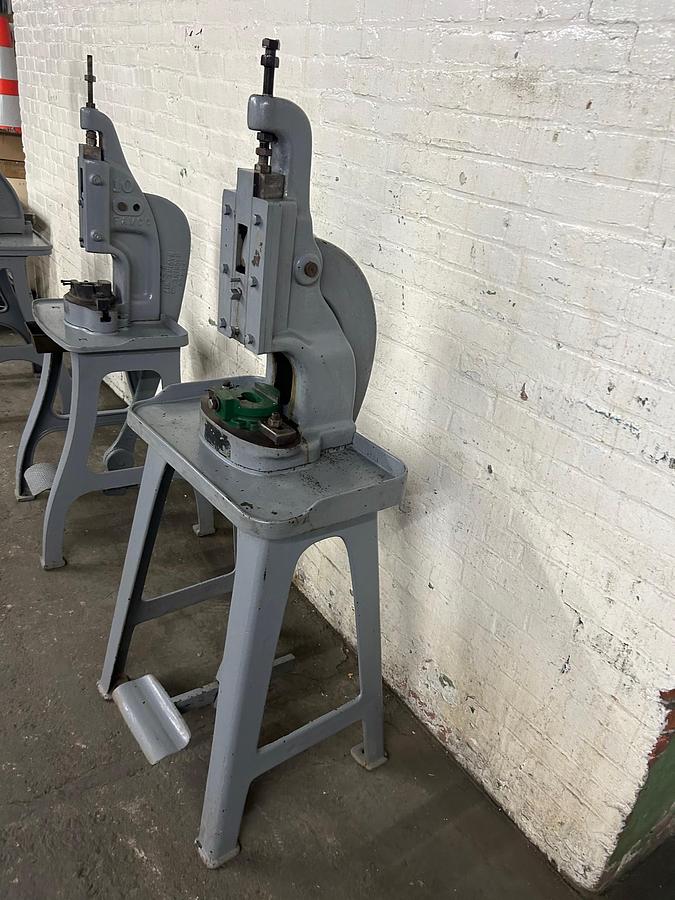

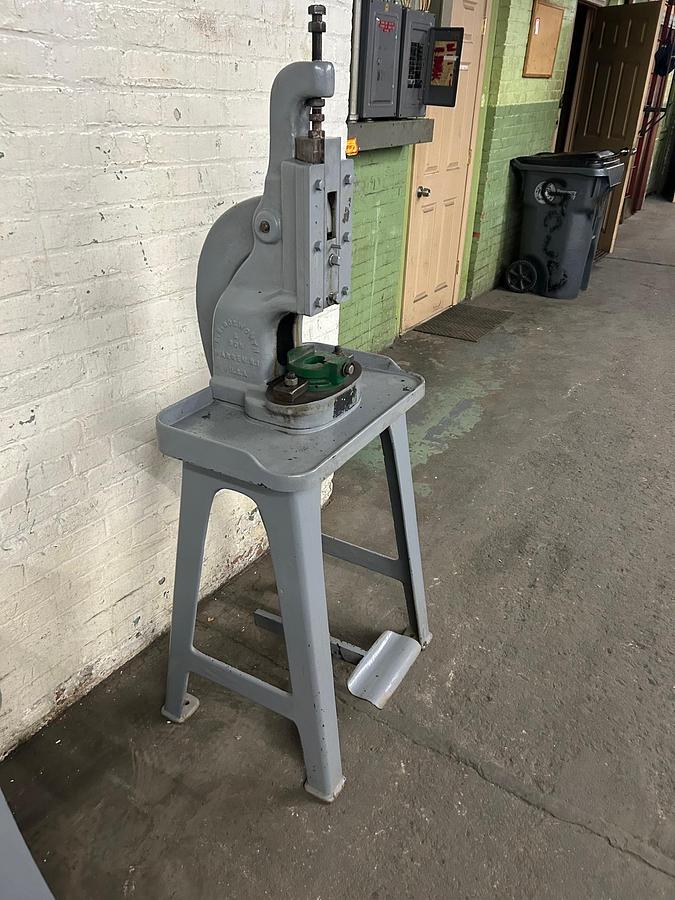

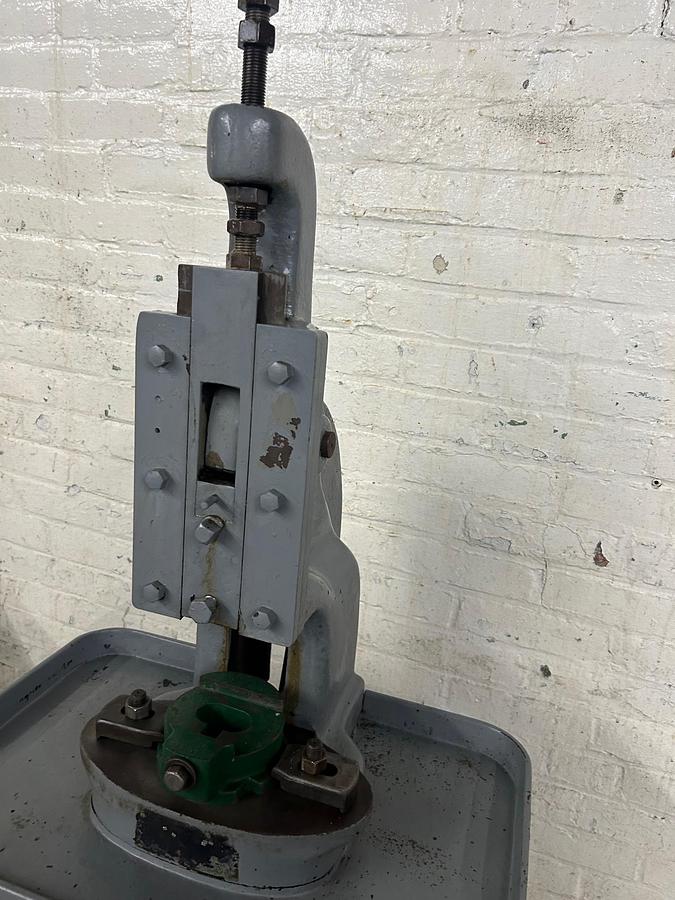

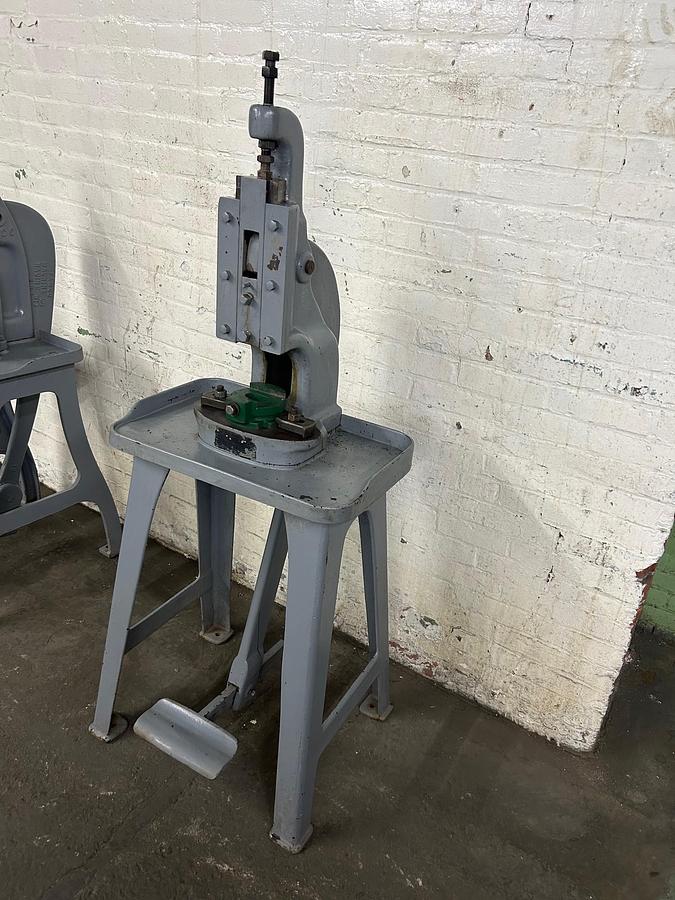

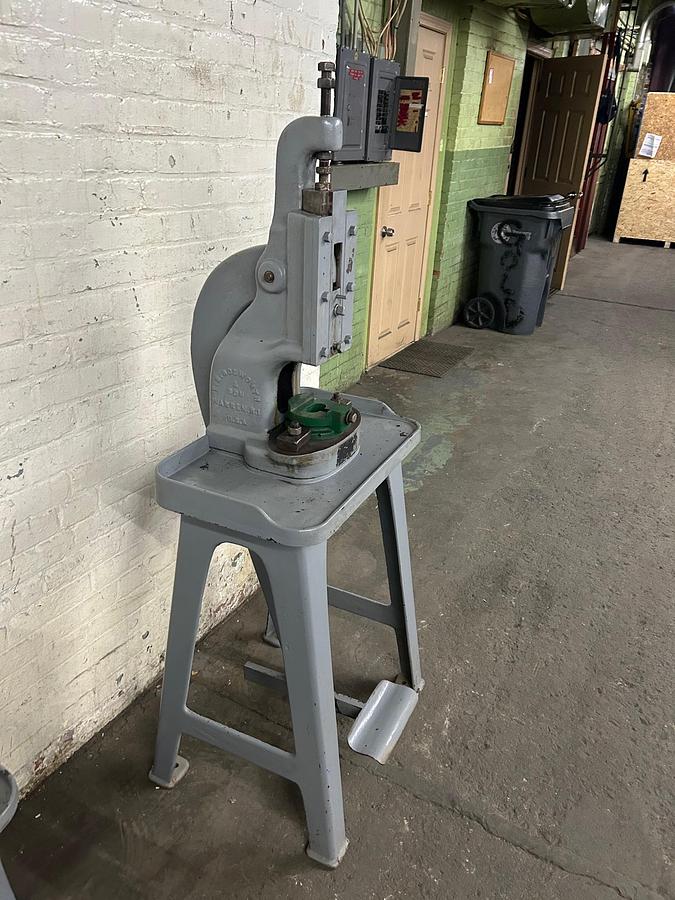

E.D. Bosworth & Son. Warren RI - Metalworking, Forming & Stamping 2.5 Ton Punch Press

E.D. Bosworth & Son. Warren RI - Metalworking, Forming & Stamping 2.5 Ton Punch Press

Location:Pawtucket, RI

Description

Equipped With:

  • Adjustable stroke
  • Cast Iron Base
  • Foot operated Pedal
  • Estimated weight 450 Lbs



About the section ~  Famco bought out Royersford Excelsior, current day manufacturer. The machine is capable of many custom applications with the correct die / punch / trimming set including stamping, trimming, custom Mechanical Metalworking fabrication applications for the tool room . blacksmith, Jeweler and artisan home shop.


Recently taken from service out of a local tool and die shop Providence R.I. Now located at Gold Machinery 136 Newell ave Pawtucket 02860. The machine has been inspected / tested here at our facility and is offered in excellent condition!


Tooling, Die dish and Shank holders are available at additional cost please enquire with your specific needs

Including 5/8”Shank holder Priced @ $100 each

½” shank Shank holder       Priced @ $100 each

3/8” shank Shank holder     Priced @ $100 each

Die dish                               Priced @ $150 each

We will palatalize and strap and cover Priced @ $100.

Shipping is additional or on your shipping account.

Specifications

ManufacturerE.D. Bosworth & Son.
ConditionUsed
Stock Number779507
Overall dimensions22" x 24" x 60" high
Approximate pressure2-1/2 tons
Capacityin soft steel: 1/2"
Size of table22" x 16"
Bore in ram13/16" diameter
Maximum stroke2"
Distance ram to base6"
Depth of throat from center of ram3"
Estimated weight360 lbs.
