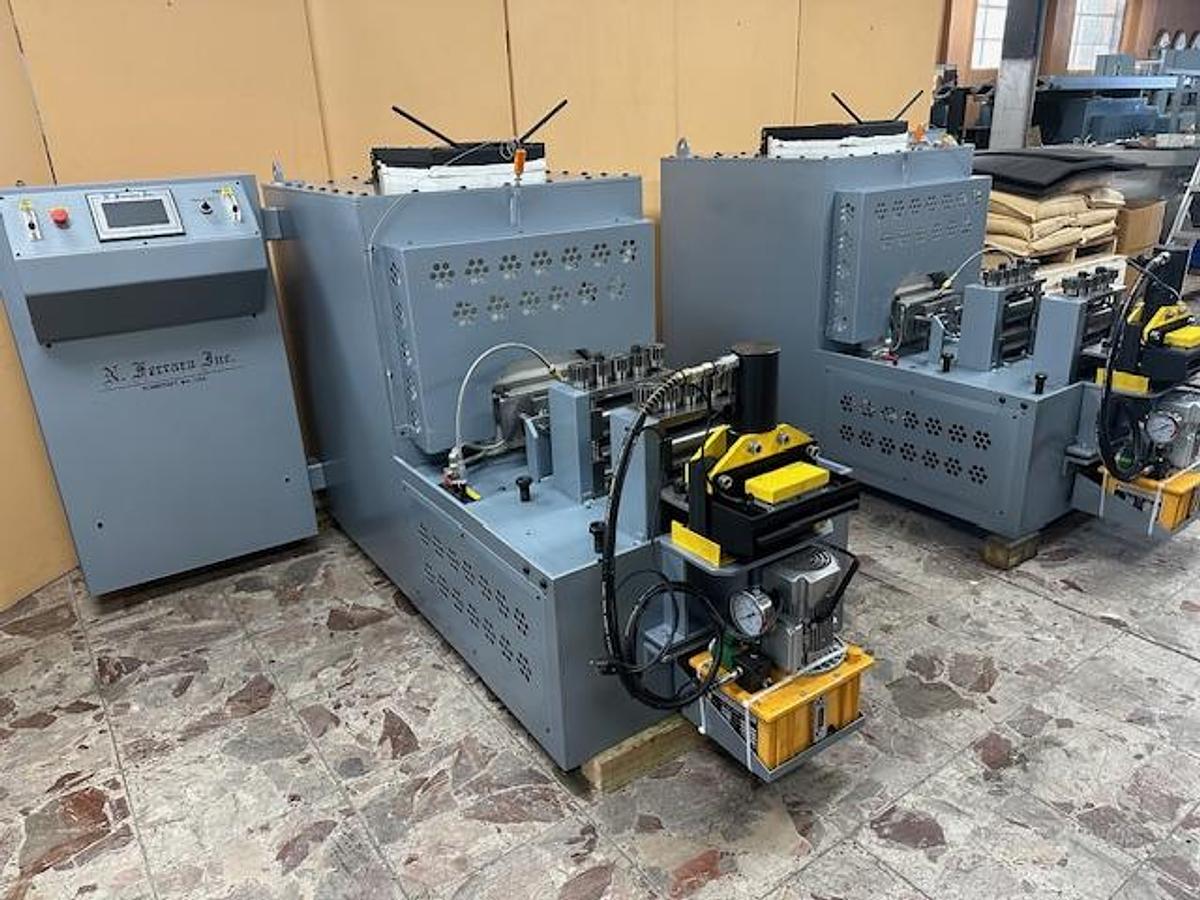

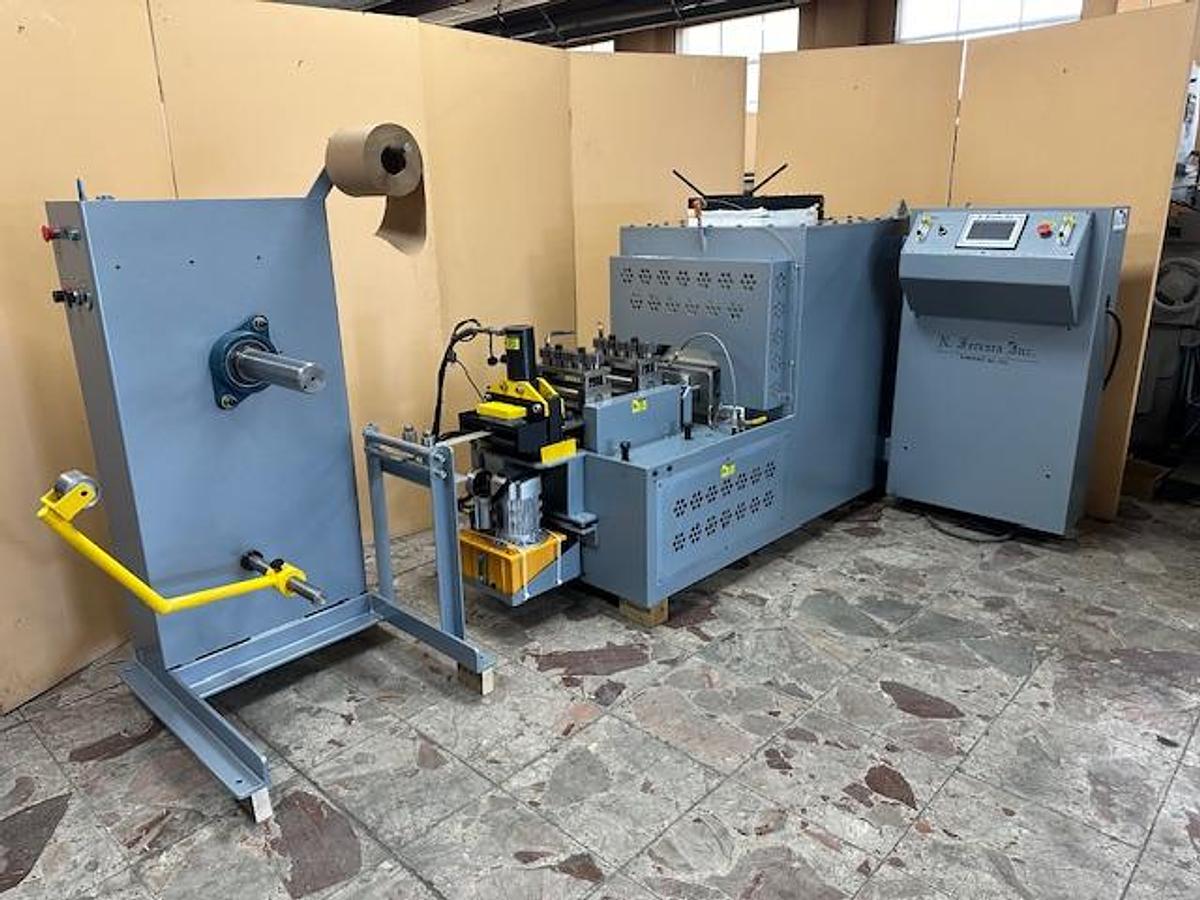

Continuous Casting Machine 90Kg Capacity for Gold, Silver, Copper

Description

Additional Details:

Panel Board:

Will be equipped with all necessary switches and controls for efficient operation. The panel will be wired and instruments will be tested before leaving our plant.

Cooling System:

Cooling system specially designed pressure less cooling chamber including prevision flow meter control to monitor accurately the cooling and water temperature gauges with micro-processor control to activate the alarm system. Water pressure control is also interfaced with the alarm system.

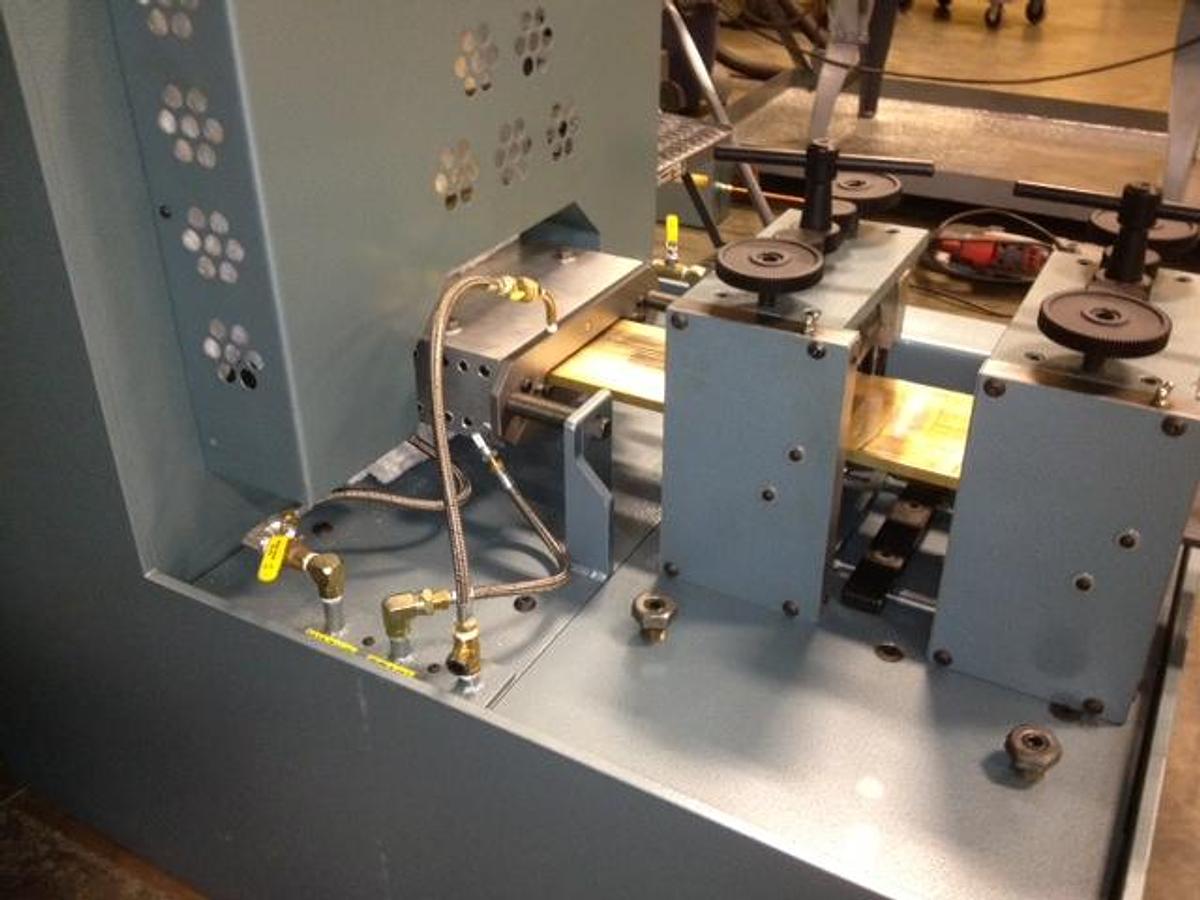

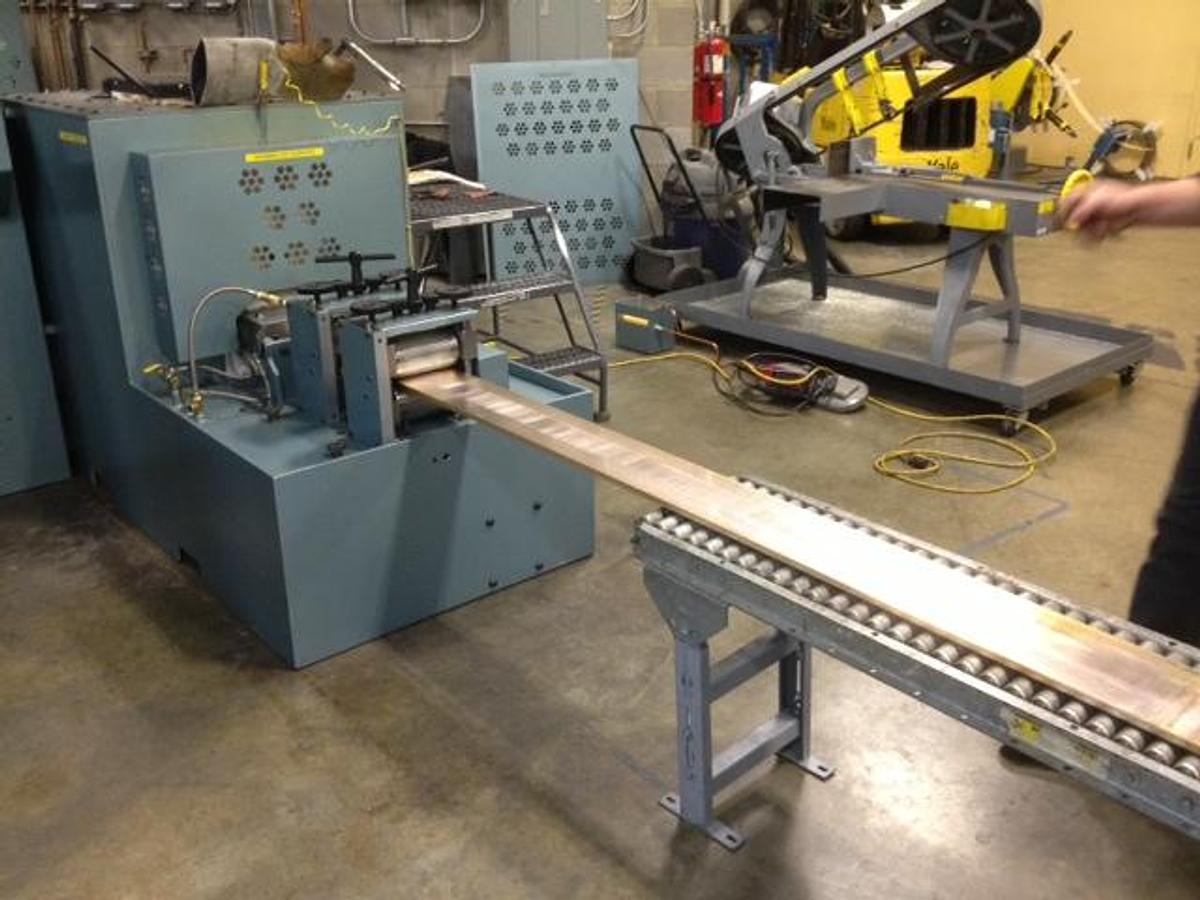

Withdrawal System:

The withdrawal mechanism is designed with mechanical and hydraulic interface. The motor drive is controlled electronically with processor pulse.

Crucible:

Manufacture from high purity. Graphite is machined to precision tolerance.

Dies:

Casting Dies are precision manufactured from high density graphite.

Specifications

Model	90KG
Year	2025
Condition	New
Stock Number	779483
Crucible Size	90Kg
Maximum Casting Capacity	4" (100mm)
Output Capacity	100Kg per hour
Voltage	208 / 220 / 240, 50-60 CY
Kw Power	40
Amp Power	140
Maximum Operating Temperature	1260º C (2300º F)
Furance Box	Heavy duty HR steel construction with removable top.
Heating Element	The heating element is constructed of silicone carbide. The element is designed to provide trouble free life. The element has a unique design the easiest and shortest way to replace. (normal replacement time is 15 min. with Furnace HOT)
Insulation	The furnace chamber contains multiple courses of high quality refractory and thermal efficiency.
Atmosphere Control	Internally the Furnace operates under atmosphere inert gas. This will minimize oxidation of graphite crucible and die.
Heat Zone	Multi Zone heating system for better heat curve accuracy.
Temperature	Microprocessor temperature control with time proportion and cycle rate calibrated for Type K thermocouple 0 to 2,300o F for close line control. (includes HI-Limit safety)
Overall Dimensions	60" L x 40" W x 48" H
Weight	2800 lbs. (1270 kg)
