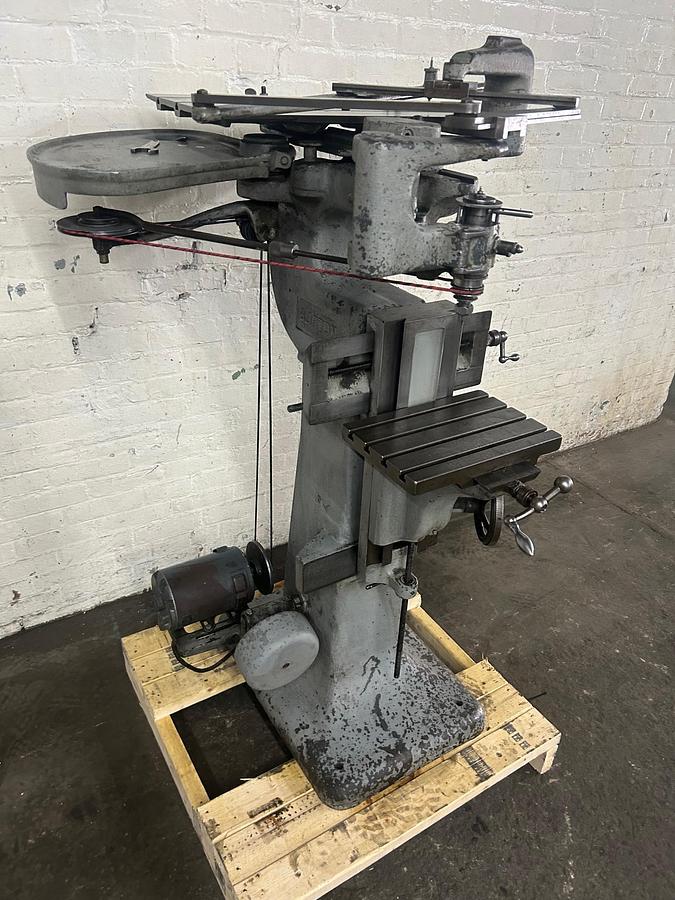

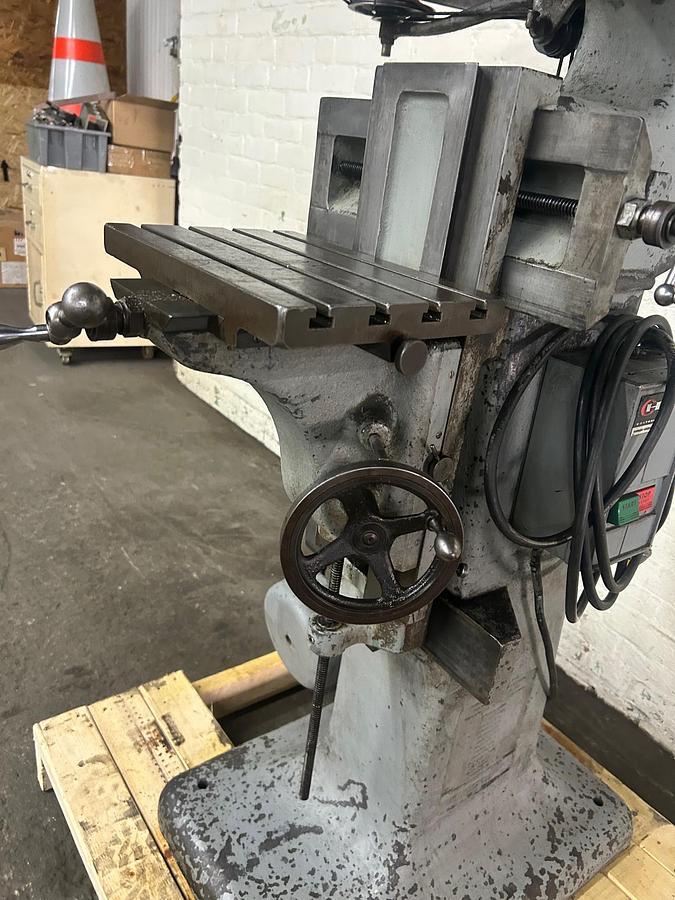

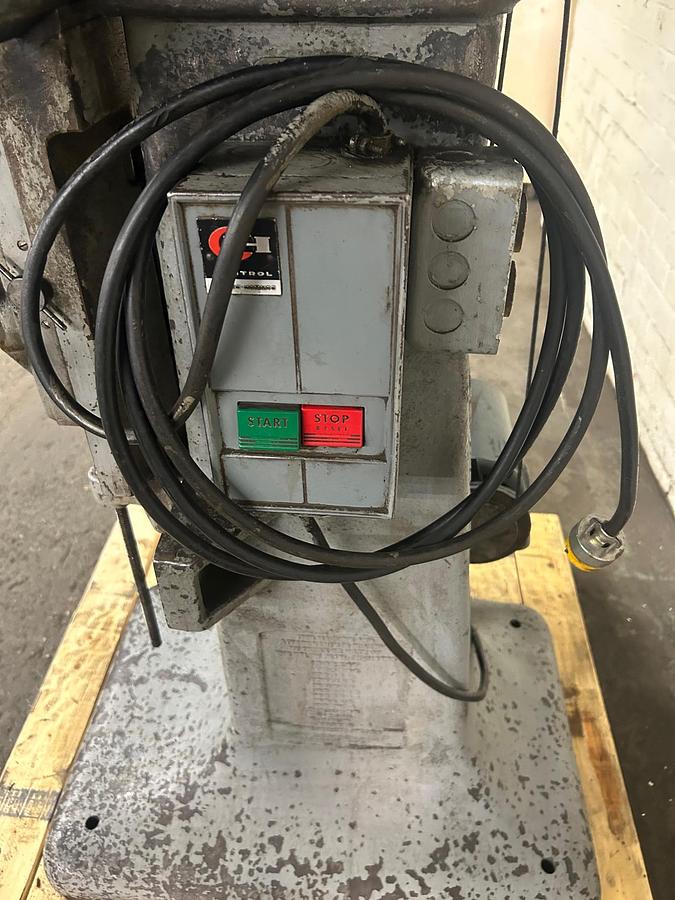

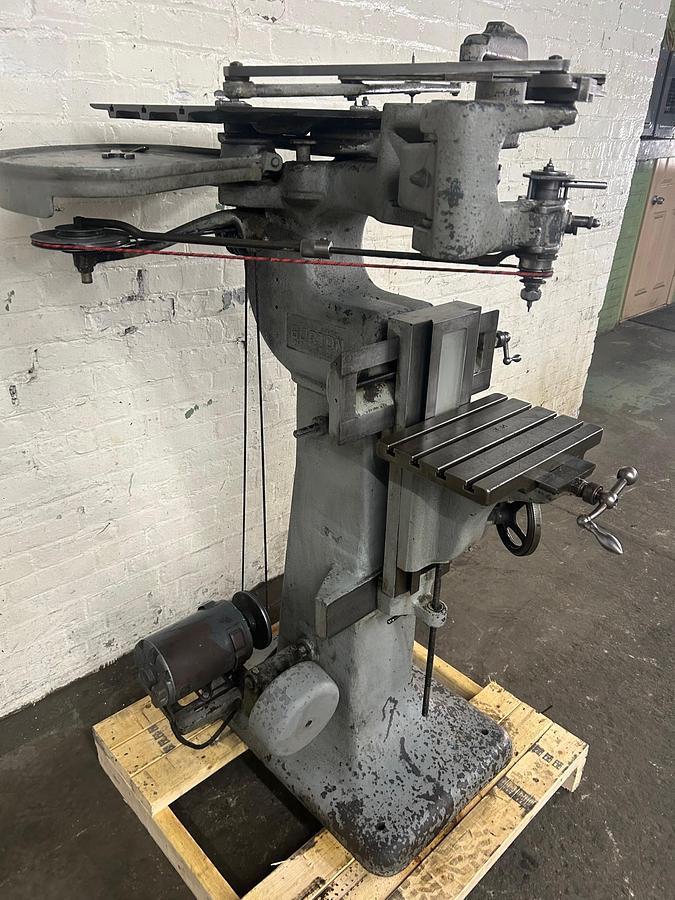

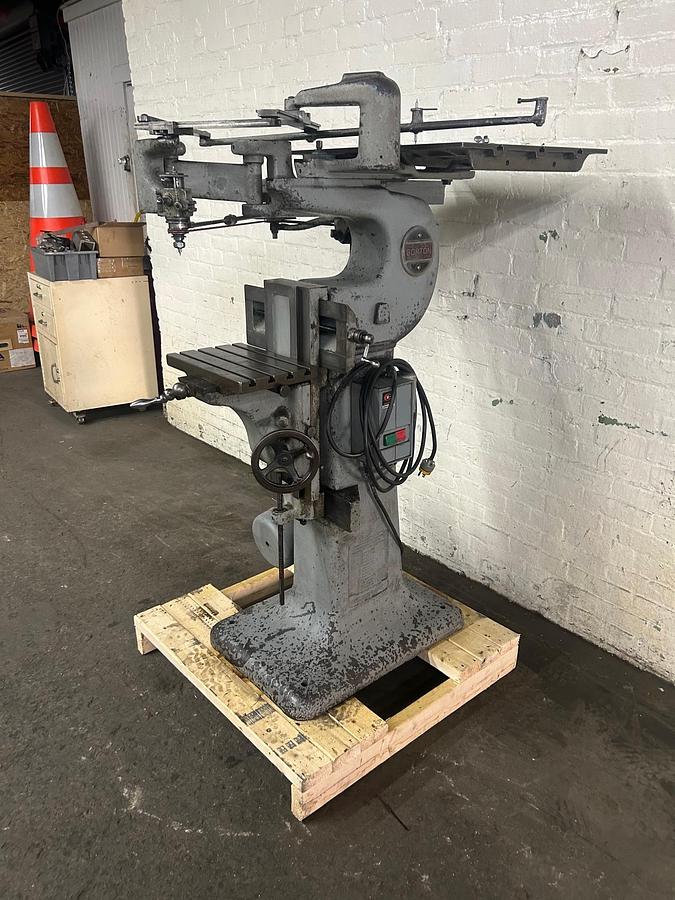

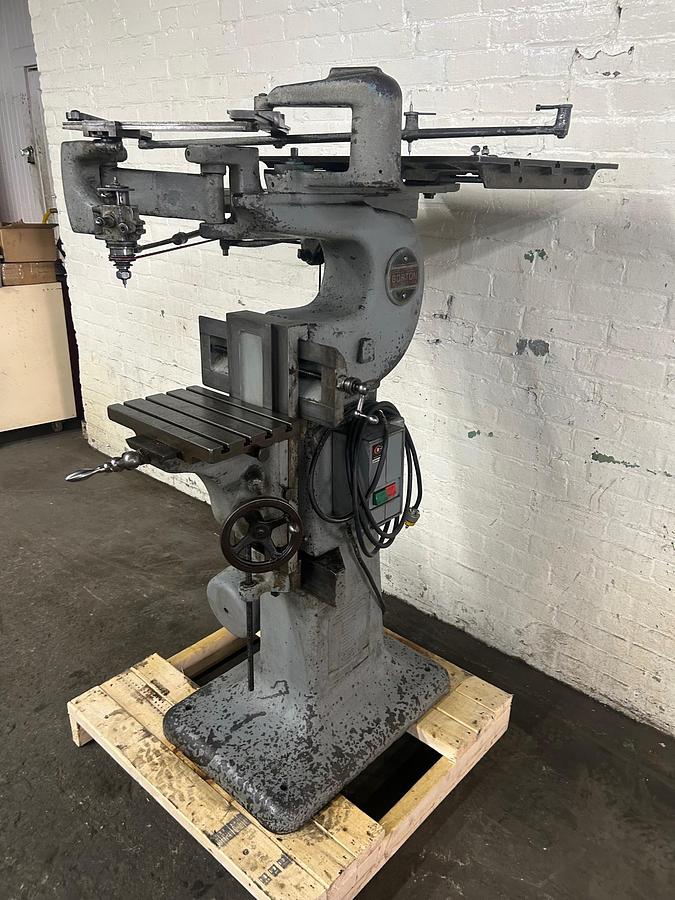

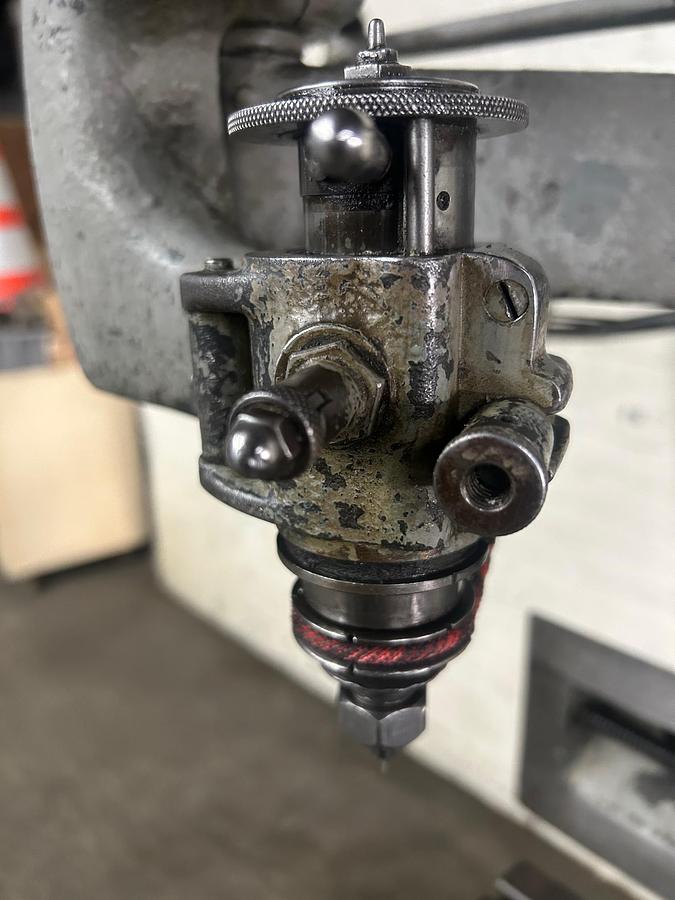

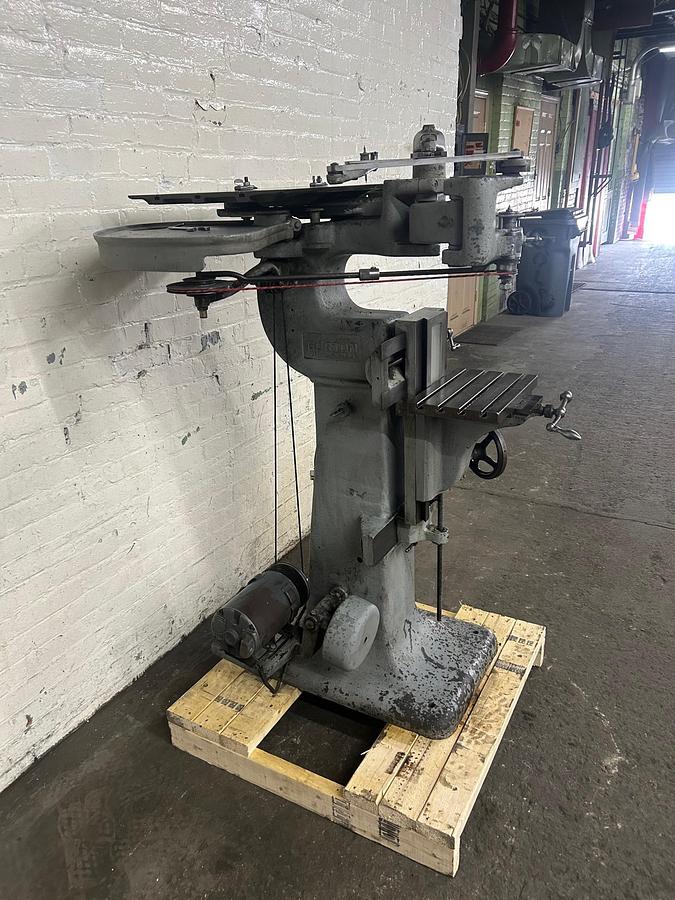

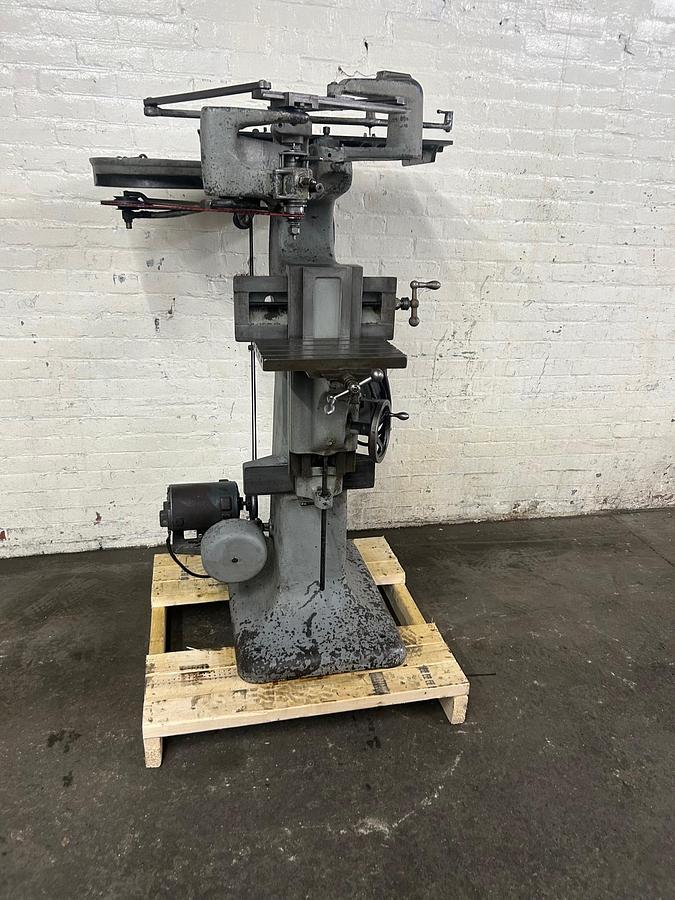

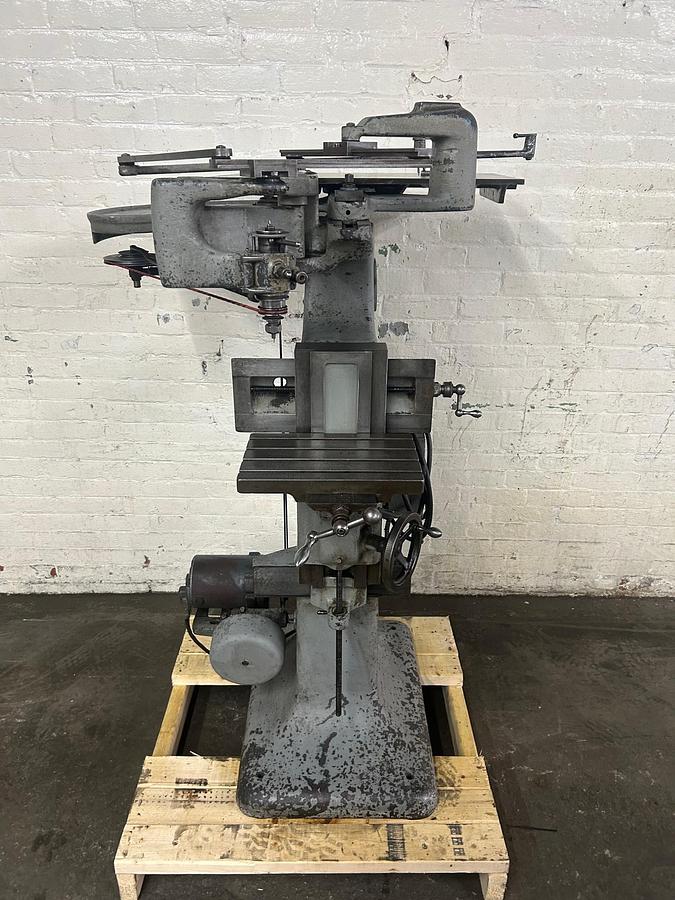

Gorton 2-Dimensional Pantograph/Engraver Model P1-2
Gorton 2-Dimensional Pantograph/Engraver Model P1-2
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description
Equipped with Cast iron base
Specifications
| Manufacturer | Gorton |
| Model | P1-2 |
| Condition | Used |
| Stock Number | 779482 |
| Voltage | 115V/1PH/60HZ |
| Table working surface | 8" x 18" |
| Table dimensions, overall | 8-7/8" x 24" |
| Longitudinal feed capacity | 10" |
| Cross feed capacity | 8.75" |
| Vertical spindle feed | .31" |
| Vertical knee feed | 11.125" |
| Copy table cross movement | 5" |
| Slider head cross movement | 7.25" |
| Throat opening above column ways | 8" |
| Swing above column ways, maximum | 21" |
| Spindle nose to table, maximum | 11.625" |
| Spindle nose to table, minimum | 0" |
| (8) Spindle speeds, range | 4700 to 18,000 RPM |
| Motor | 1/4 HP |
| Overall dimensions | 35" x 42" x 48" high |
| Estimated weight | 640 lbs. |
