GOLD REFINING PLANT - 2 KG/BATCH – BY AQUA REGIA PROCESS

GOLD REFINING PLANT - 2 KG/BATCH – BY AQUA REGIA PROCESS

Location:Italy

Description

It can be used for refining both metal granules and powders.

Refining plant for gold alloys up to 2kg capacity of input material per batch.

It represents a versatile model of refining unit:

  • refining alloy by aqua regia with Au min. 65% and Ag max 15% content;
  • refining low karat alloy by inquartation.

Processing capacity (input material as powders): depending of the volume/specific weight


The Gold Refining Unit is made of the following components:

  • Polypropylene cabinet with integrated suction system for vapors
  • Loading tank for acids with tap

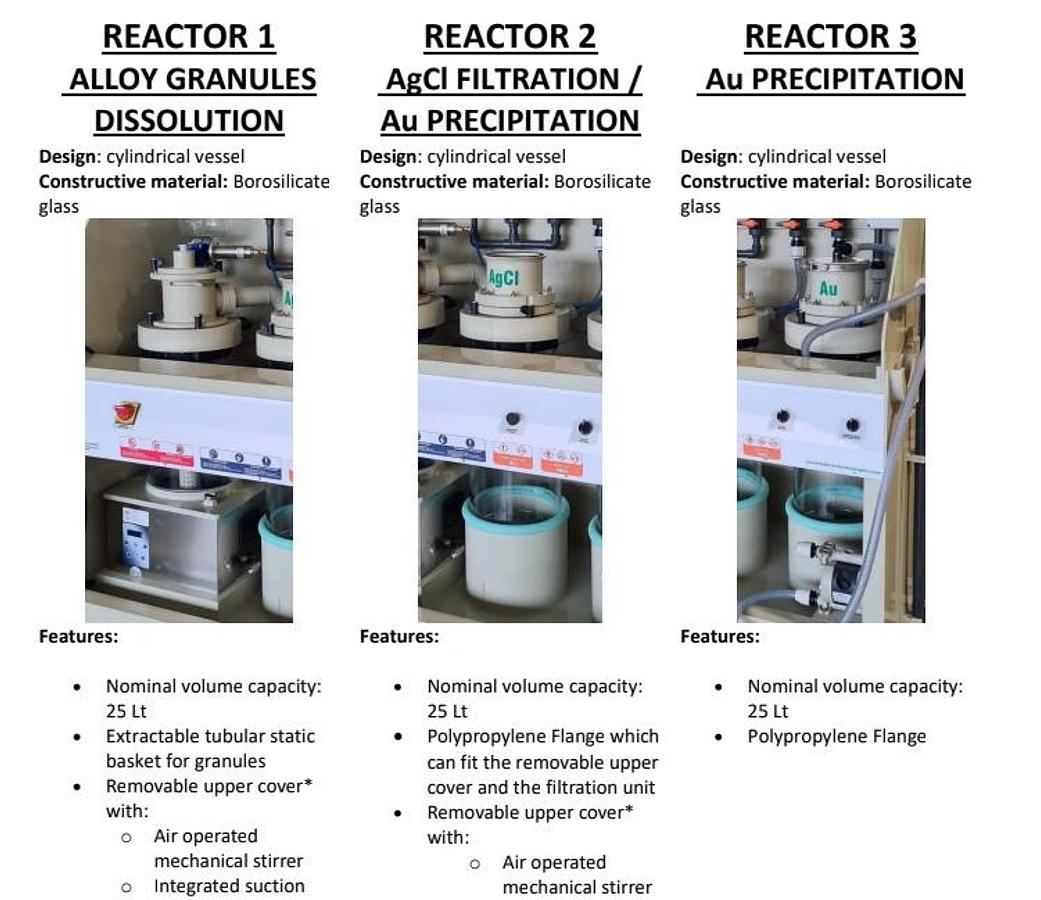

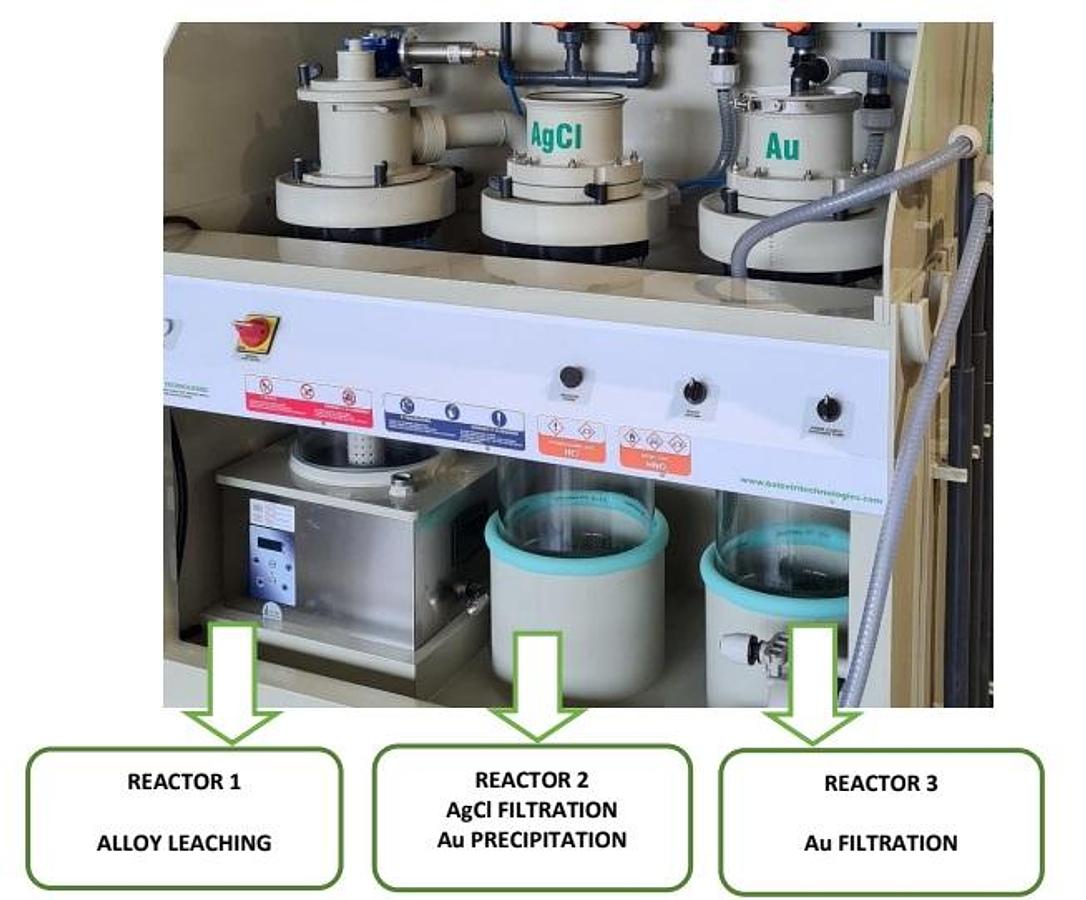

  • Reactor 1 for alloy leaching with heating system for quick and efficient digesting reaction
  • Reactor 2 for AgCl filtration and Au precipitation
  • Reactor 3 for Au filtration/effluent discharge

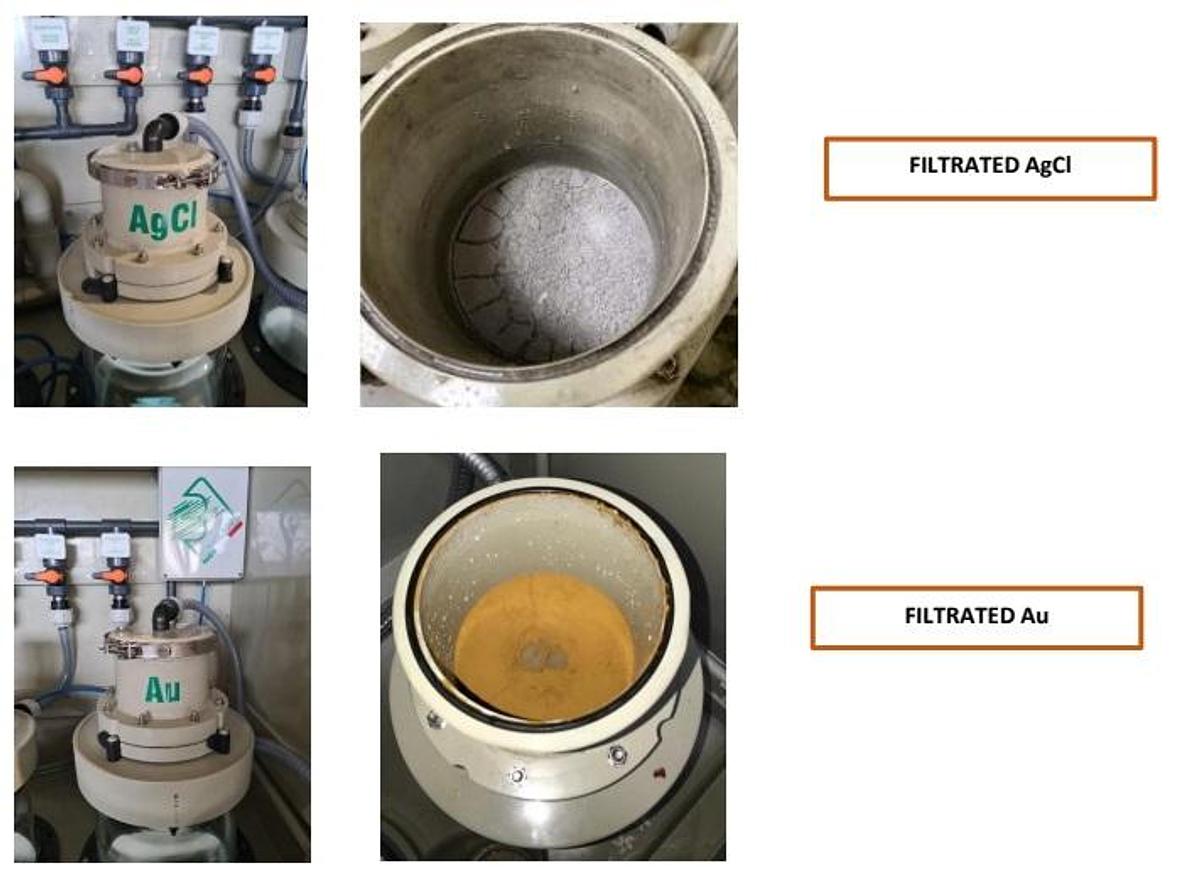

  • N. 02 Filter Units: one for silver as AgCl and one for pure Gold (AU ≥ 999.5)
  • N. 01 Automate dosage system for precipitation process

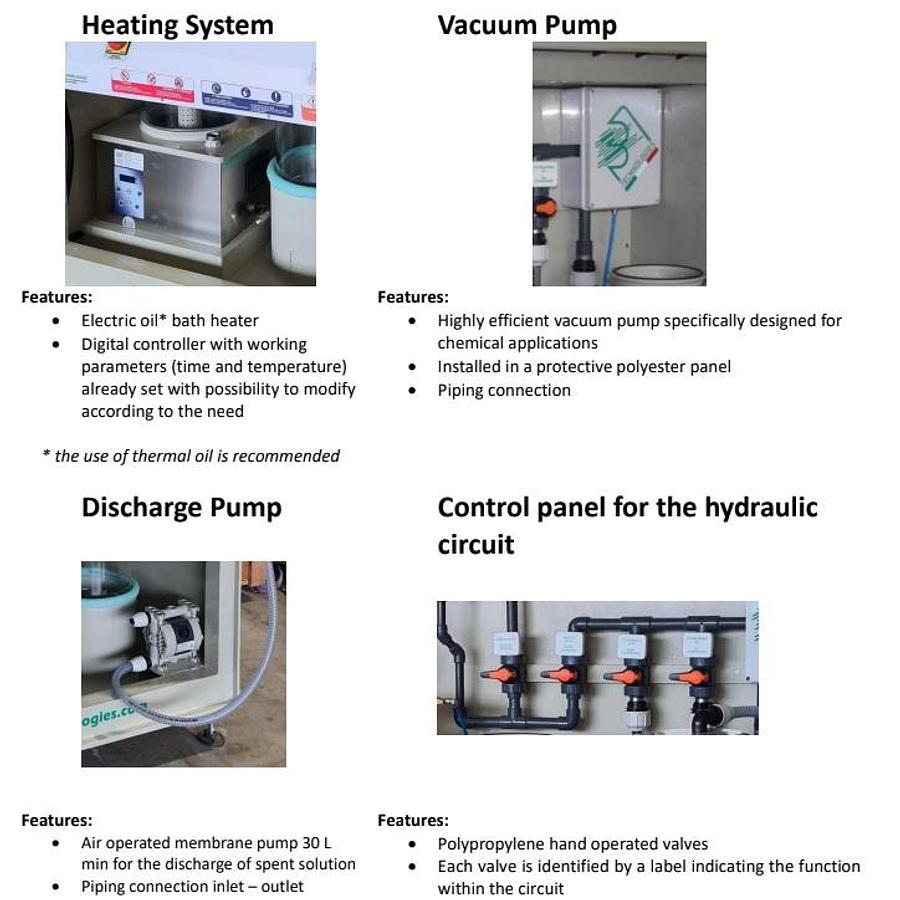

  • Devices included:
  • heating system: Oil bath heater for Reactor 1
  • vacuum pump for liquids transferring
  • valves panel for flow regulation
  • pneumatic control board
  • mechanical stirrer pneumatically activated
  • electrical control board
  • AODD discharge pump for effluents


CONTACT US TODAY FOR A QUOTE

Specifications

ManufacturerBaltestri Technologies SRL
ModelBT-AR-AU-002-A
Year2025
ConditionNew
Stock Number779481
Power Supply220V, 50/60Hz
Input Alloy CapacityMin.: 0.2Kg, Max.: 2Kg
Type of Alloy To Be RefinedAu Min.: 65%, Ag Max.: 10%
Purity YieldedMin 999,5/1000
Power1kW
Overall Dimensions60" x 74" x 32"
