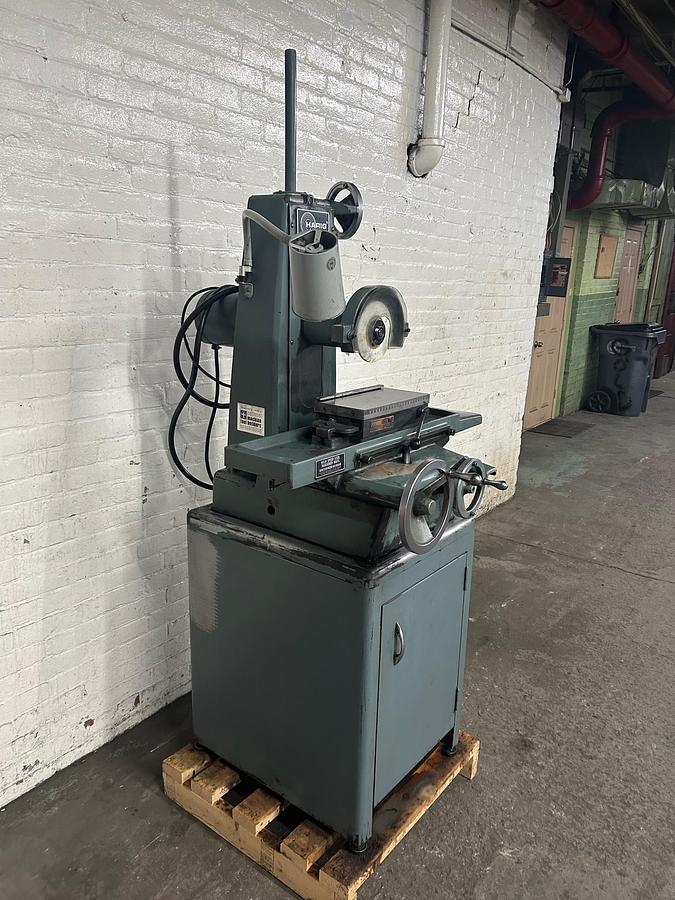

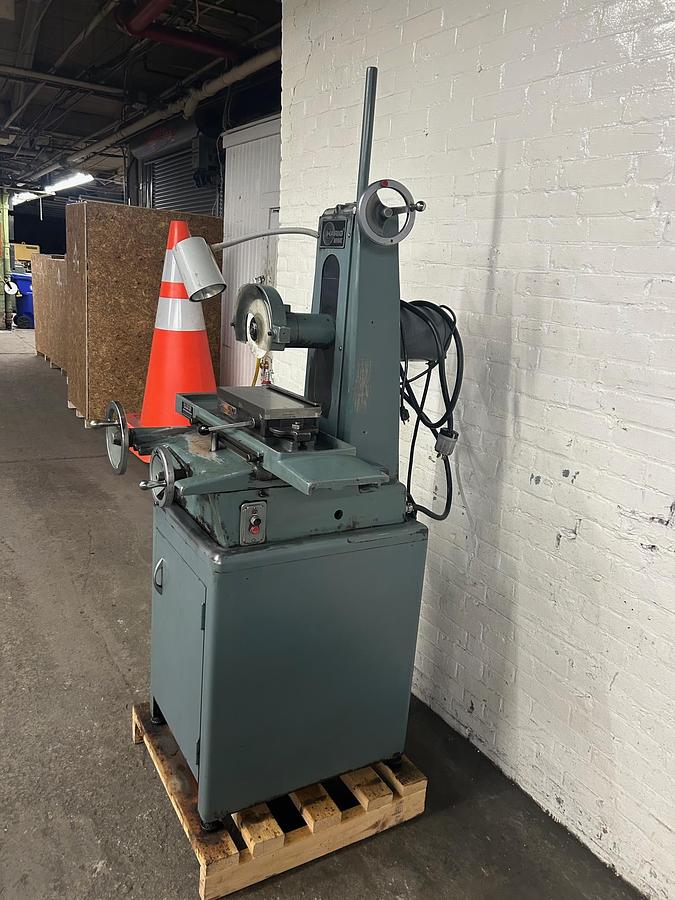

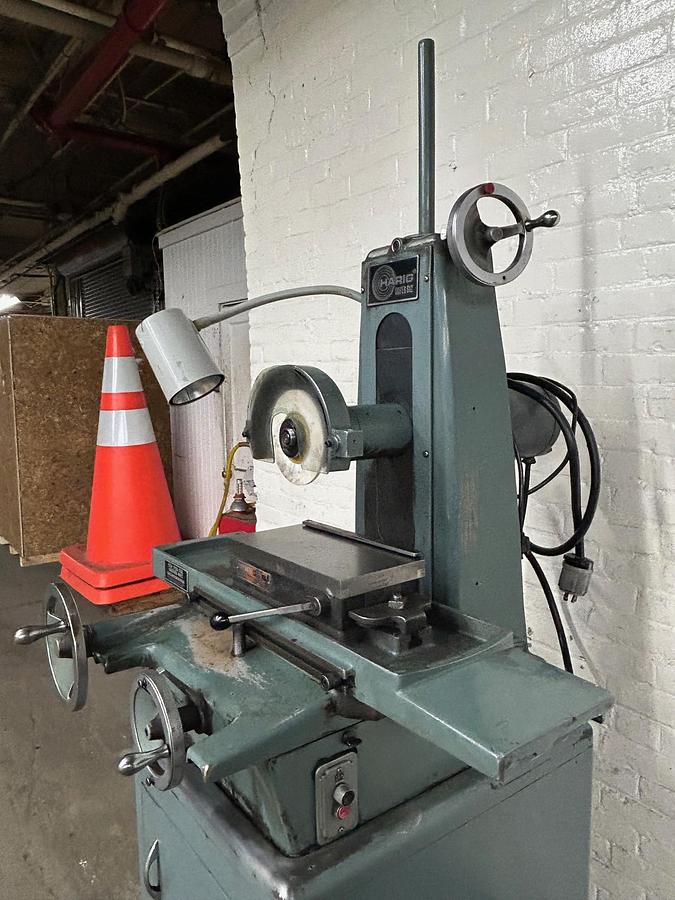

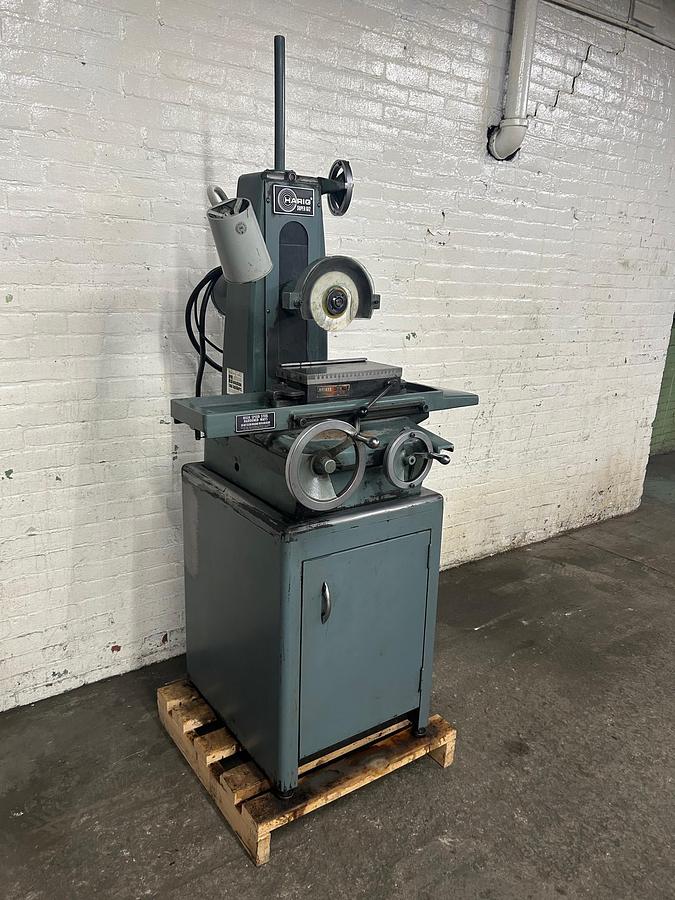

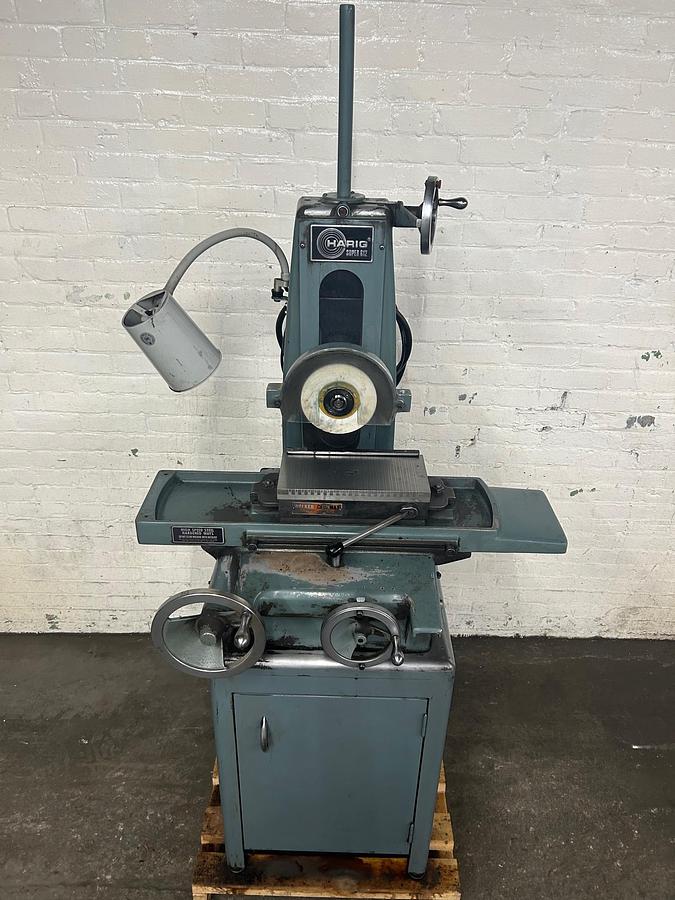

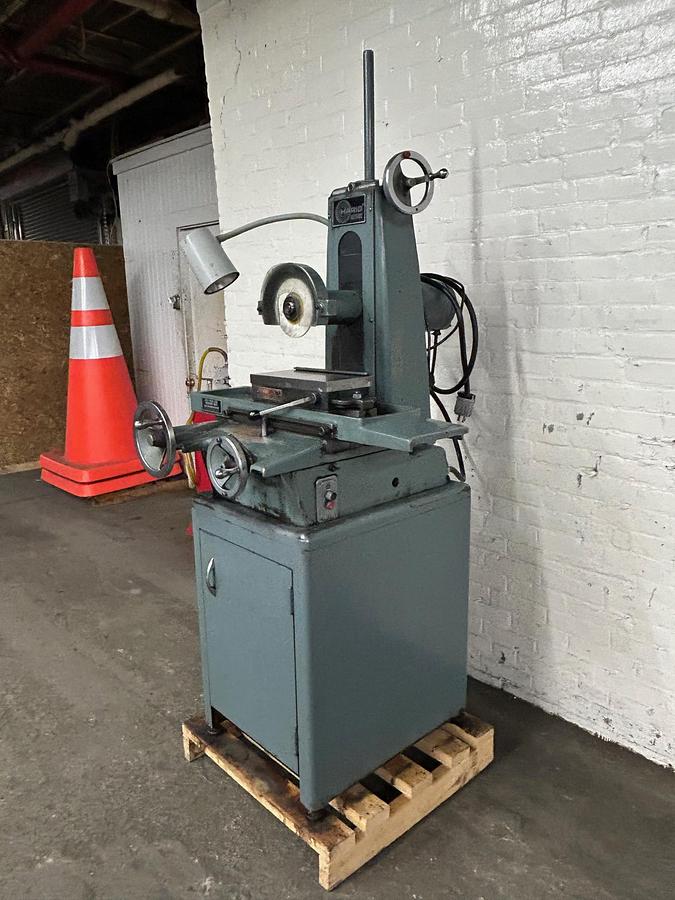

Harig Super 612 Hand Operated 6" x 12" Surface Grinder, Model #612

Harig Super 612 Hand Operated 6" x 12" Surface Grinder, Model #612

Location:Pawtucket, RI

or
Call 1-800-619-GOLD

Description

EQUIPPED WITH:

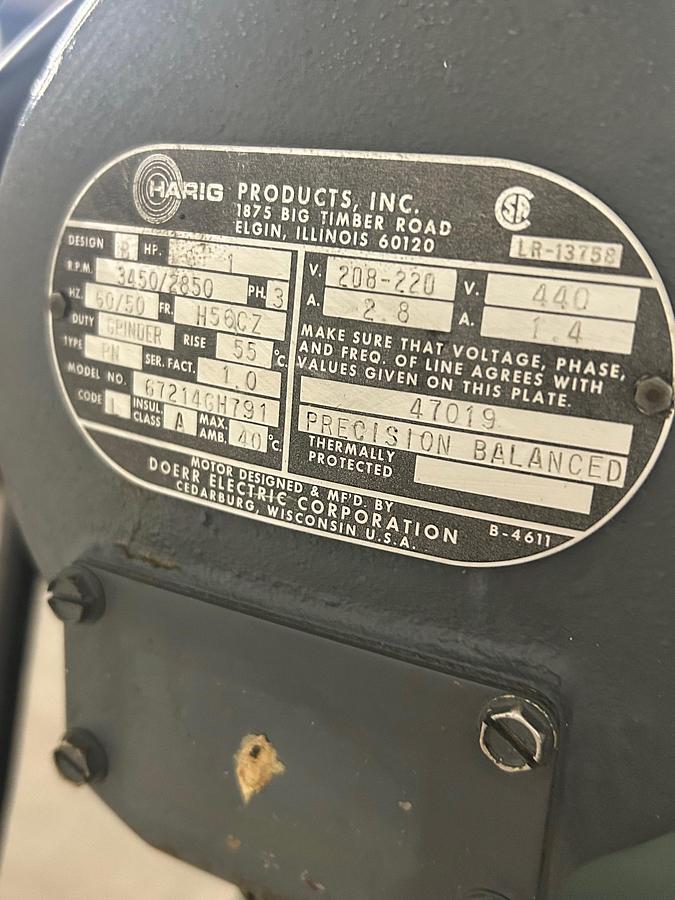

  • 1-1/2 HP motor
  • Direct drive spindle
  • High Speed Steel Hardened Ways

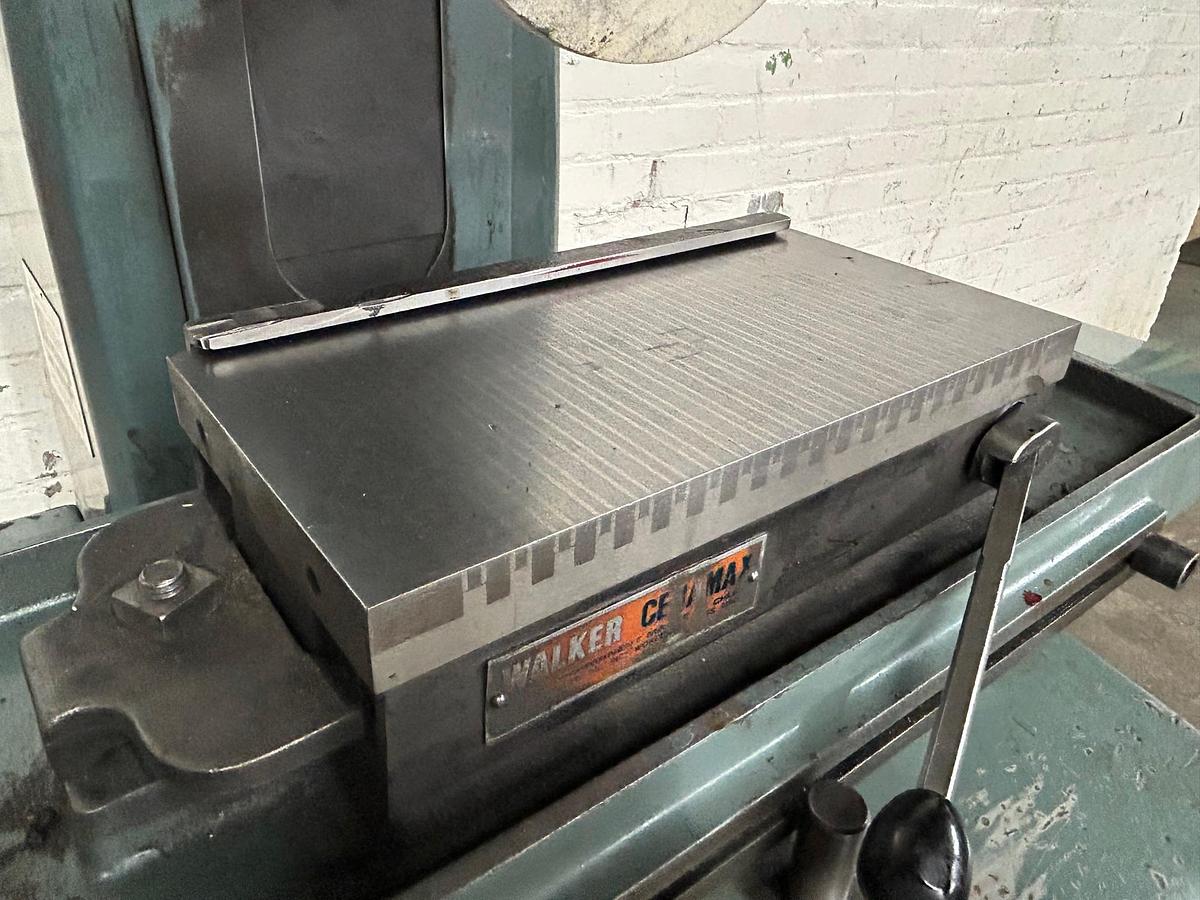

  • O.S. Walker 6" x 12" Ceramax fine pitch permanent magnetic chuck
Show All

Specifications

ManufacturerHarig
Model612
ConditionUsed
Stock Number779470
Electrical Requirements220V/3PH/60HZ
Work Capacity6" x 12"
Longitudinal table travel12-1/2"
Cross table travel7-1/4"
Vertical working height (7" wheel)12-1/2"
Platen working area6" x 12"
Grinding wheel7" x 1/2" x 1-1/4"
Elevator hand wheel graduation.0005"
Cross feed hand wheel graduation.001"
Spindle speed3450 RPM
Overall dimensions21" x 25" x 74" high
Estimated weight640 lbs.
