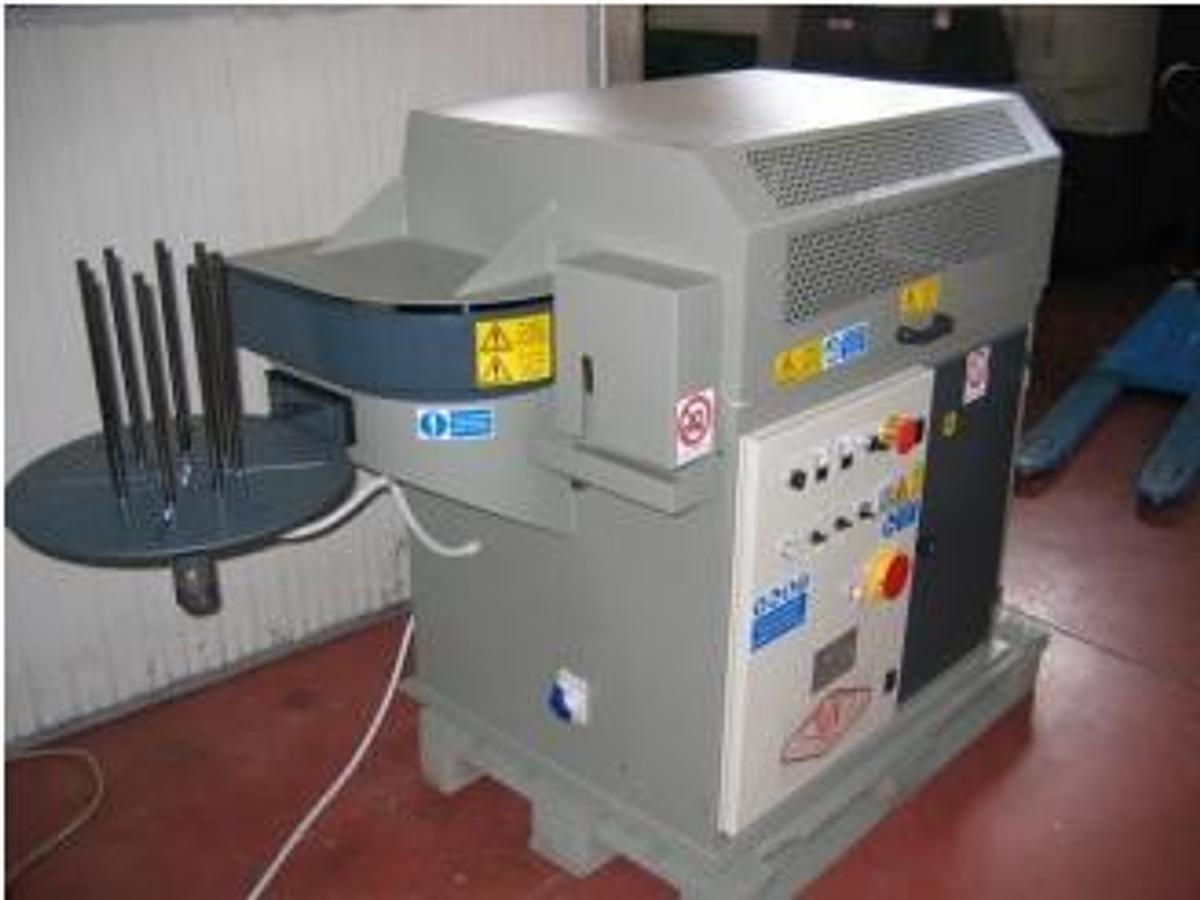

NEW TVN Model T2/4 Two Passages Bull Block Wire Drawing Machine

The machine is for the smoothing of the thread of big dimension that coming out of the rolling mill or from the continuous casting furnace. This allows the thread to obtain the best and finest diameter in order to fit into the other multiple wire-drawing machines.

This machine is for the tube drawing to cap floating. The machine has two speeds, can also be activated through foot-pedal, it has a forced lubrication on the plate and a safety micro-switch on the reel. Diameter drag coiler 400mm.

Revolving protection on the work top with safety micro switch. Pressure roller in plastic material for containing the thread, with pneumatically operated. Thread input max 8mm on silver, 7mm gold.

Reduction of section 10/15%.

Wire-drawing speed MT/1’ 30/15.

Construction standards in accordance to “CE” with respective documentation.

Installed horse power 4,8 KW

Dimensions: 2000mm x 900mm x 1300mm

Approximate Weight: 600kg
