New GoldPro® Durston DRM W130 Wire 130mm Rolling Mill With Extensions

New GoldPro® Durston DRM W130 Wire 130mm Rolling Mill With Extensions
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description

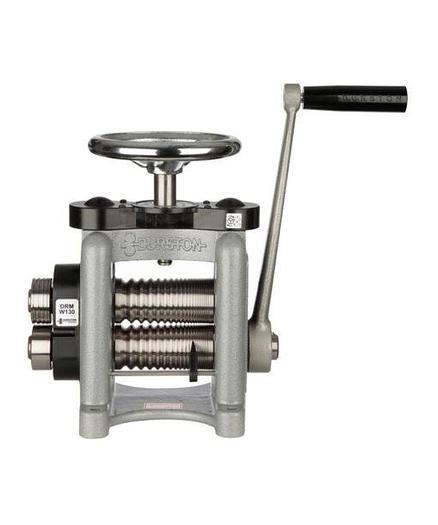

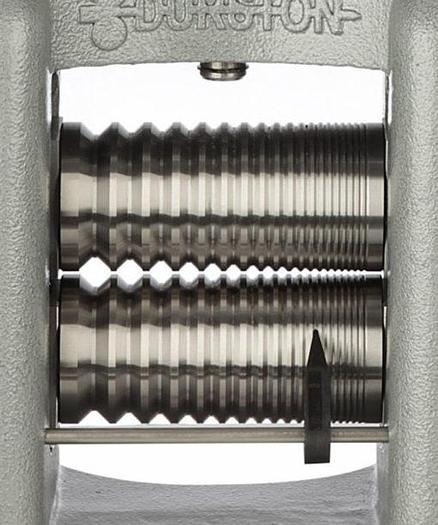

The DRM W130 E Rolling Mill is a top quality wire rolling mill with the benefit of side extensions. The rolling mills are dedicated to wire rolling and so do not have a flat milling area for sheet rolling. Durston Mills are constructed from cast iron for optimal strength and rigidity with a reassuring weight to support a lifetime of use and giving a better-rolled product. The rolls are specially induction hardened to 64 RC, the main barrel to a depth of 6mm ensuring your rolls last a lifetime. The bearings are self-lubricating and wholly maintenance-free and are specifically designed to produce the best possible rolled finish. The rolls include 11 square wire grooves ranging from 10mm to 1 mm. Behind the cover, you’ll find two specially formed gears to make rolling even smoother. A side roller incorporates four shallow half rounds giving your rolling mill even more versatility. Safety features include a protective guard around the top gears. The DRM W130 E Rolling Mill is part of Durston’s award-winning range of products available since 1961.
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $1,418.00 USD
Note: Price Subject to Change Without Notice
Specifications
| Condition | New |
| Stock Number | DRM-W130 |
| WEIGHT | 39.3 kg |
| PRODUCT WEIGHT (KG) | 36.8KG |
| PRODUCT LENGTH (MM) | 335 |
| PRODUCT WIDTH (MM) | 220 |
| PRODUCT HEIGHT (MM) | 365 |
| GEARBOX | 5-to-1 gearbox |
| NUMBER OF GROOVES | 11 |
| MAX. SHEET THICKNESS (MM) | 6 |
| ROLLER TYPE | Wire |

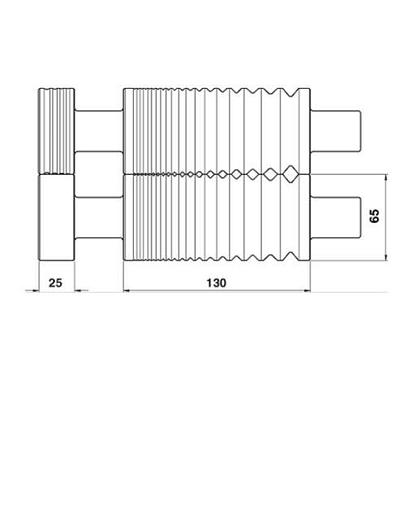

| ROLLER DIAMETER (MM) | 60 |
| ROLLER LENGTH (MM) | 130 |
| SIDE EXTENSIONS | 4, 3, 2, 1.5mm |
| MAX. WIRE CAPACITY (MM) | 8mm |
