New GOLDPRO® IECO CONTINUOUS CASTING MACHINE 10KG – FOR WIRE & PLATE

New GOLDPRO® IECO CONTINUOUS CASTING MACHINE 10KG – FOR WIRE & PLATE
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description
Vertical induction furnace for continuous melting and casting of precious-metal alloy sections in wire, tube and plate form. Equipped with processor for setting and storing 99 automatic melting programs, with display and print-out of all parameters set, with possibility of switching-over for manual melting. Equipped with one single-inductor working station and melting head integrated in the structure of the furnace. Circular die cooling. Medium frequency generator of new concept.
Furnace suitable for:

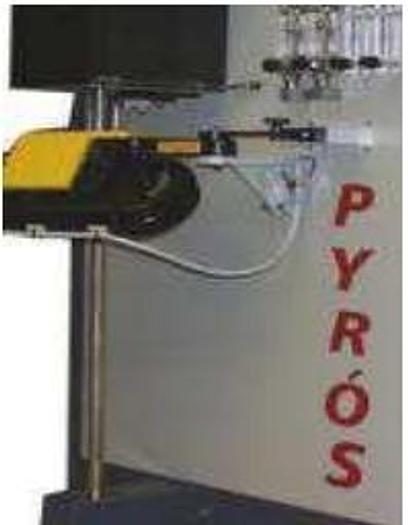

This can be equipped with an option mounted Shear, which is available for an additional cost.
Machine Priced for 39.370,00 EURO
Ex-Factory, Italy
*Prices subject to change without notice
Specifications
| Condition | New |
| Stock Number | Z50_310MI |
| Power Supply | 230/400V 50/60Hz/three phases |
| Power of Furnace | 10 kW |
| Working frequency of the converter | 5 ÷ 10 Khz |
| Usefull size of the crucible (18kt gold) | 8,1 kg |
| Max working temperature | 1200 Degrees C |
| Water consumption (T° 15 to 30°c – Pressure 2– 3 bar) | 20 l/min |
| Gas for protection | Nitrogen or argon |
| Gas consumption (0,5 – 1 bar) | 20 l/min |
| Compressed air | 4-8 bar |
| Dimensions | 890x600 x 1660 mm. |
| Weight | 270kg |
| Wire | Min. 5 mm - Max. 4x10 mm |
| Plate | Max. 70x6 mm |
