7306-100 FASTI-TYPE AND FASTI RCM HAND MADE ROPE CHAIN BY MACHINE MANUFACTURING CELL
7306-100 FASTI-TYPE AND FASTI RCM HAND MADE ROPE CHAIN BY MACHINE MANUFACTURING CELL
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Hand Made Rope Chain Finished Product:

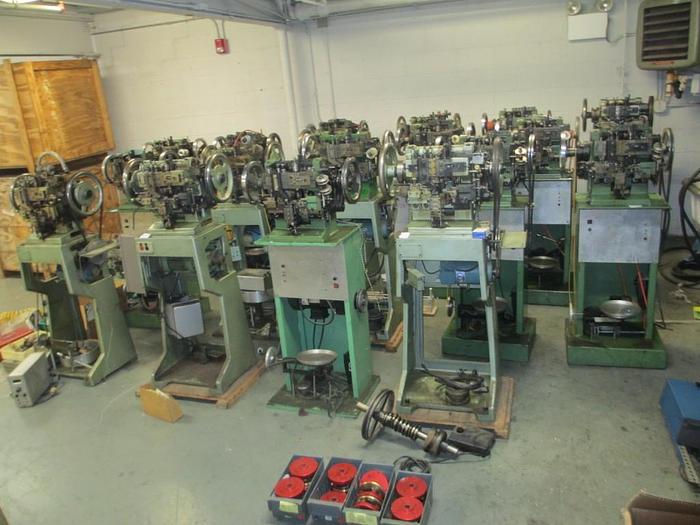

18 Chain Machines Total in Package
11 – FASTI TYPE AKS “RCM” FRENCH ROPE CHAIN MAKING MACHINES
Tooling Wire Sizes

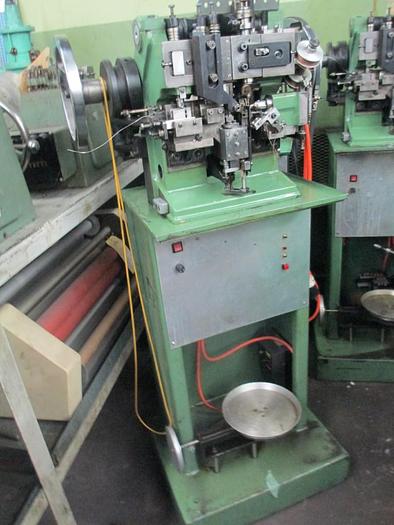

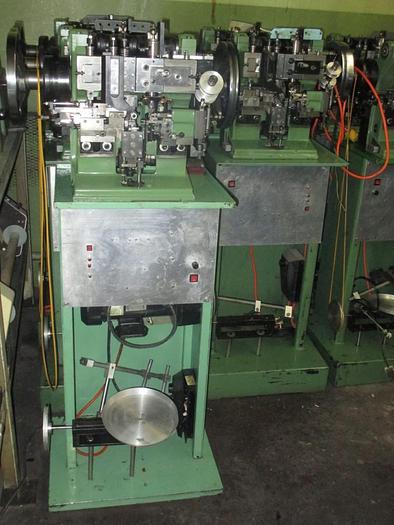

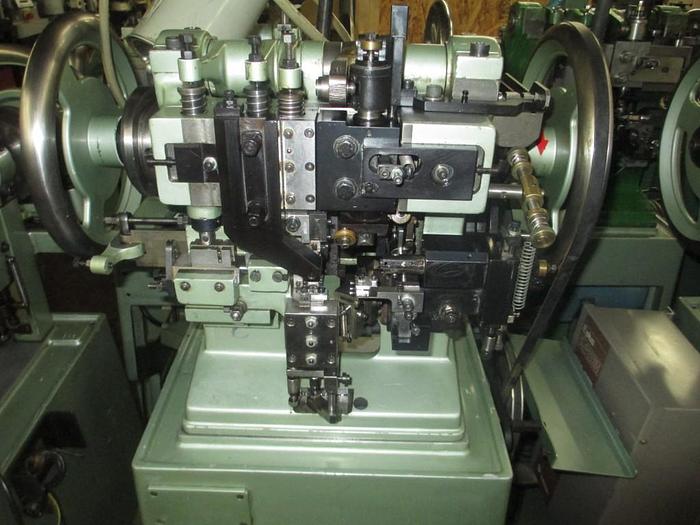

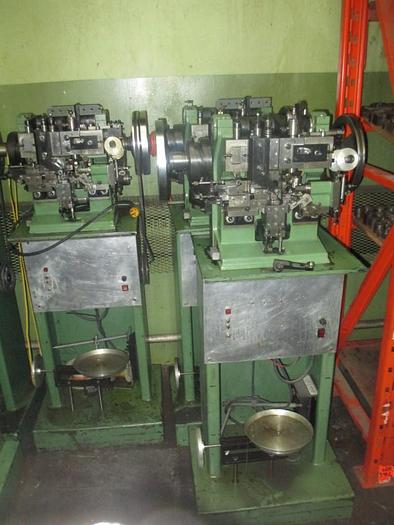

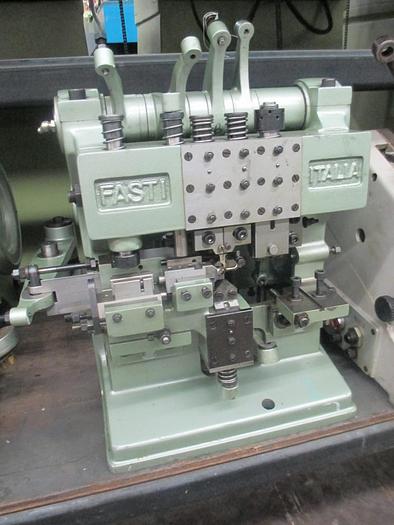

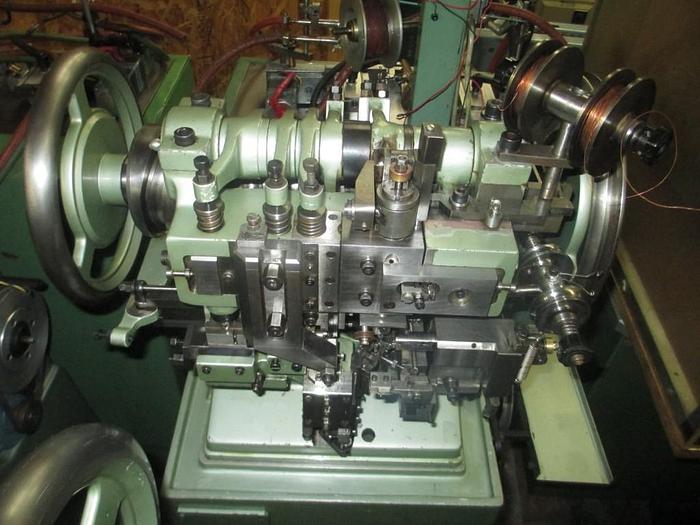

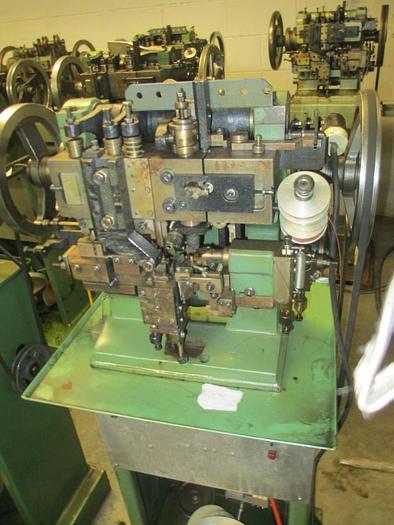

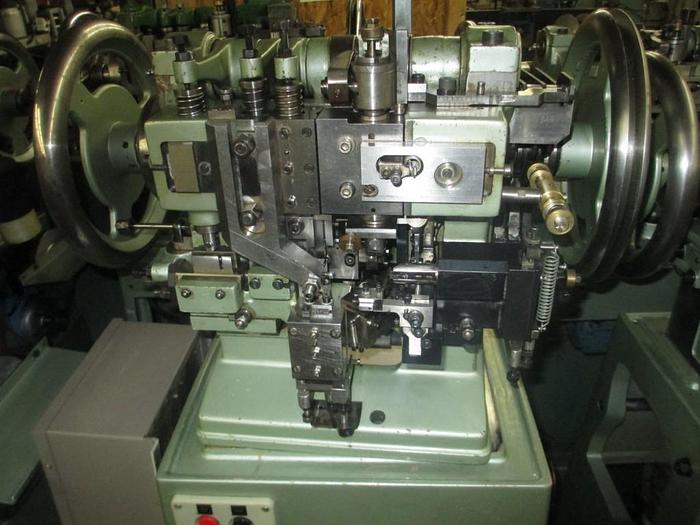

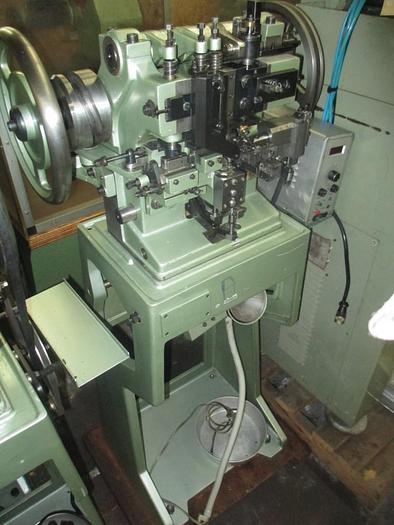

7- FASTI MODEL RCM ROPE CHAIN MACHINES
1 Machine Less Speed Control DC Motor
**Tooling INCOMPLETE for 5 OF THESE MACHINES**
One Machine is Less Fasti Stand and is for Parts Only

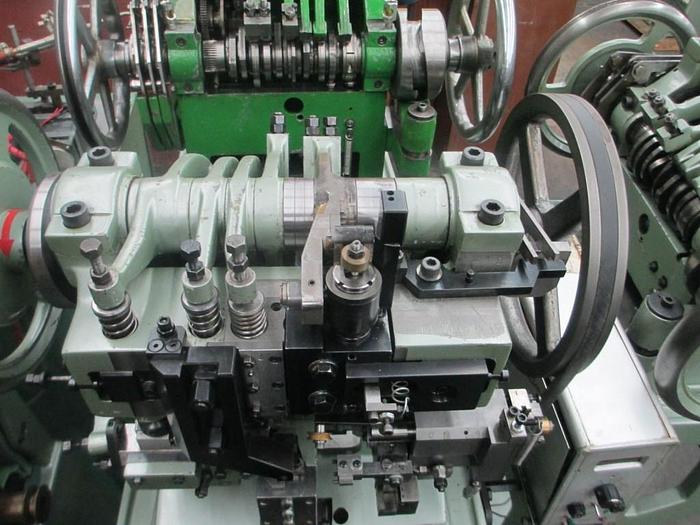

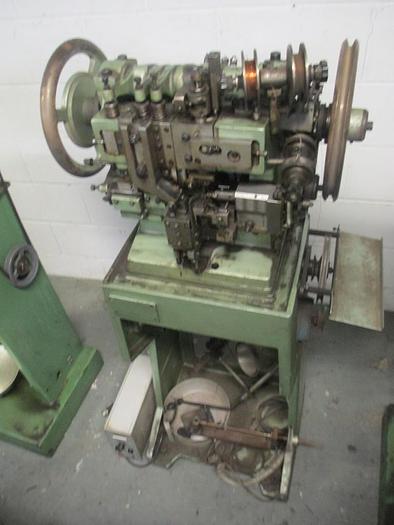

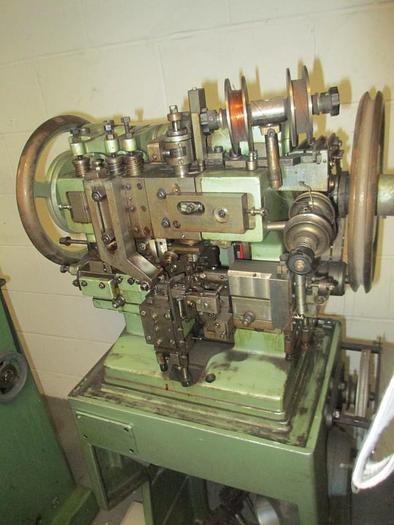

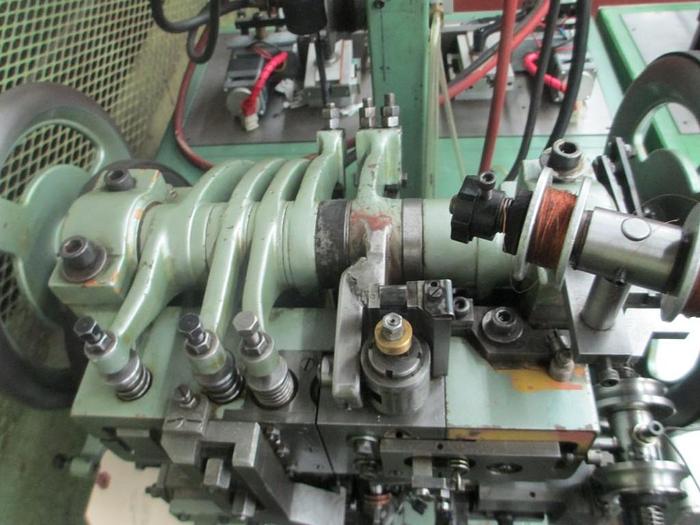

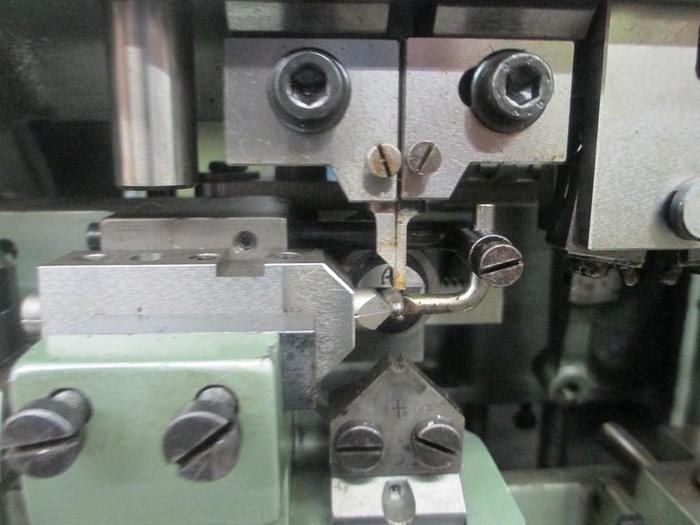

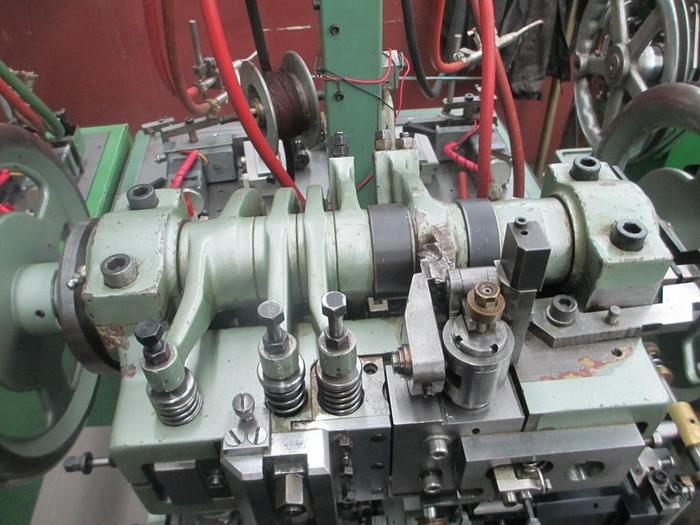

NOTE: Each Fasti Model RCM Rope Chain Machine has a modified/welded arm as photographed below. This does not affect the operation of the machine:
Hand Made Rope Chain By Machine
Fold Solderable Rope Chain
Variable Speed Operation
Machines are Equipped With:
Factory Floor Stands
Turntables

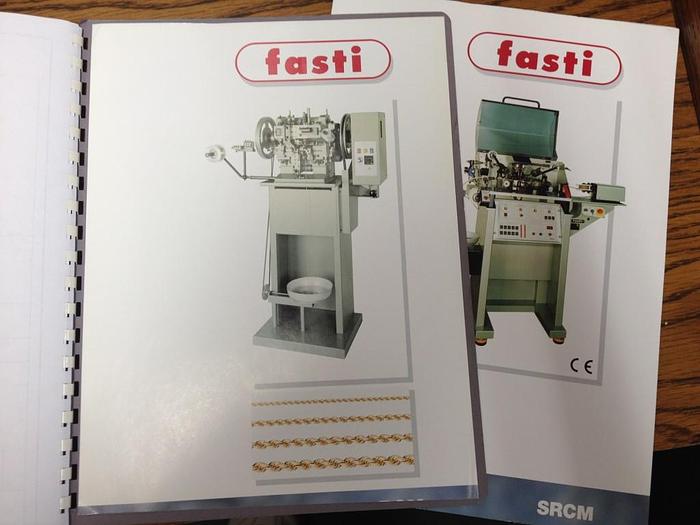

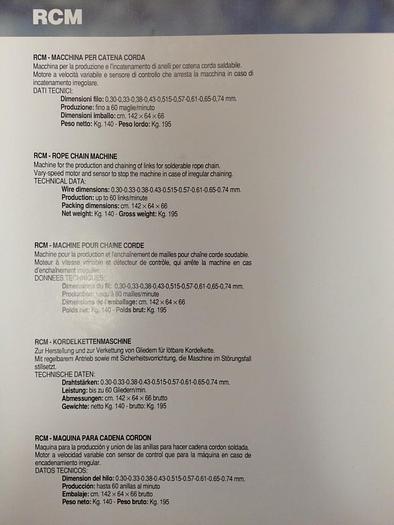

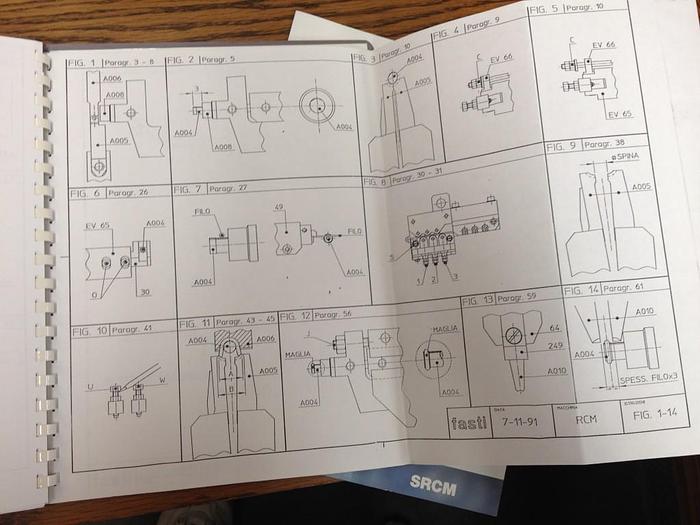

Factory Operation & Parts Manual
Note: New tooling is available for approximately $5,000 per set, in carbide from 0,30 mm to 0,74 mm wire dimensions
REPLACEMENT COST FOR A NEW FASTI “RCM” MACHINE IS $96,000 USD EACH!

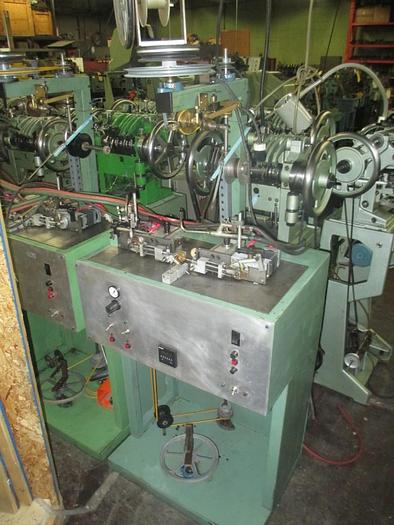

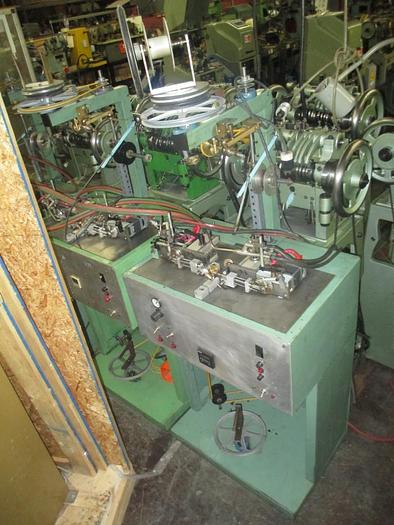

3- Fasti Type AKS “SRCM” Automatic Soldering Machines for Hand Made Rope Chain
Machines are Equipped with:
Factory Stands
PRODUCTION UP TO 120 LINKS PER MINUTE OF ROPE CHAIN MADE WITH WIRE DIMENSIONS 0,30MM TO 0,74MM. MACHINE USED FOR CONTINUOUSLY SOLDERING RIGHT AND LEFT ROPE CHAIN, WITH MICRO FLAMES AND THE DEPOSIT OF MATERIAL, ELECTRONICALLY CONTROLLED
*NOTE: COMPRESSED AIR IS REQUIRED
A diamond faceting machine for rope chain is also available:
Equipped with extra diamond toolholders for rope chain faceting
Priced for $8500.

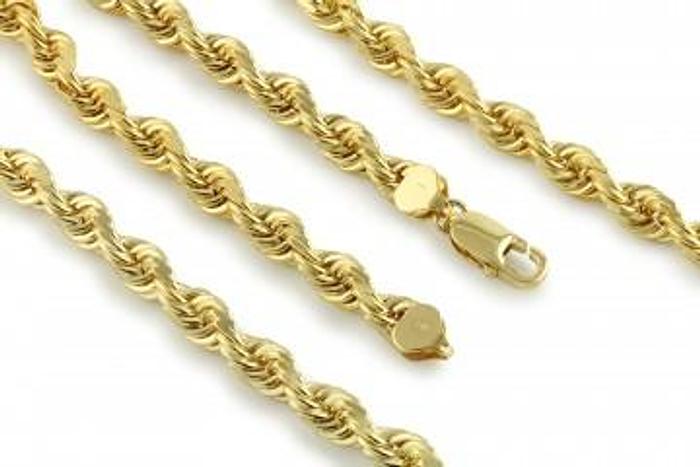

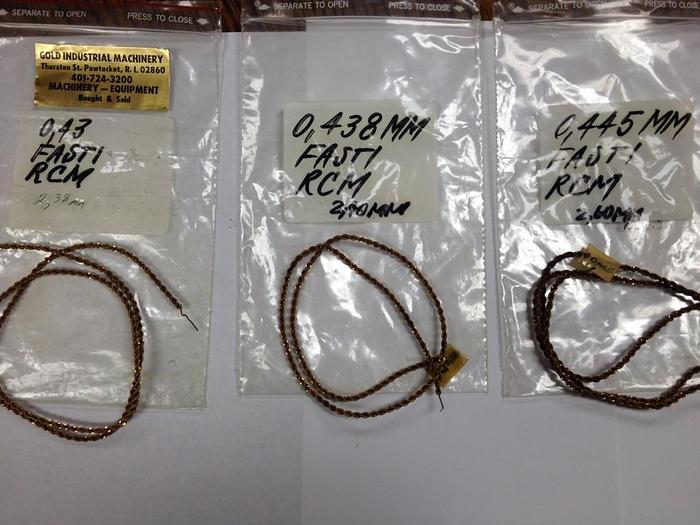

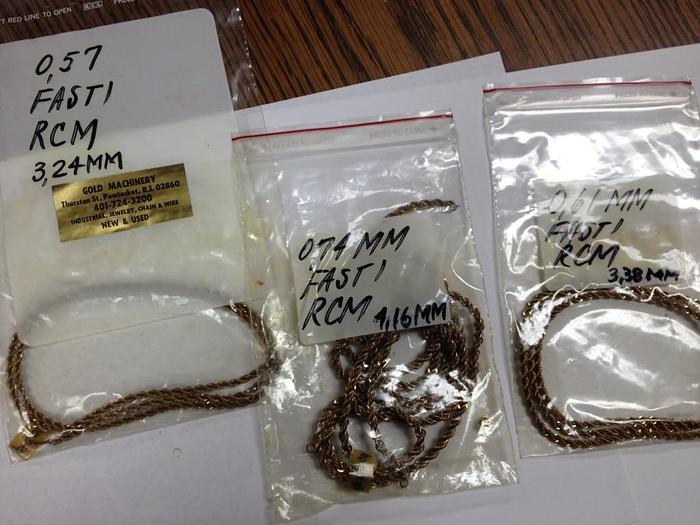

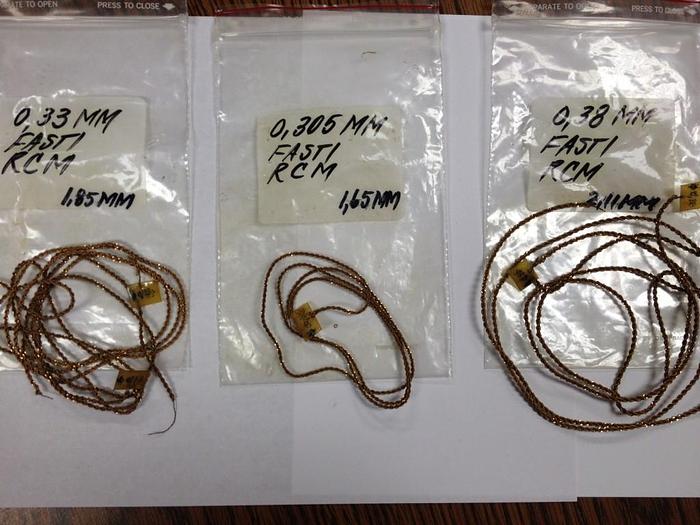

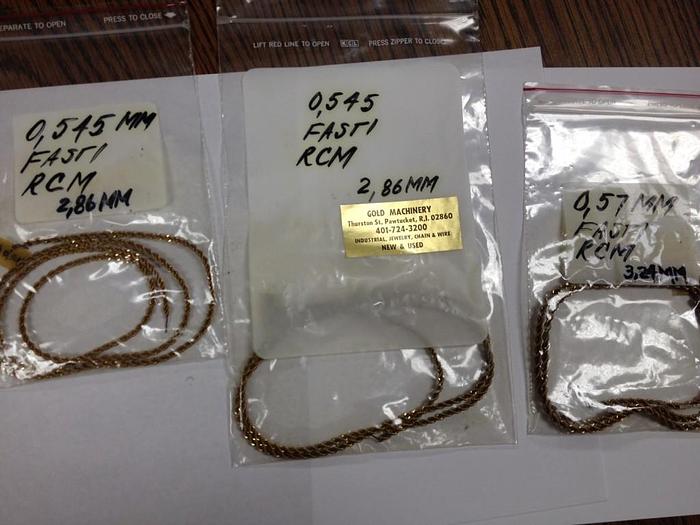

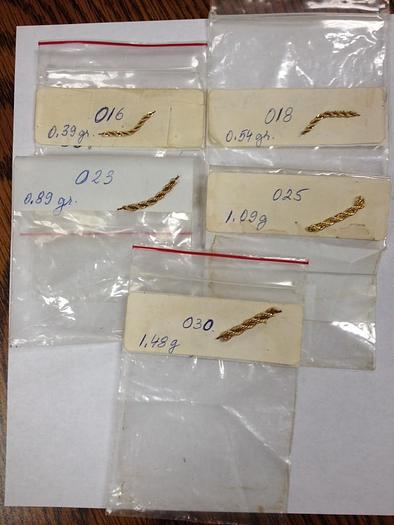

SAMPLES OF CHAINS PRODUCED:

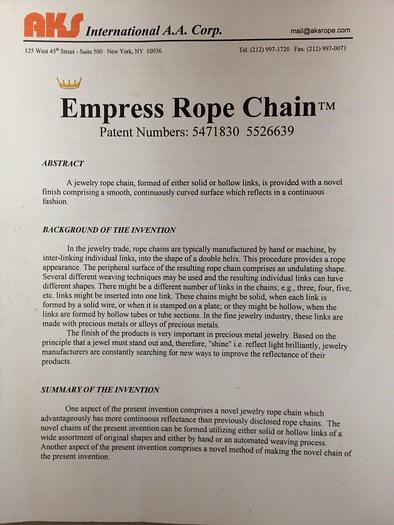

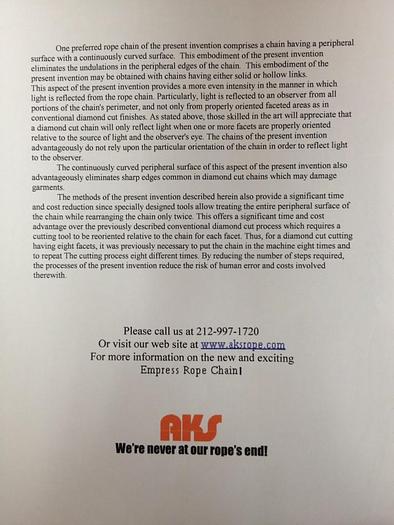

3 US Patents for Diamond Cut & Hollow Rope Chain
PRICE FOR MANUFACTURING CELL SYSTEM AS STATED ABOVE:
$99,000.00 USD!
Specifications
Condition | Used |
110 Volts / 1 Phase / 50-60 Hz, Year of Mfg | 1998 |
3 Machines | 0,40 MM (.016″) Wire |
2 Machines | 0,56 MM (.022″) Wire |
1 Machine | No Tooling |
6 – FASTI TYPE “RCM” – 110 Volts / 1 Phase / 50-60 Hz, Year of Mfg | 1998 |
1 – FASTI TYPE “RCM” – 220 Volts / 3 Phase / 60 Hz, Year of Mfg | 1998 |
2 Machines have Tooling Wire Size | 0,48 MM (.019″) Wire |
Production | Up to 60 Links Per Minute |
Estimated Machine Dimensions | 36″ x 24″ x 67″ High |
Estimated Machine Weights | 200 LBS |
F.O.B | Ex-Works, Gold Machinery |
