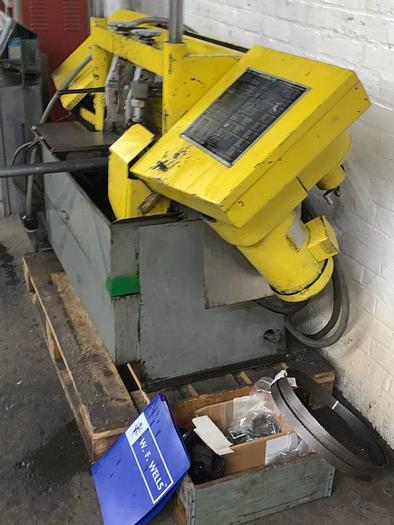

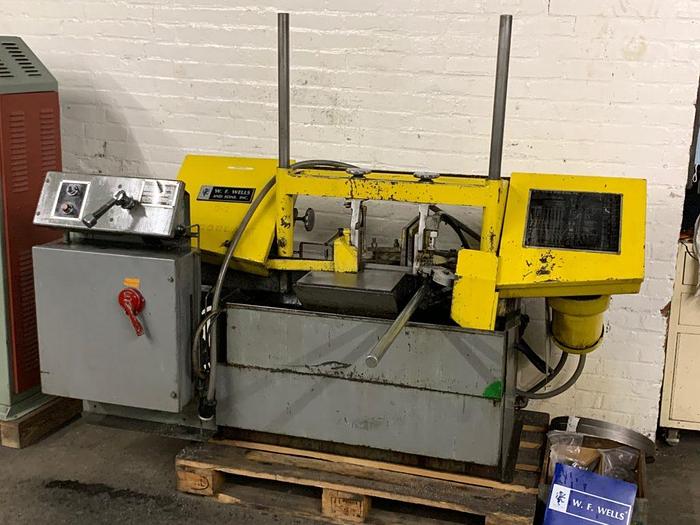

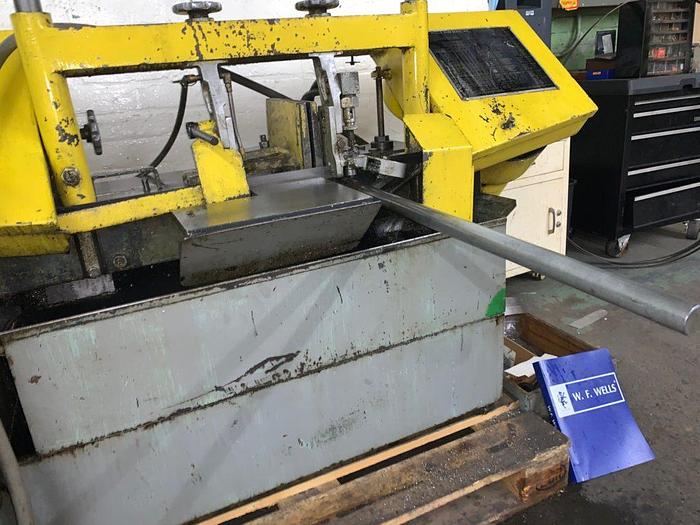

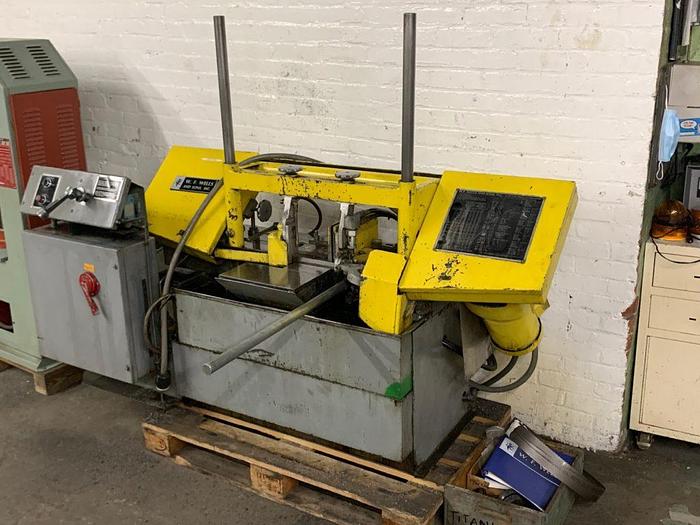

4466-600 W.F. Wells 9″ x 18″ W-9 Double Column Horizontal Band Saw / Series 1- Hydraulic Control
4466-600 W.F. Wells 9″ x 18″ W-9 Double Column Horizontal Band Saw / Series 1- Hydraulic Control
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description
Year of mfg 1979
S/N 793140
Equipped With:

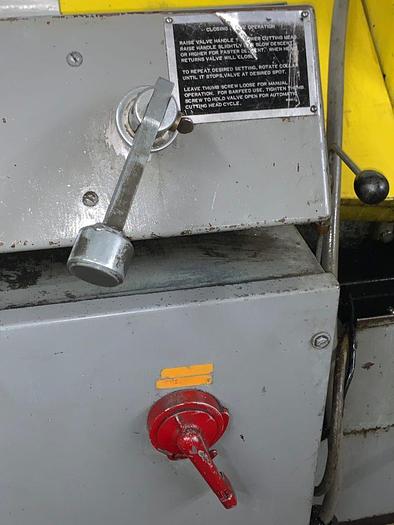

Series 1 Hydraulic control, 3rd Edition
New Vari speed belt / bearings and brushes

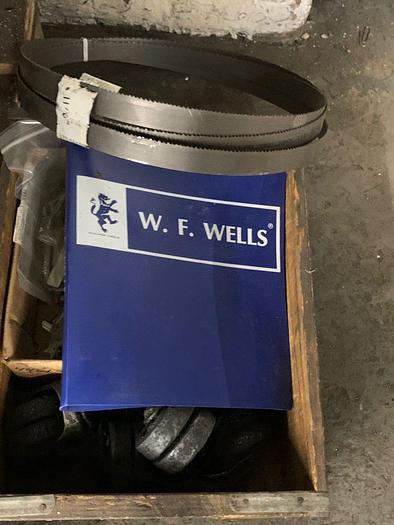

Original Operator Manual and Parts List
Heavy duty Caster wheels

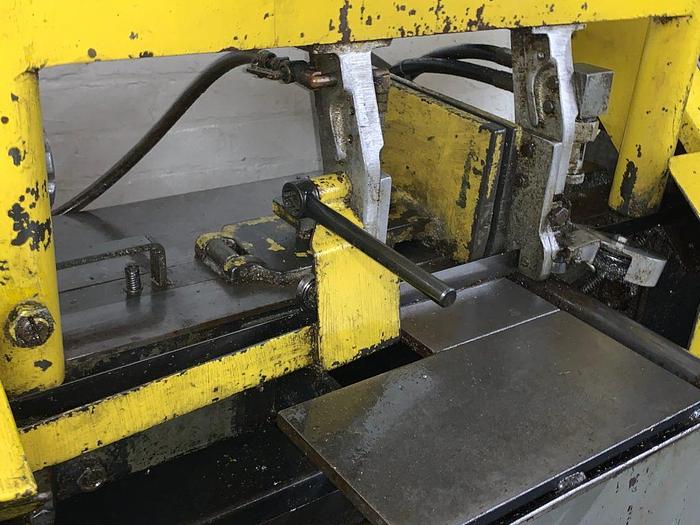

45° Swiveling Vise
Chip Pan
Stock Stop bar assembly
Note: New Hydraulic Seals installed on 6/18/2017
Specifications
| Condition | Used |
| Stock Number | 4466-600 |
| Capacity @ 90° | Rectangular 9” H x 18” W, Round 9” |
| Weight Capacity | 2,000 lbs |

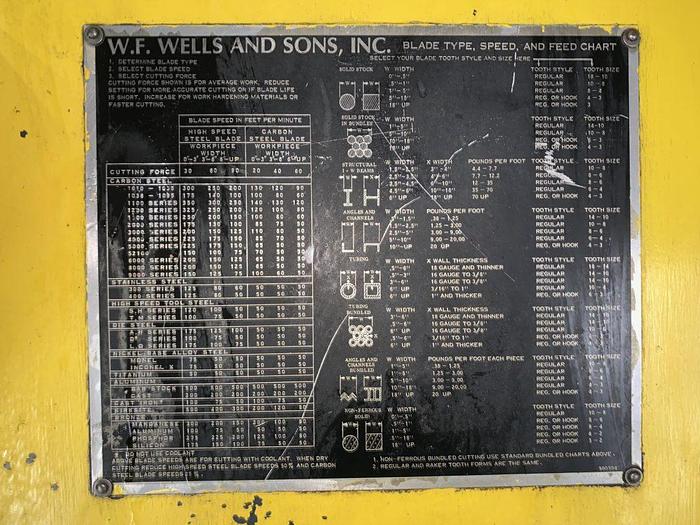

| Blade Speed Range | 70-380 SFPM |
| Blade Width | 1” |
| Blade Length | 11’6” |
| Blade Guides | Carbide with Backup Rollers |
| Blade Tension | Manual |
| Bandwheel Size | 14½” |
| Vise | Manual Blade Powered Cleaning Brush |
| Sawing Force | 30-120 lbs |
| Saw Frame to Raise | 16” in 18 Seconds |
| Cycle Time to Lower | 16” in 12 Seconds |

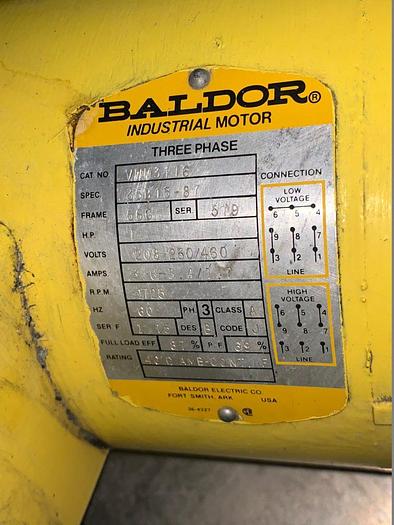

| Blade Drive Motor1 | HP, 1 ph |
| Work Height | 26” |
| Coolant Capacity | 10 Gallons |
| Shipping Weight | 990 lbs |
| Machine Dimensions | 43" L x 81" W x 63" H |
