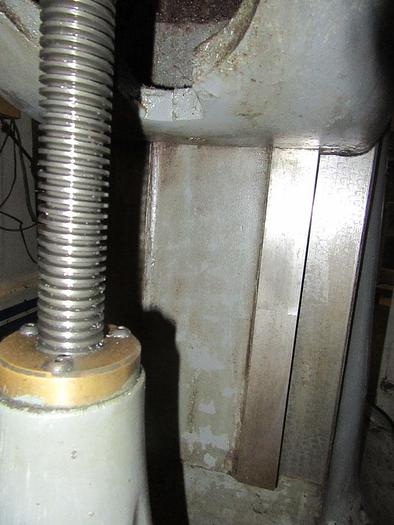

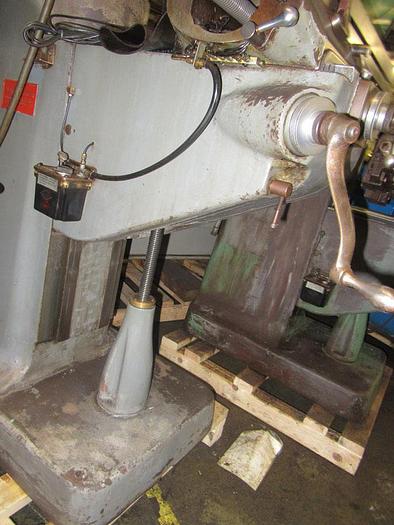

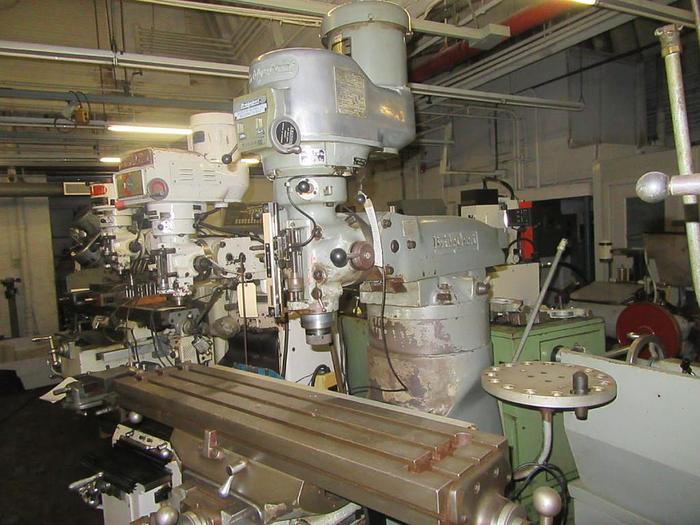

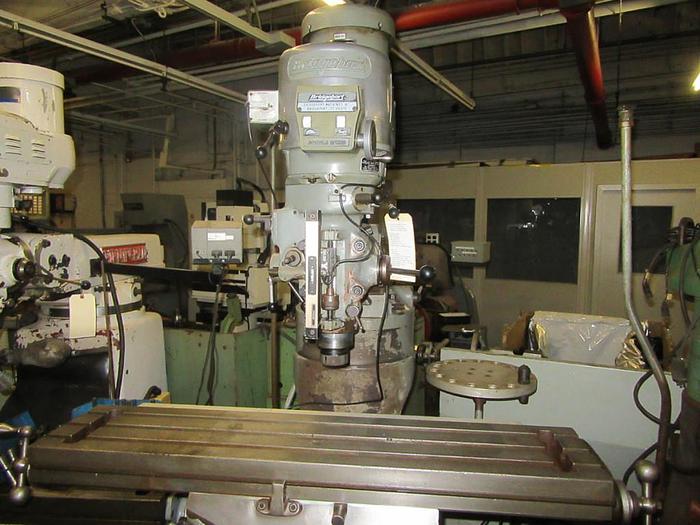

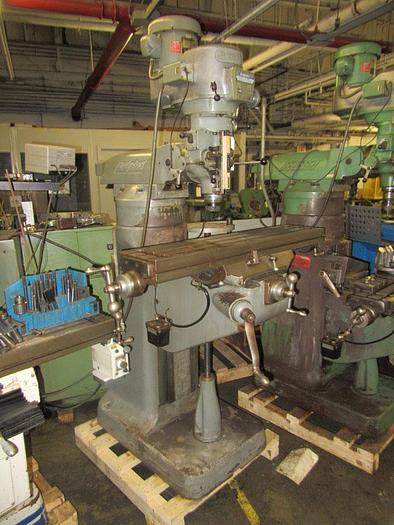

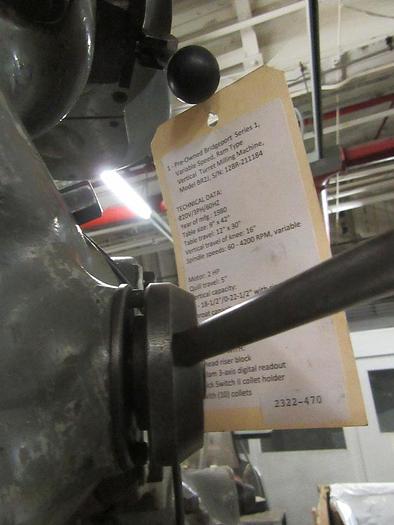

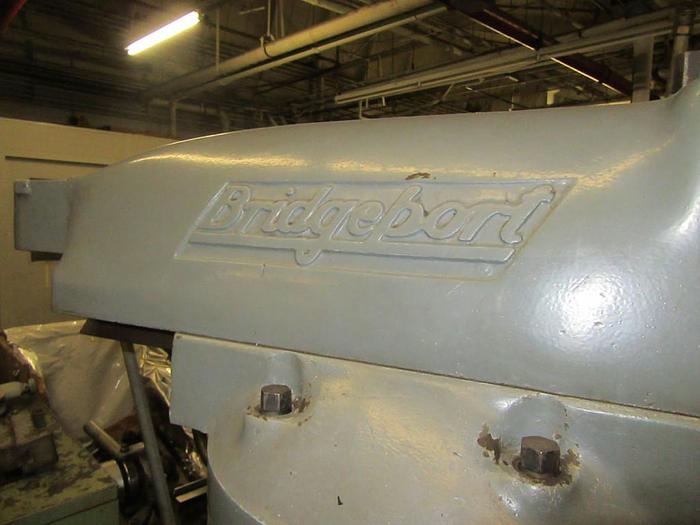

2322-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
2322-470 Bridgeport Series 1, Variable Speed, 2HP Ram Type Vertical Turret Milling Machine, Model BR2J
Location:Pawtucket, RI
or
Call 1-800-619-GOLD
Description
220V/3PH/60HZ
Equipped With:
4" head riser block
Quick Switch II collet holder with (10) collets
One shot lubrication system
Specifications
| Year | 1980 |
| Condition | Used |

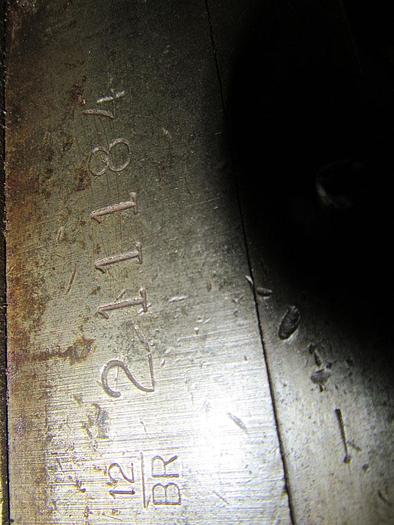

| Serial Number | 12BR211184 |
| Stock Number | 2322-470 |
| Table size | 9" x 42" |
| Table travel | 12" x 30" |
| Vertical travel of knee | 16" |
| Spindle speeds | 60 - 4200 RPM, variable |
| Motor | 2 HP |
| Quill travel | 5" |
| Vertical capacity | 0 - 18-1/2"/0-22-1/2" with riser block |
| Throat capacity | 6-1/4" - 18-3/4" |
| Maximum work piece weight | 300 lbs. |
| Overall dimensions | 76" x 63" x 82" high |
| Estimated weight | 2180 lbs |
